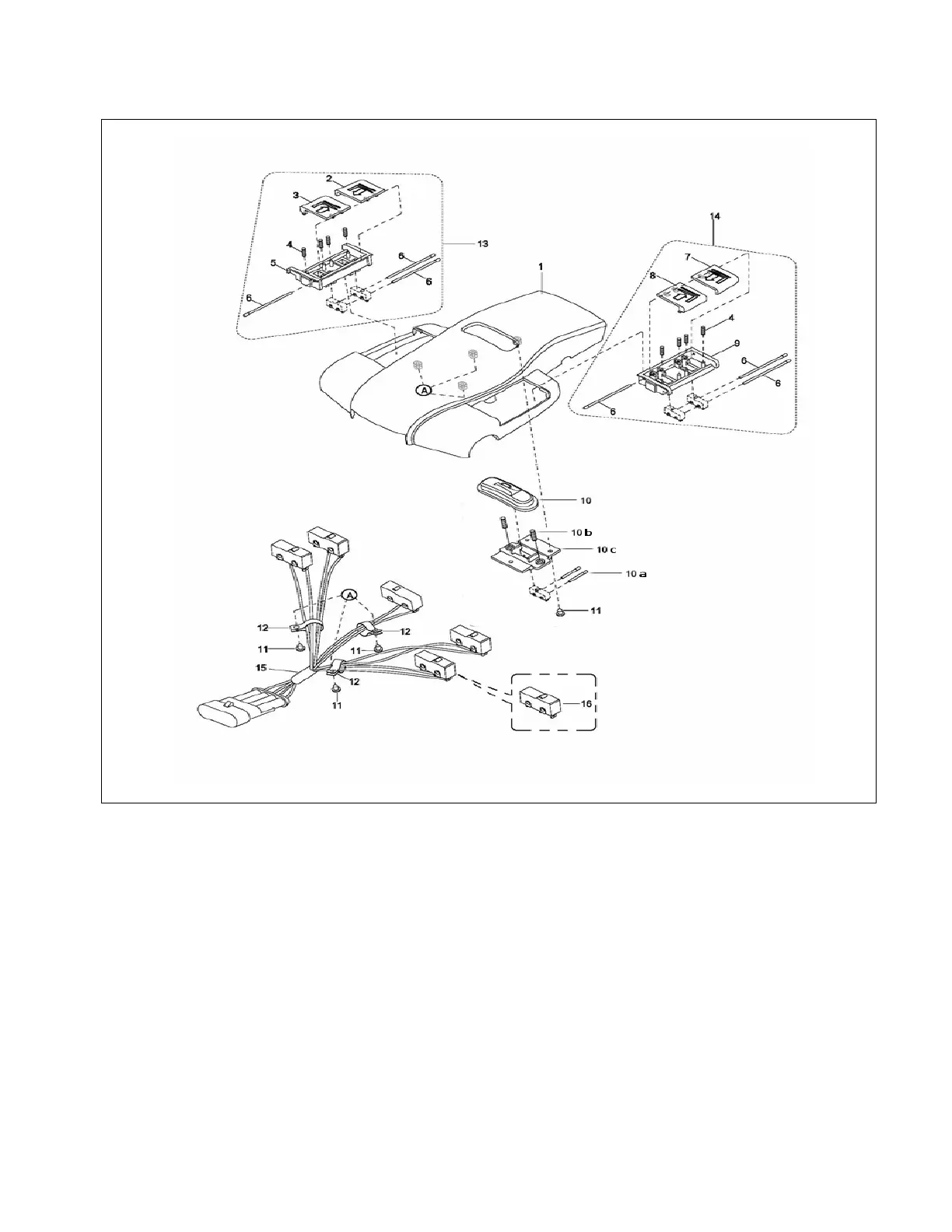

Figure 5-4 Cap Assembly
5-1.8. Lift and Lower Switch Replacement.
1. Remove the cap assembly as described in para-
graph 5-1.3.
2. Remove switch assembly (13 or 14, Figure 5-3)
from the cap (1)
3. Remove pin (6) securing buttons (2,3 or 7,8) to
bracket (5 or 6) and remove the buttons.
4. Remove two pins (6), two switches and four
springs (4) from bracket (5).
5. Position switches and four springs (4) in bracket
(5 or 6) and secure with two pins (6).
6. Position switch assembly (13 or 14, Figure 5-4) in
cover (1) and secure with pin (6).
7. Install the cap assembly as described in para-
graph 5-1.4.
