BL-E30-0515 - 03-01-2018 9-3
6. Operate the lift and lower buttons to refill the
cylinder and lines with hydraulic oil.
7. Check level of hydraulic oil. Hydraulic oil must be
1 inch below opening. If required, add hydraulic
oil to bring to proper level. Use hydraulic oil listed
in Table 3-2
8. Install the compartment cover as described in
paragraph 5-2.

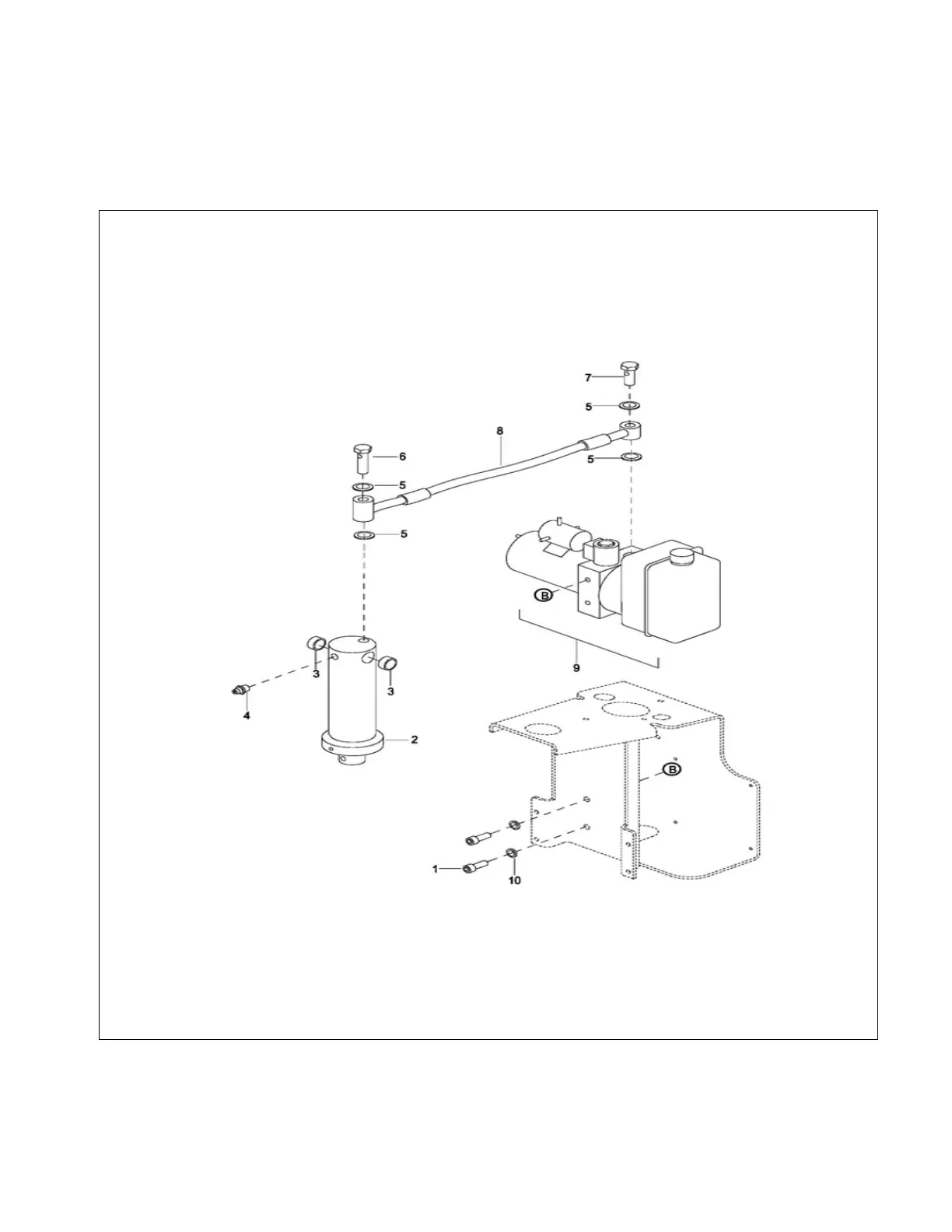

Figure 9-2 Hydraulic System
