FP (E1.1) 07/2017 page 12/90

2.1 Chamber overview

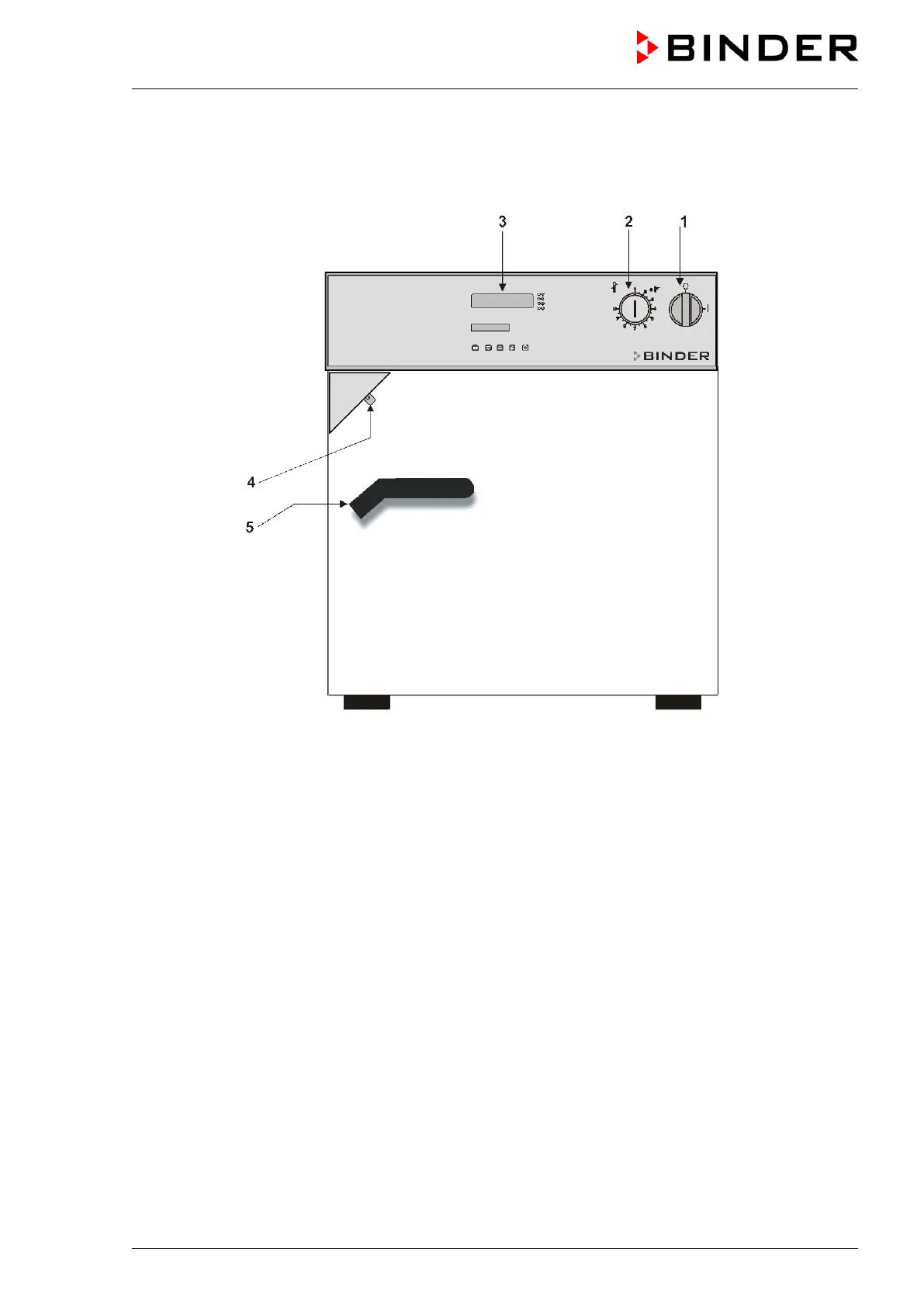

Figure 4: Drying and heating oven FP (example: model FP 53)

(1) Main power switch on/off

(2) Safety device class 2 or class 3.1 (option)

(3) Program controller RD3

(4) Lever for ventilation slide

(5) Door handle
