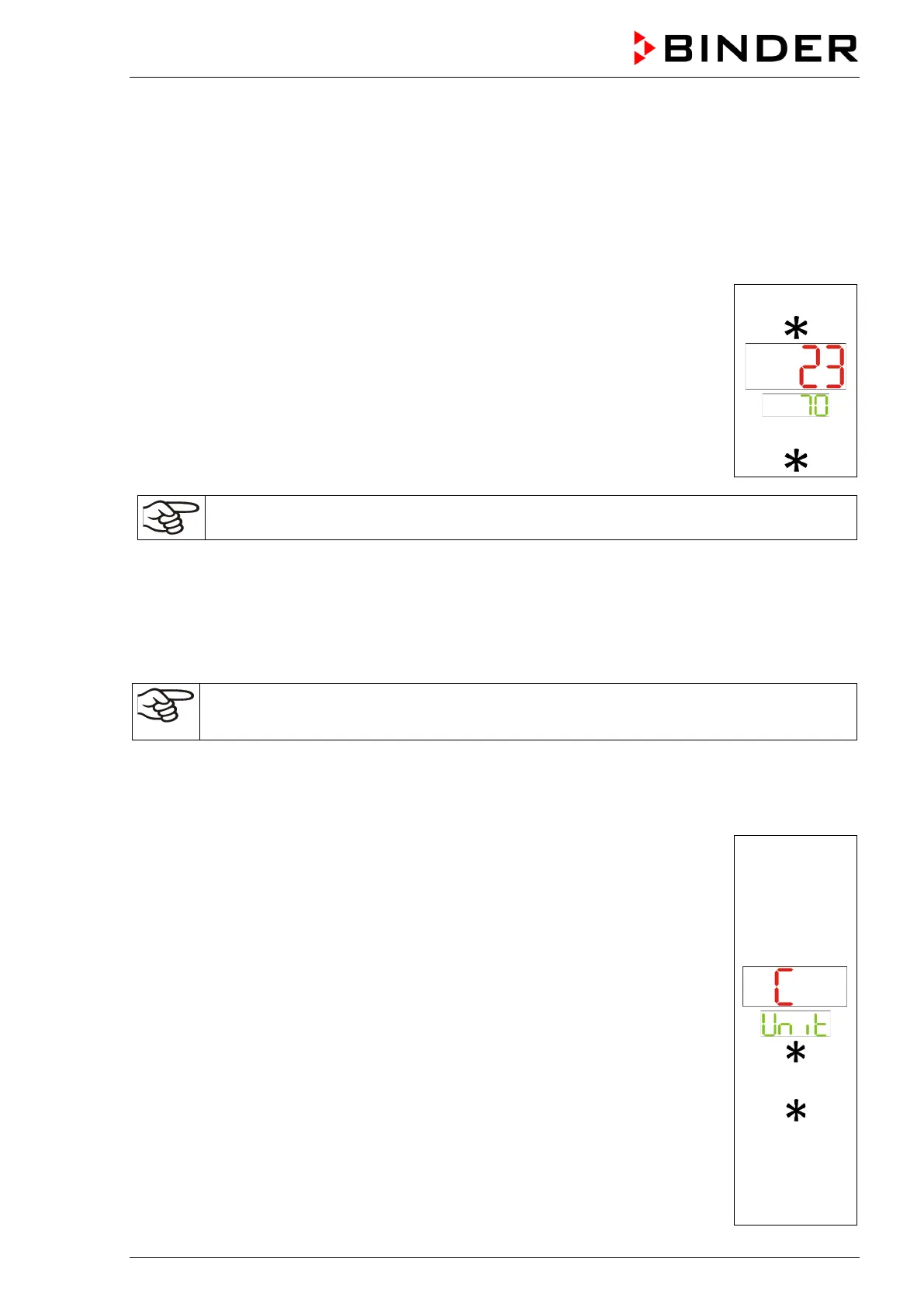

7. Temperature set -point entry
Normal display shows the temperature set-point (lower display) and the actual temperature value (upper
display).
BD-S / BD-S-UL: Setting with an accuracy of a tenth of a degree. Setting range: 0 °C / 31 °F up to 70 °C /
158 °F
ED-S / ED-S-UL, FD-S / FD-S-UL: Setting with an accuracy one degree. Setting range: 0 °C / 31 °F up to
250 °C / 482 °F
Setting:
In Normal display press the confirmation button.
The current temperature set-point (lower display) flashes.
Enter the desired temperature set-point with the arrow buttons and confirm with the
confirmation button.
The controller will now equilibrate to the new temperature set-point.
Example:
 or 
Check and/or adjust the safety controller following any changes of the set-point (chap. 8).
8. Selecting the temperature unit
You can set the temperature unit to degrees Celsius °C or degrees Fahrenheit °F.
If the unit is changed, all temperature values are converted accordingly.
C = degrees Celsius
F= degrees Fahrenheit
0 °C = 31°F
100 °C = 212°F
Conversion:
[Value in °F] = [Value in °C] ∗ 1,8 + 32
8.1 Setting the temperature unit
Setting:
In Normal display press the arrow-up button 3 times to access the “Unit“ setting
menu (temperature unit).
The „Unit“ menu is shown with the current temperature unit.
Press the confirmation button to activate the entry. The display “Unit” flashes.
Select the desired unit with the arrow buttons and confirm with the confirmation
button.
The new temperature unit is activated.
Press the arrow-down button 3 times to return to Normal display.
Example:



 or 



