1.4.4 Word message panel structure
Type / cause of hazard.
Possible consequences.
∅ Instruction how to avoid the hazard: prohibition.
Instruction how to avoid the hazard: mandatory action.
Observe all other notes and information not necessarily emphasized in the same way, in order to avoid
disruptions that could result in direct or indirect injury or property damage.
1.5 Localization / position of safety labels on the chamber
The following labels are located on the chamber:
Pictograms (Warning signs)
Hot surface
• ED-S / ED-S-UL, FD-S / FD-S-UL: outer cham-
ber door
• BD-S / BD-S-UL: on the glass door handle
• On the exhaust air flap
Read operating manual
• UL chamber: outer chamber door
ED-S 56, FD-S 56
ED-S-UL 56, FD-S-UL 56

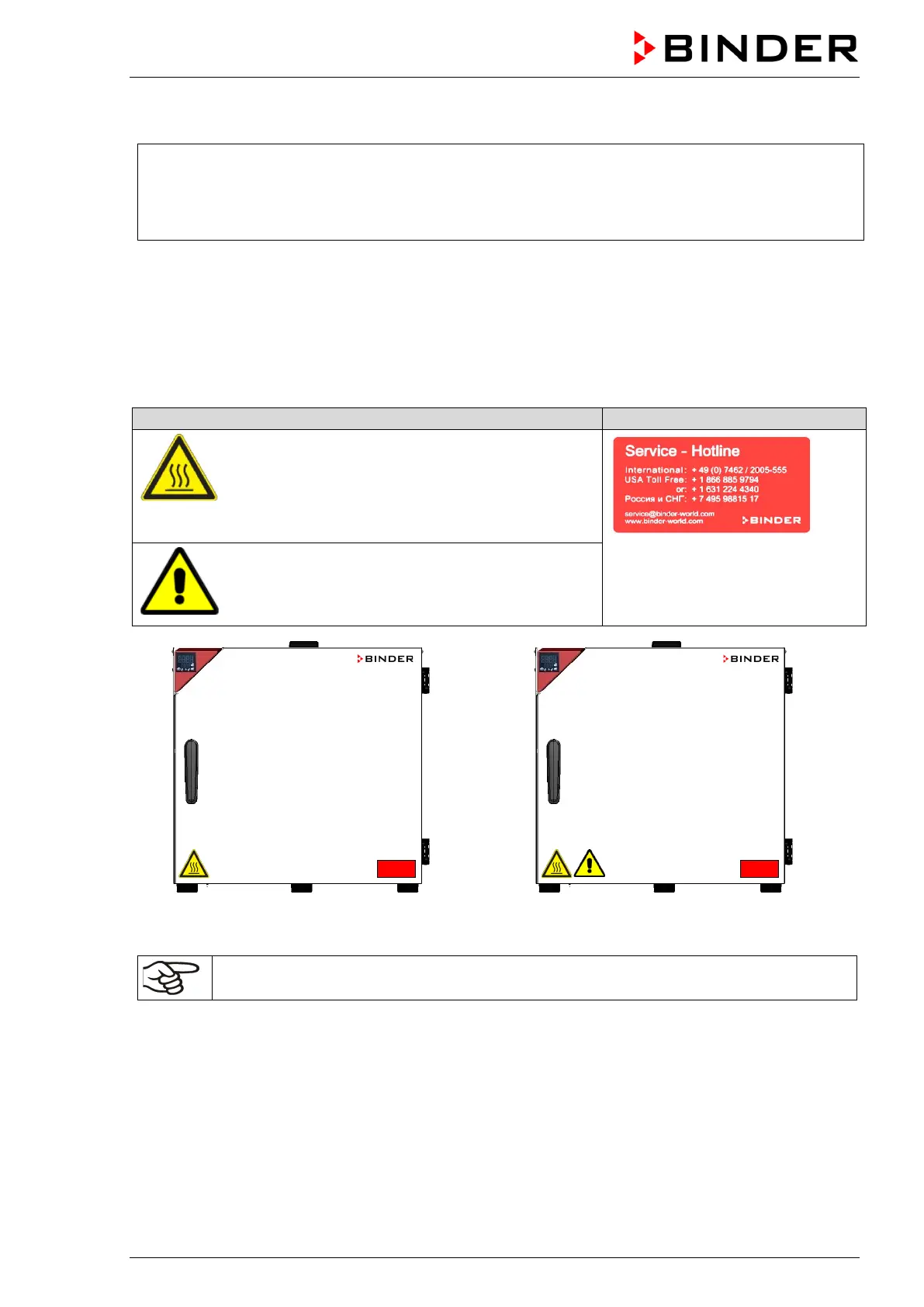

Figure 1: Position of labels on the chamber front (examples)
Keep safety labels complete and legible.
Replace safety labels that are no longer legible. Contact BINDER Service for these replacements.
