BIO-MED DEVICES CROSSVENT-3+ - B- Patient Circuit Connections

IV. SETUP AND OPERATING INSTRUCTIONS- cont.
25
2525
25
B
BB
B-
--
- PATIENT CIRCUIT CONNECTIONS
PATIENT CIRCUIT CONNECTIONS PATIENT CIRCUIT CONNECTIONS
PATIENT CIRCUIT CONNECTIONS
WARNING: A patient filter should always be used in the patient breathing circuit to
prevent cross contamination
WARNING: Do not re-use disposable breathing circuits.

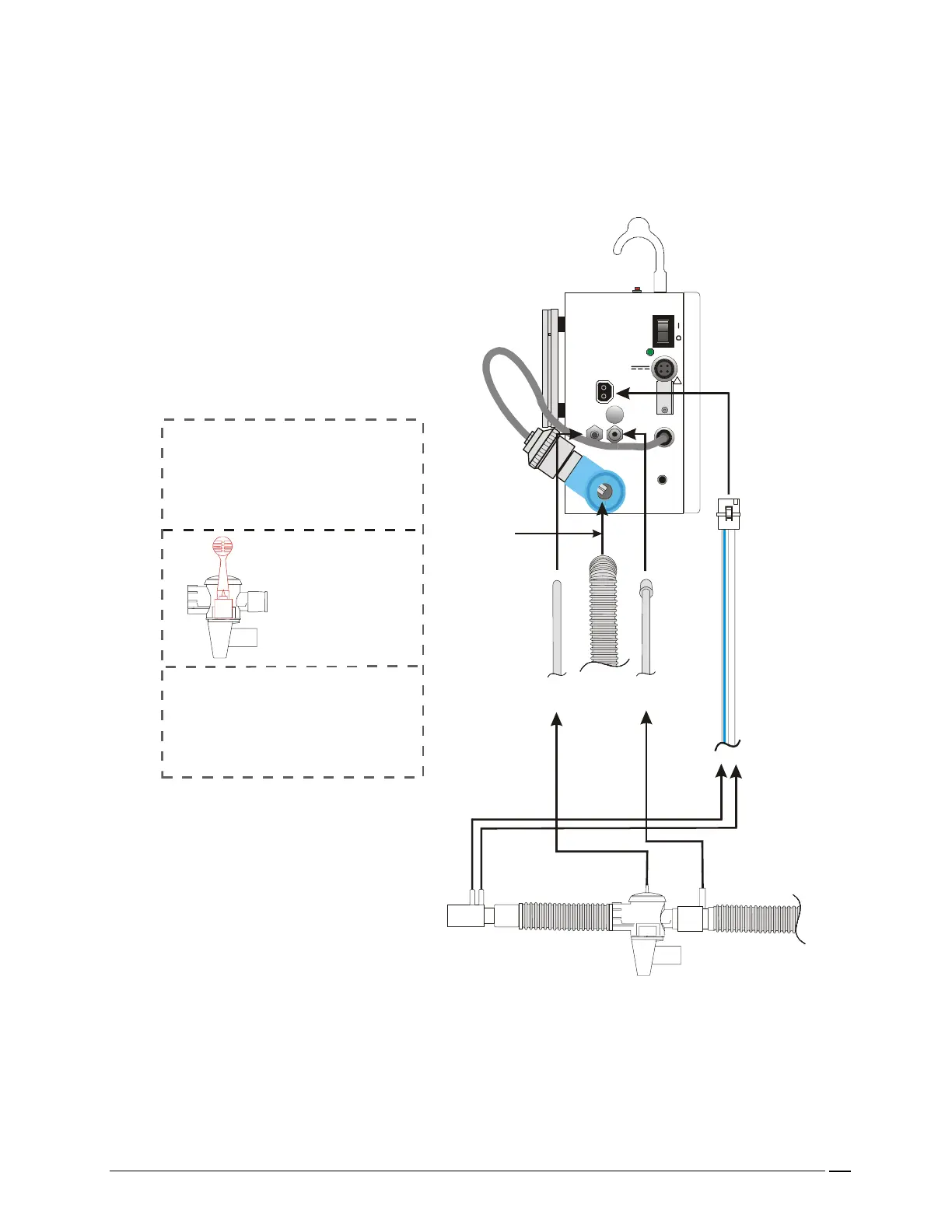

FIG. 8- CIRCUIT SETUP
POWER
ON
OFF
EXH
VALVE
AIRWAY
PRESSURE
NEBULIZER
PATIENT
ALARM
RESET
O
2
!
FLOW SENSOR
CHARGING
Exhalation
Valve
Pneumotach
(use is optional)
Airway
Pressure
To Th e Pat ie nt
Striped
Tube
Clear
Tube
Exhalation Valve
w/ Collection Head
Airway
Pressure
Tee
Oxygen Sensor
w/ Tee
(use is optional)
Pneumotach
For use with a
support arm, clip
the holding arm
onto the exhalation
valve as shown here
and then capture the
ball in the support
arm.
6" Hose
When using a humidifier, use the 24"
hose between the Crossvent and
humidifier. Then connect the circuit
to the output of the humidifier and
make all the connections as would
normally be made.
When using a patient filter, connect
it directly to the patient connector on
the side of the Crossvent (or O2 tee
if the sensor is being used) and then
connect the patient circuit (or 24"
hose if using a humidifier) to the filter.
Patient Filter
goes here
NOTES
Adult circuit, catalog #80011, shown
