E30 Digital Electrocardiograph User’s Manual
5-3
In manual mode, real-time recording of ECG waveform is conducted
manually according to the requirements of users, and start and stop of
recording are controlled via keys. Optional: Manual 1(display waveform of
lead ~ⅠⅢ), Manual 2(display waveform of lead aVR~aVF), Manual 3(display
waveform of lead V1~V3), Manual 4(display waveform of lead V4~V6).

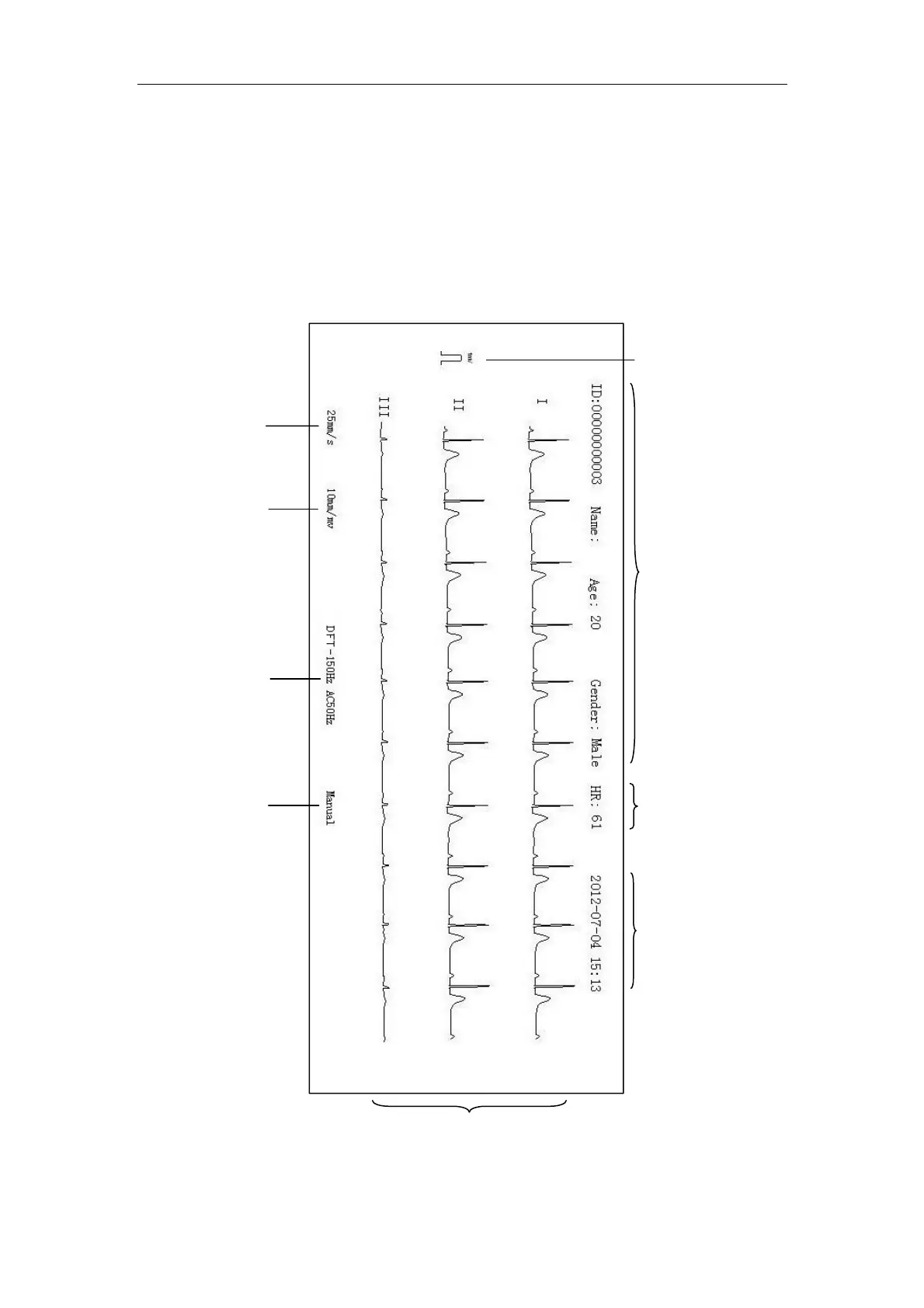

The chart below is the ECG report of Manual 1 in Manual mode:
Patient info
Measure info
Time record
1 mV calibration signal
Record speed
Wave gain
DFT filter (On)
Lowpass frequency
Work mode
Waveform info
