Manifold Stop Screw Adjustment Kit| 63
1. In the carrier's empty hole,
insert the taller stop screw
when using a magnet or the
shorter screw when using PCR
plates.
2. Put the magnet and
microplate or the 384-
PCRplate in the carrier on the

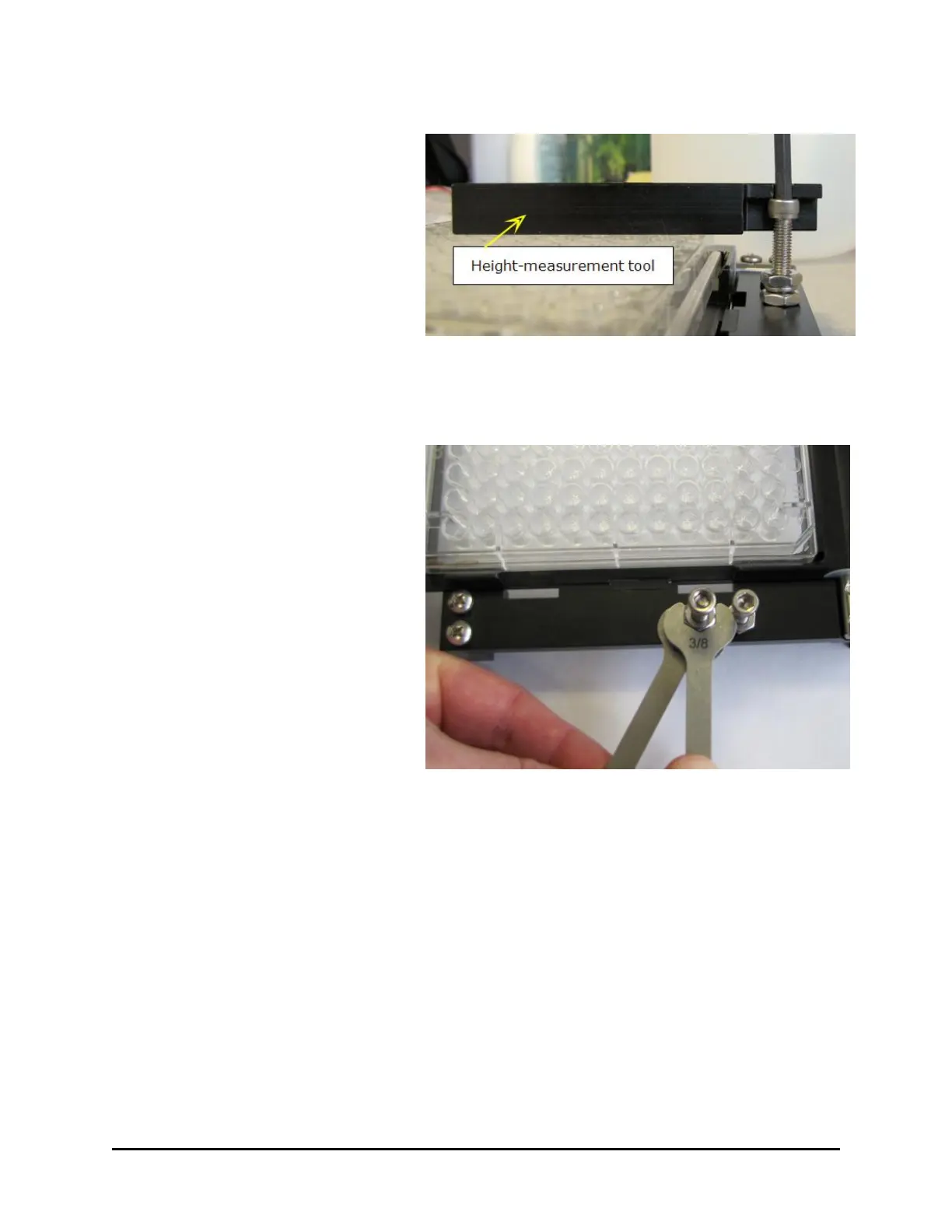

instrument. Place the height-
measurement tool (or jig) on
top of the microplate, with the
notched end above the screw.
3. Hold the jig level on top of
the microplate and raise or
lower the stop screw so its
head touches the bottom of
the notch.
4. Set the jig aside. Using your
fingers, hold the stop screw in
place and screw the bottom
nut down until it touches the
microplate carrier.
5. Using the two supplied
wrenches, tighten the bottom
nut to secure the screw, then
tighten the top nut to fully
compress the washer between
them. This will lock the nuts
in place and allow you to
easily remove/replace the
screw without affecting its
height setting.
6. Verify the height with the jig and repeat steps 3-6 if necessary.
