BIXOLON SRP-270 Service Manual

Rev. 3.02
- 28 -
SRP-270

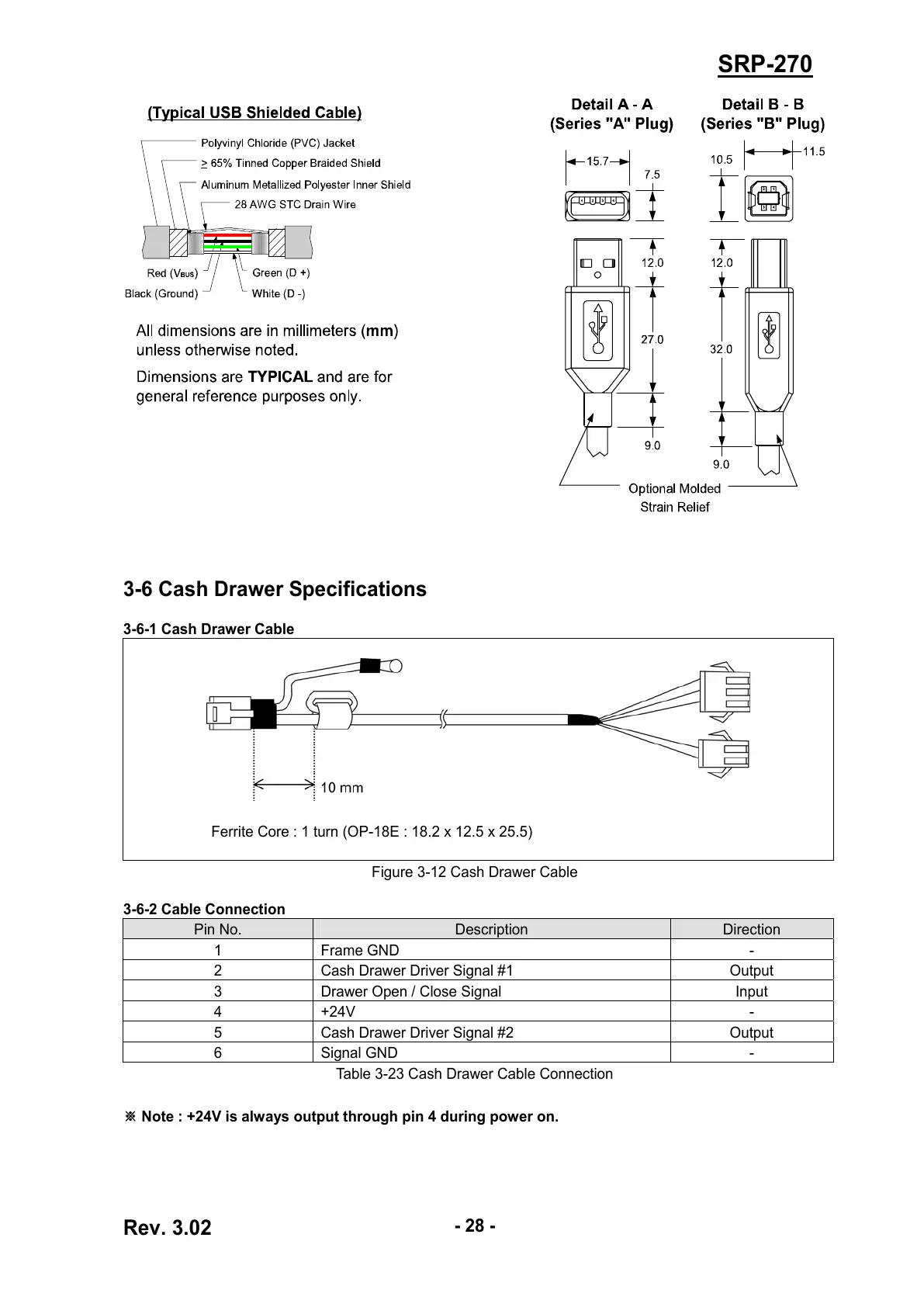

3-6 Cash Drawer Specifications
3-6-1 Cash Drawer Cable
Ferrite Core : 1 turn (OP-18E : 18.2 x 12.5 x 25.5)
Figure 3-12 Cash Drawer Cable
3-6-2 Cable Connection
Pin No. Description Direction
1 Frame GND -
2 Cash Drawer Driver Signal #1 Output
3 Drawer Open / Close Signal Input
4 +24V -
5 Cash Drawer Driver Signal #2 Output
6 Signal GND -
Table 3-23 Cash Drawer Cable Connection
※ Note : +24V is always output through pin 4 during power on.
