Rev. 3.02
- 36 -
SRP-270

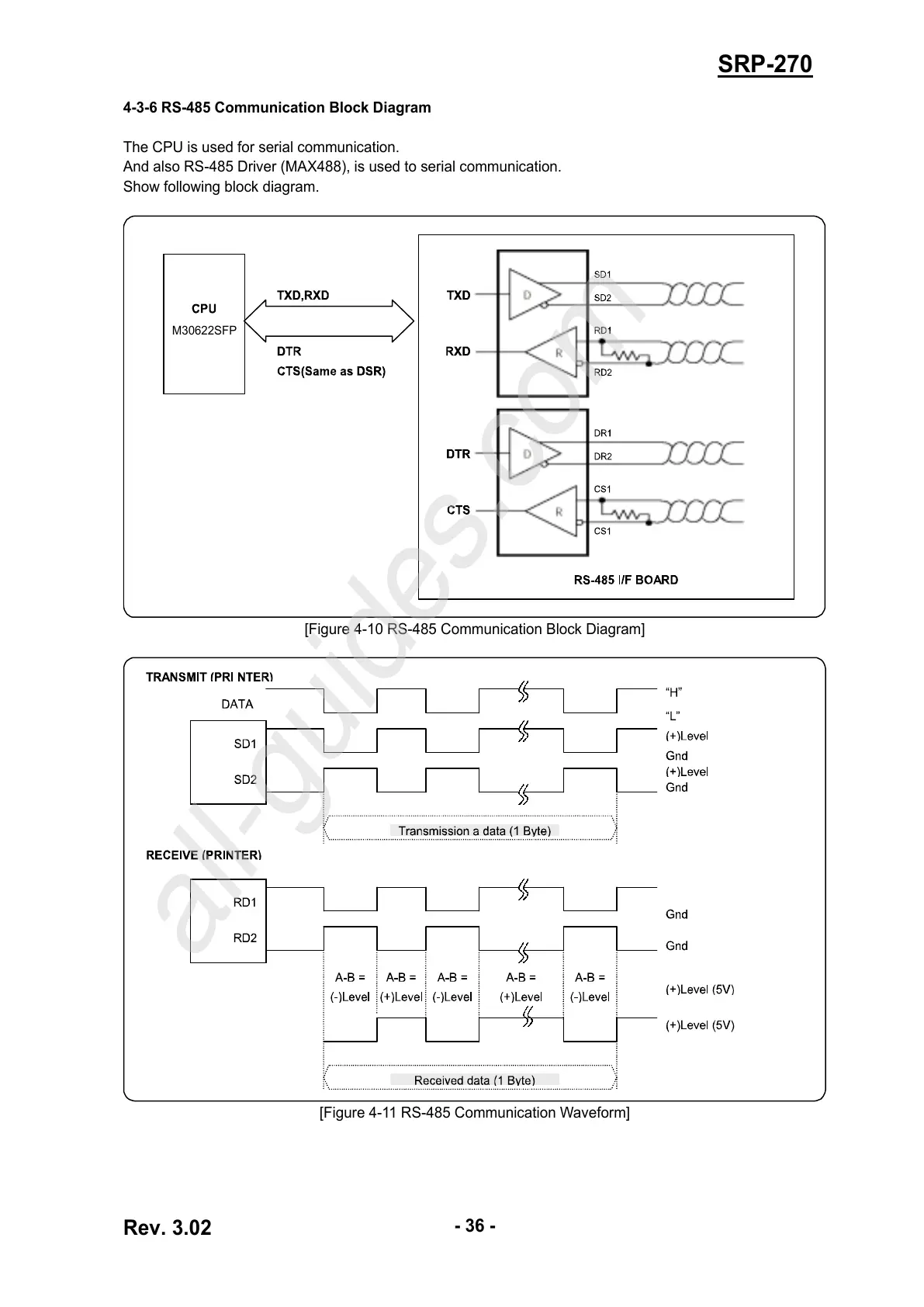

4-3-6 RS-485 Communication Block Diagram
The CPU is used for serial communication.
And also RS-485 Driver (MAX488), is used to serial communication.
Show following block diagram.
[Figure 4-10 RS-485 Communication Block Diagram]
[Figure 4-11 RS-485 Communication Waveform]
M30622SFP
