Rev. 3.02
- 40 -
SRP-270

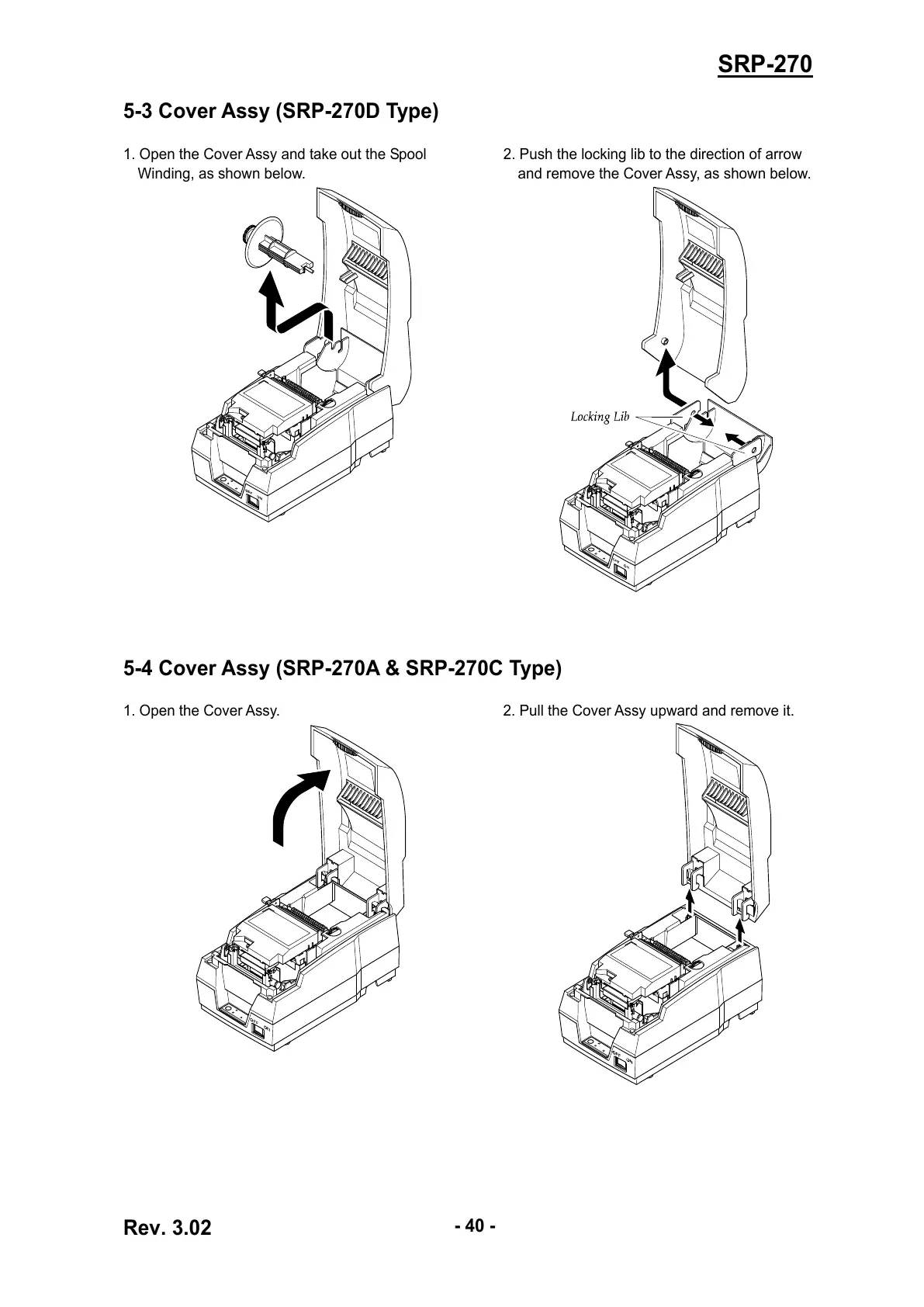

5-3 Cover Assy (SRP-270D Type)
1. Open the Cover Assy and take out the Spool
Winding, as shown below.
2. Push the locking lib to the direction of arrow
and remove the Cover Assy, as shown below.
5-4 Cover Assy (SRP-270A & SRP-270C Type)
1. Open the Cover Assy. 2. Pull the Cover Assy upward and remove it.
