Rev. 3.02
- 78 -
SRP-270

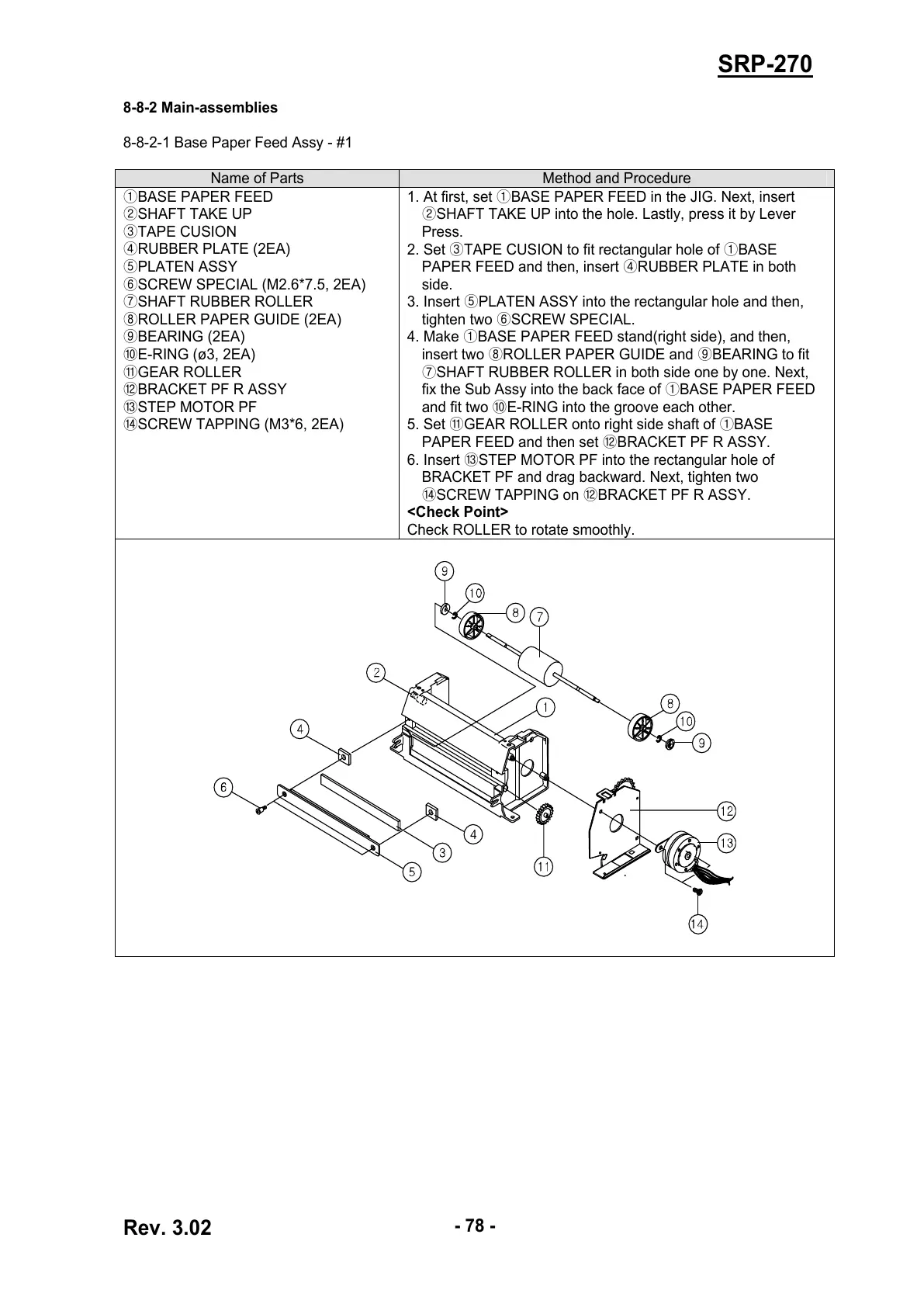

8-8-2 Main-assemblies
8-8-2-1 Base Paper Feed Assy - #1
Name of Parts Method and Procedure
①BASE PAPER FEED
②SHAFT TAKE UP
③TAPE CUSION
④RUBBER PLATE (2EA)
⑤PLATEN ASSY
⑥SCREW SPECIAL (M2.6*7.5, 2EA)
⑦SHAFT RUBBER ROLLER
⑧ROLLER PAPER GUIDE (2EA)
⑨BEARING (2EA)
⑩E-RING (ø3, 2EA)
⑪GEAR ROLLER
⑫BRACKET PF R ASSY
⑬STEP MOTOR PF
⑭SCREW TAPPING (M3*6, 2EA)
1. At first, set BASE PAPER FEED in the JIG. Next, insert ①
SHAFT TAKE UP into the hole. ② Lastly, press it by Lever
Press.
2. Set TAPE CUSION to fit rectangular hole of BASE ③①
PAPER FEED and then, insert RUBBER PLATE in both ④
side.
3. Insert PLATEN ASSY into the rectangular hole and then, ⑤
tighten two SCREW SPECIAL.⑥
4. Make BASE PAPER FEED st① and(right side), and then,
insert two ROLLER PAPER GUIDE and BEARING to fit ⑧⑨
SHAFT RUBBER ROLLER in both side one by one. Next, ⑦
fix the Sub Assy into the back face of BASE PAPER FEED ①
and fit two E⑩ -RING into the groove each other.
5. Set GEAR ROLLER on⑪ to right side shaft of BASE ①
PAPER FEED and then set BRACKET PF R ASSY.⑫
6. Insert STEP MOTOR PF into the rectangular hole of ⑬
BRACKET PF and drag backward. Next, tighten two
SCREW TAPPING on BRACKET PF R ASSY.⑭⑫
<Check Point>
Check ROLLER to rotate smoothly.
To Next Page
