Rev. 3.02
- 79 -
SRP-270

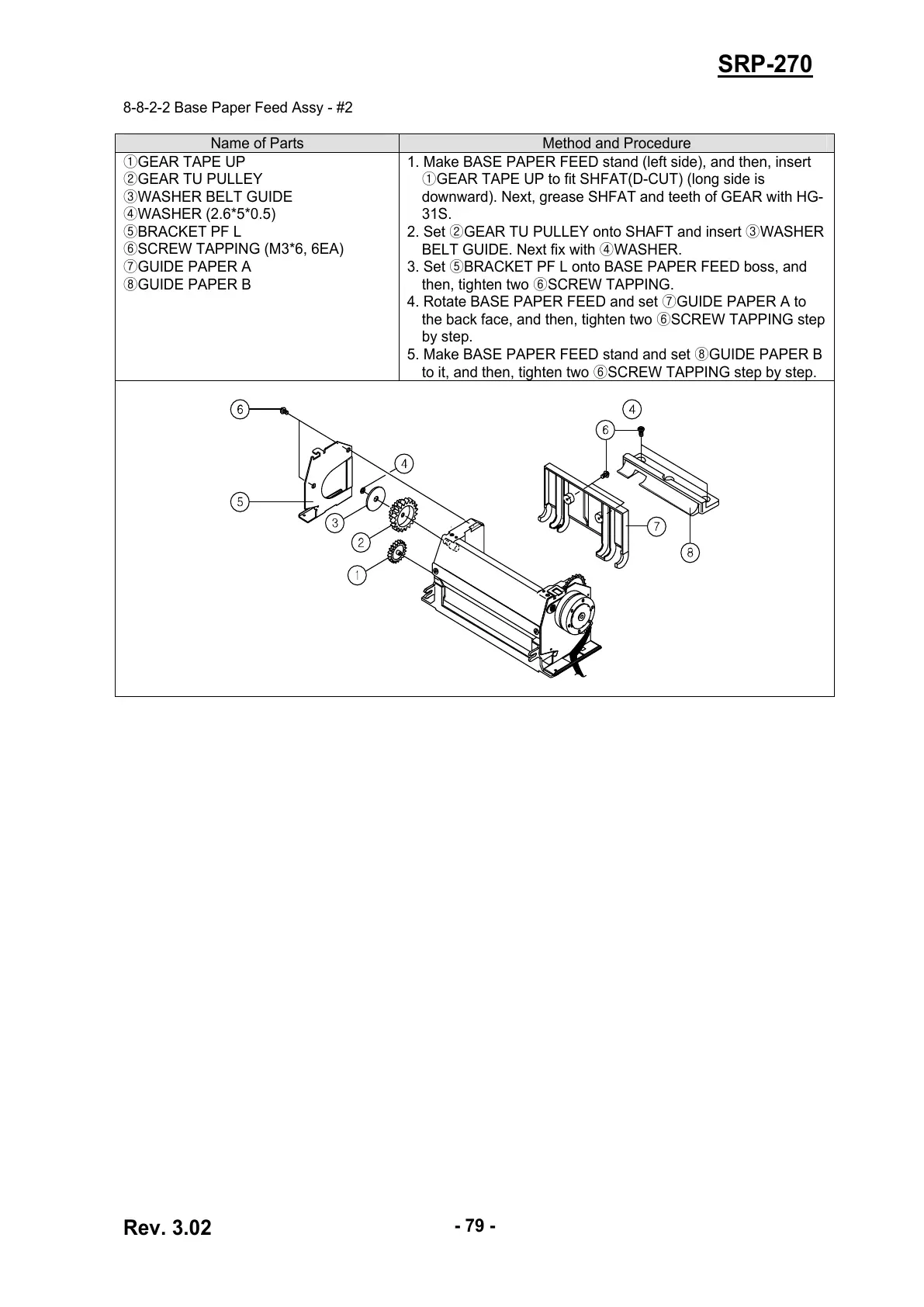

8-8-2-2 Base Paper Feed Assy - #2
Name of Parts Method and Procedure
①GEAR TAPE UP
②GEAR TU PULLEY
③WASHER BELT GUIDE
④WASHER (2.6*5*0.5)
⑤BRACKET PF L
⑥SCREW TAPPING (M3*6, 6EA)
⑦GUIDE PAPER A
⑧GUIDE PAPER B
1. Make BASE PAPER FEED stand (left side), and then, insert
GEAR TAPE UP to fit SHFAT(D① -CUT) (long side is
downward). Next, grease SHFAT and teeth of GEAR with HG-
31S.
2. Set GEAR TU ② PULLEY onto SHAFT and insert WASHER ③
BELT GUIDE. Next fix with WASHER.④
3. Set BRACKET PF L onto BASE PAPE⑤ R FEED boss, and
then, tighten two SCREW TAPPING.⑥
4. Rotate BASE PAPER FEED and set GUIDE PAPER A to ⑦
the back face, and then, tighten two SCREW TAPPING step ⑥
by step.
5. Make BASE PAPER FEED stand and set GUIDE PAPER B ⑧
to it, and then, tighten two SCRE⑥ W TAPPING step by step.
To Next Page
