Rev. 3.02
- 62 -
SRP-270
8-2-1-3 Precautions on use
1) Since this printer employs magnetic substance (Motor, Solenoid), avoid using it in locations exposed to
excessive iron filings, dirt, dust or other foreign particles.
2) Never perform a printing operation without the paper and ribbon installed.
3) The printer must be installed on a level surface.
4) When installing this printer, be sure to us e a buffer of rubber or other similar material between the
mounting brackets of the printer and the printer itself (to prevent vibrations caused by printing or paper
feeding and to avoid increased reverberations)
5) For the mounting holes of the printer, be sure to us e the round or oblong holes.
6) Because the PCB is at the bottom of the printer, take care that there is no contact between its parts and
mounting base and that no foreign matter contacts the board.
7) If end mark on Rolled paper appears. Replace the Rolled paper.
8-2-2 Paper Setting Procedures (Insertion/Removal)
Make sure to always use only the paper types prescribed in the SMP- 710/710N Specifications.

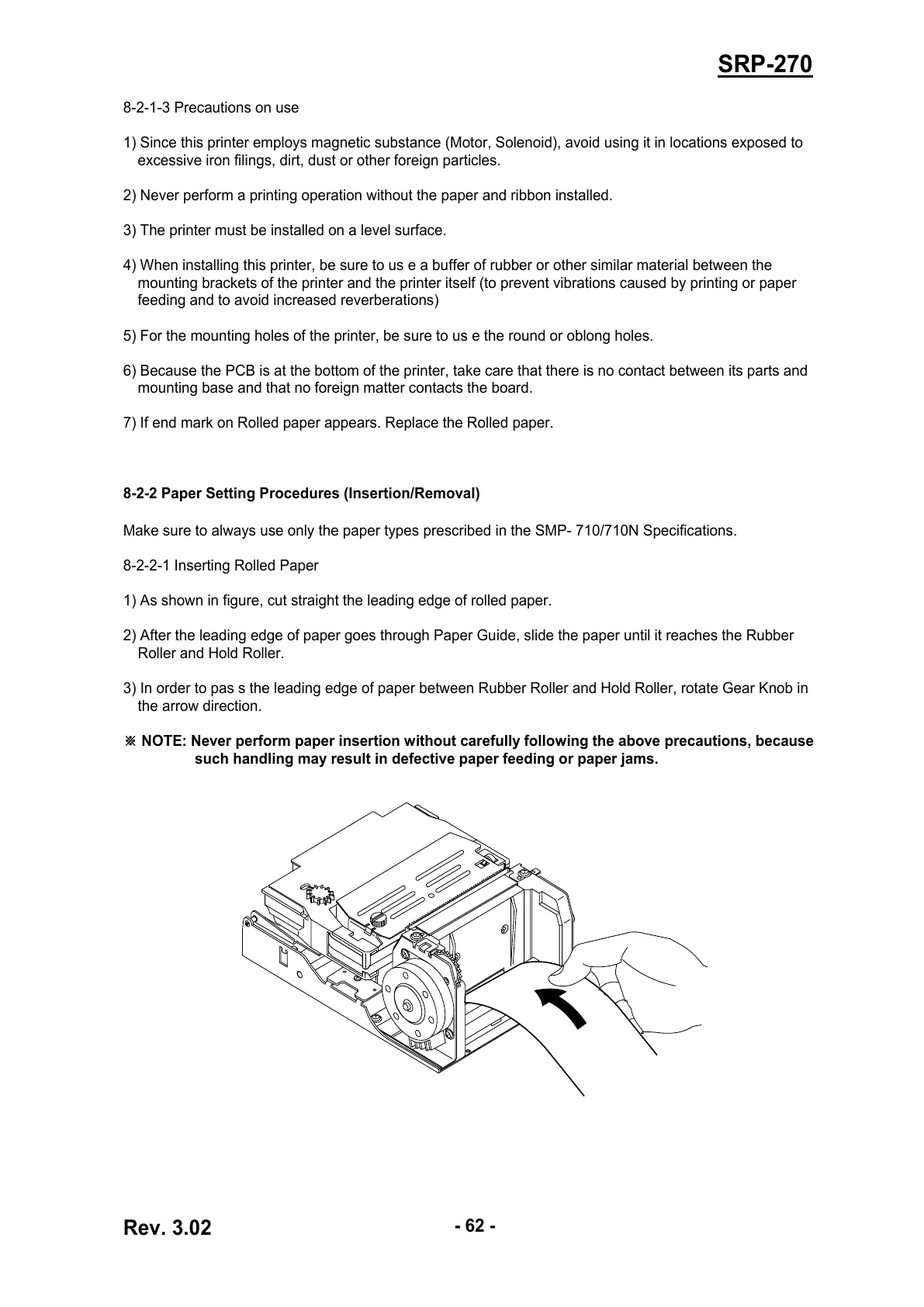

8-2-2-1 Inserting Rolled Paper
1) As shown in figure, cut straight the leading edge of rolled paper.
2) After the leading edge of paper goes through Paper Guide, slide the paper until it reaches the Rubber
Roller and Hold Roller.
3) In order to pas s the leading edge of paper between Rubber Roller and Hold Roller, rotate Gear Knob in
the arrow direction.
NOTE: Never perform paper insertion without carefully following the above precautions, because ※
such handling may result in defective paper feeding or paper jams.
