4-3-7 Parallel Communication Block Diagram
The printer support the bidirectional Parallel Interface with Centronics, Nibble, Byte Mode.
The Centronics is Forward and the Nibble, Byte are reverse Mode.

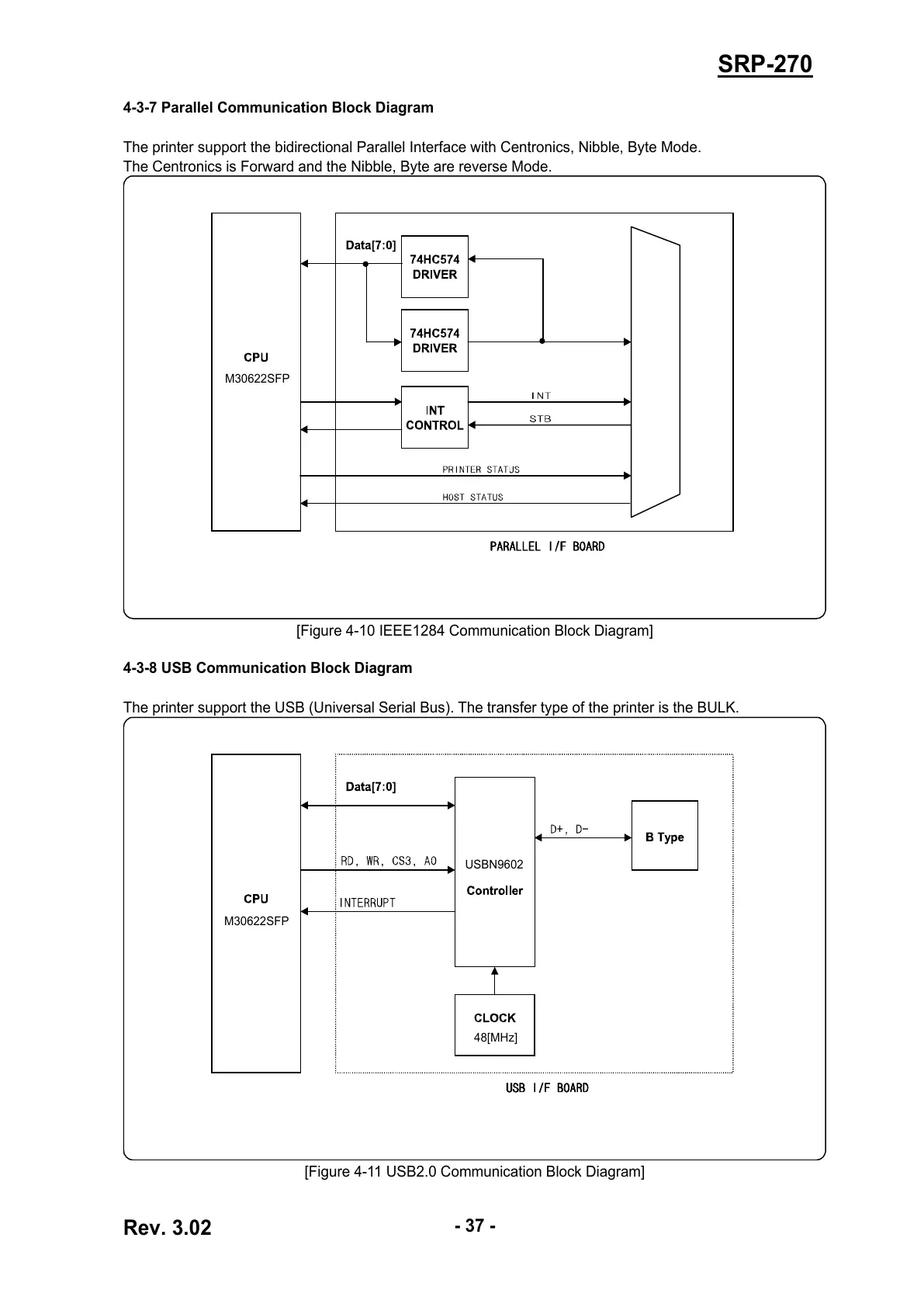

[Figure 4-10 IEEE1284 Communication Block Diagram]
4-3-8 USB Communication Block Diagram
The printer support the USB (Universal Serial Bus). The transfer type of the printer is the BULK.
[Figure 4-11 USB2.0 Communication Block Diagram]
M30622SFP
M30622SFP
USBN9602
48[MHz]
