Rev. 3.02
- 41 -
SRP-270

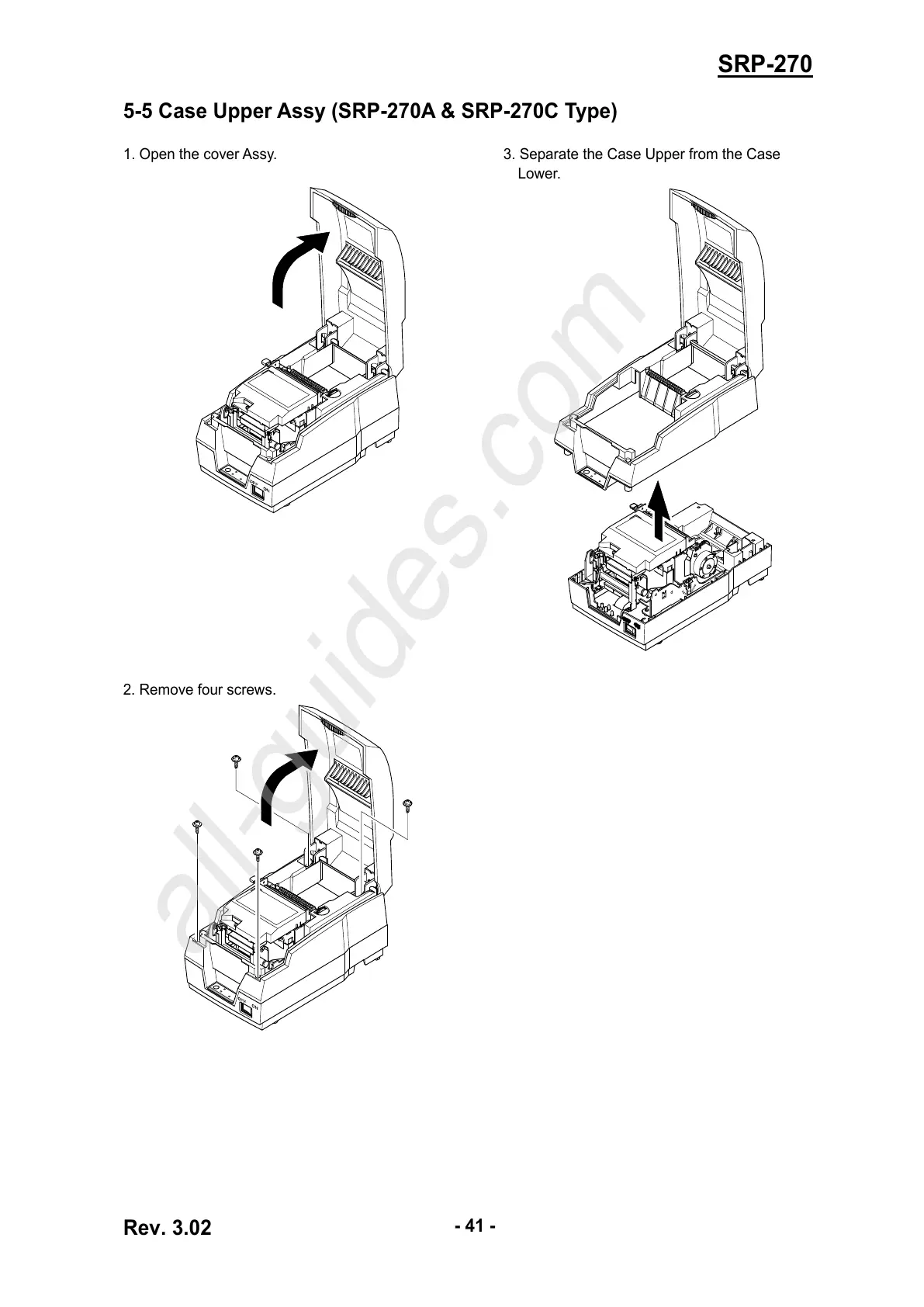

5-5 Case Upper Assy (SRP-270A & SRP-270C Type)
1. Open the cover Assy. 3. Separate the Case Upper from the Case
Lower.
2. Remove four screws.
