Rev. 3.02
- 50 -
SRP-270

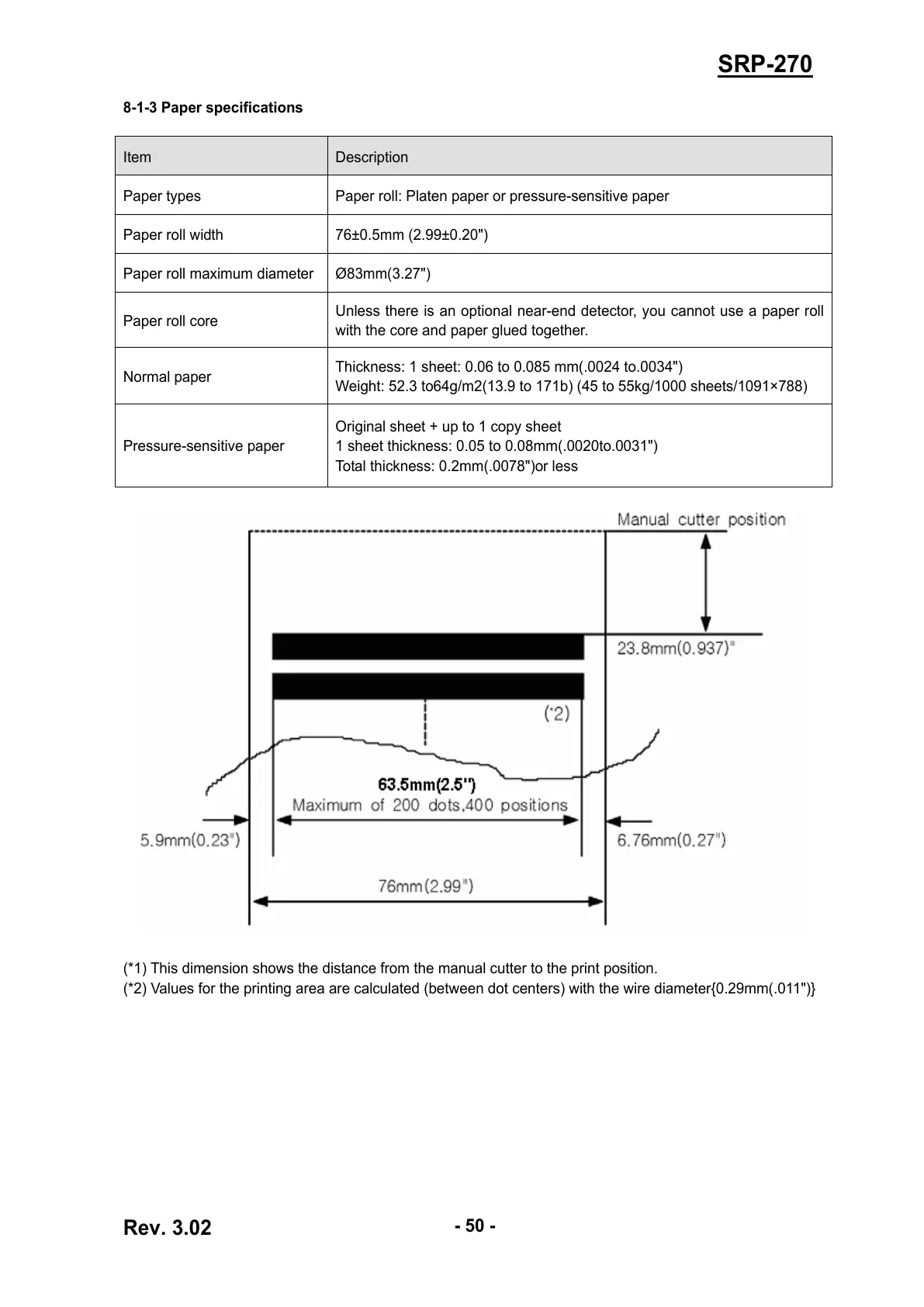

8-1-3 Paper specifications
Item Description
Paper types Paper roll: Platen paper or pressure-sensitive paper
Paper roll width 76±0.5mm (2.99±0.20")
Paper roll maximum diameter Ø83mm(3.27")
Paper roll core
Unless there is an optional near-end detector, you cannot use a paper roll
with the core and paper glued together.
Normal paper
Thickness: 1 sheet: 0.06 to 0.085 mm(.0024 to.0034")
Weight: 52.3 to64g/m2(13.9 to 171b) (45 to 55kg/1000 sheets/1091×788)
Pressure-sensitive paper
Original sheet + up to 1 copy sheet
1 sheet thickness: 0.05 to 0.08mm(.0020to.0031")
Total thickness: 0.2mm(.0078")or less
(*1) This dimension shows the distance from the manual cutter to the print position.
(*2) Values for the printing area are calculated (between dot centers) with the wire diameter{0.29mm(.011")}
