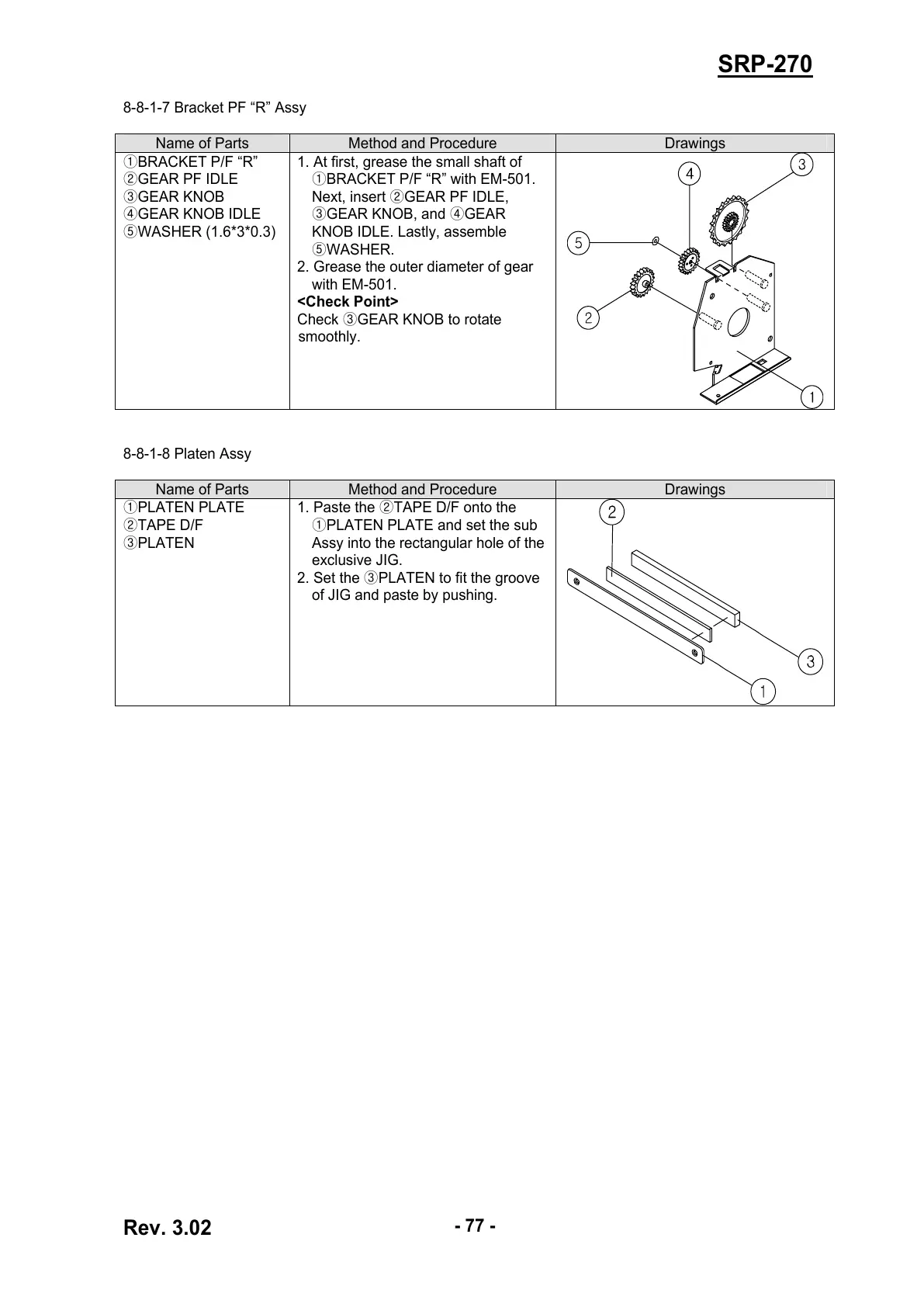

8-8-1-7 Bracket PF “R” Assy
Name of Parts Method and Procedure Drawings
①BRACKET P/F “R”
②GEAR PF IDLE
③GEAR KNOB
④GEAR KNOB IDLE
⑤WASHER (1.6*3*0.3)
1. At first, grease the small shaft of
BRACKET P/F “R” with EM① -501.
Next, insert GEAR PF IDLE, ②
GEAR KNOB, and GEAR ③④
KNOB IDLE. Lastly, assemble
WASHER.⑤
2. Grease the outer diameter of gear
with EM-501.
<Check Point>
Check GEAR KNOB to rotate ③
smoothly.
8-8-1-8 Platen Assy
Name of Parts Method and Procedure Drawings
①PLATEN PLATE
②TAPE D/F
③PLATEN
1. Paste the TAPE D/F onto the ②
PLATEN PLATE and set the sub ①
Assy into the rectangular hole of the
exclusive JIG.
2. Set the PLATEN to fit the groove ③
of JIG and paste by pushing.
To Next Page
