Rev. 3.02
- 76 -
SRP-270

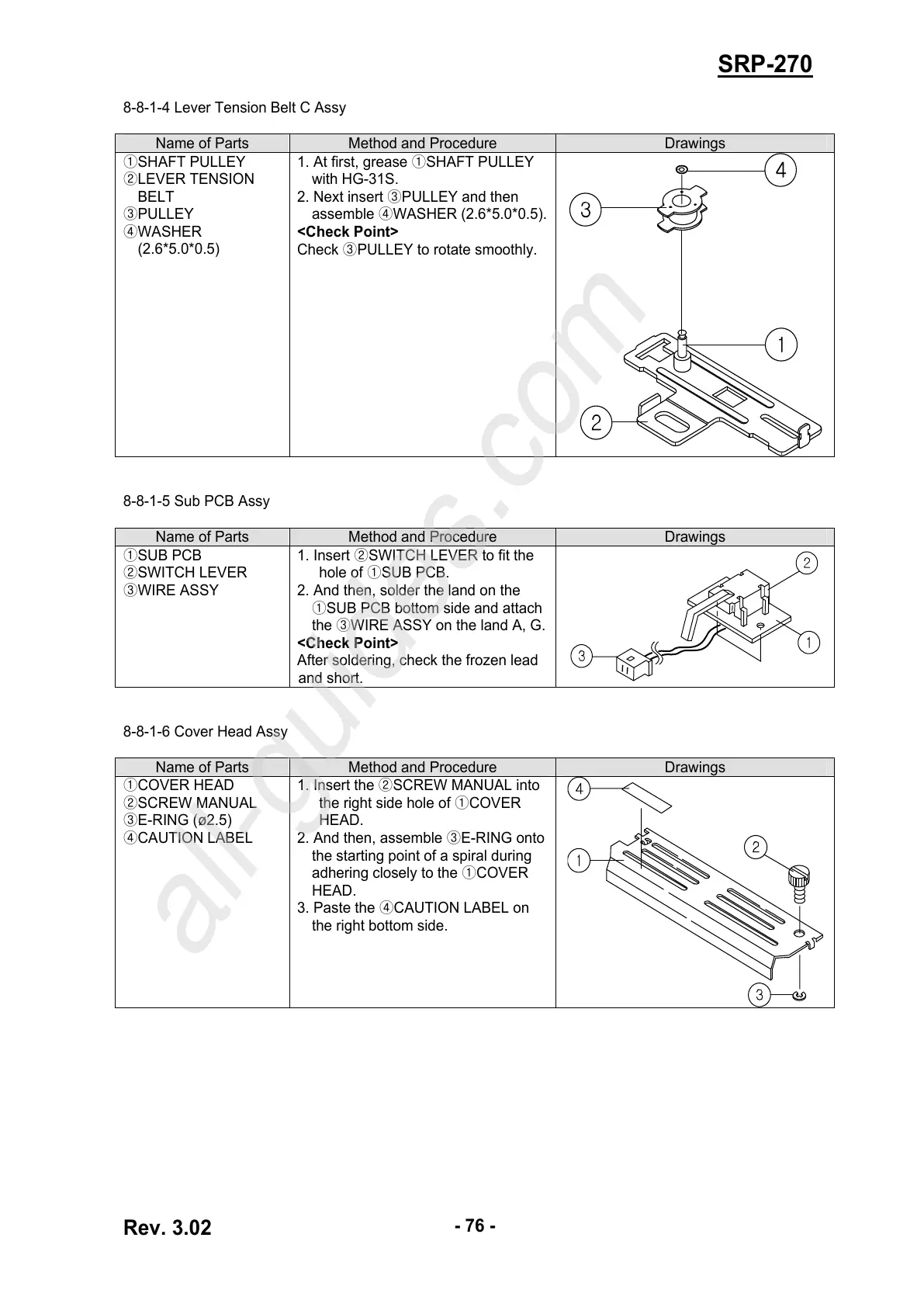

8-8-1-4 Lever Tension Belt C Assy
Name of Parts Method and Procedure Drawings
SHAFT PUL① LEY
LEVER TENSION ②
BELT
PULLEY③
WASHER ④
(2.6*5.0*0.5)
1. At first, grease SHAFT PULLEY①
with HG-31S.
2. Next insert PULLEY and then ③
assemble WASHER (2.6*5.0*0.5).④
<Check Point>
Check PULLEY to rotate smoothly.③
8-8-1-5 Sub PCB Assy
Name of Parts Method and Procedure Drawings
SUB PCB①
SWITCH LEVER②
WIRE ASSY③
1. Insert SWITCH LEVER to fit the ②
hole of SUB PCB.①
2. And then, solder the land on the
SUB PCB bottom side and attach ①
the WIRE ASSY on the land A, G.③
<Check Point>
After soldering, check the frozen lead
and short.
8-8-1-6 Cover Head Assy
Name of Parts Method and Procedure Drawings
COVER HEAD①
SCREW MANUAL②
E③ -RING (ø2.5)
CAUTION LABEL④
1. Insert the SCREW MANUAL into ②
the right side hole of COVER ①
HEAD.
2. And then, assemble E③ -RING onto
the starting point of a spiral during
adhering closely to the COVER ①
HEAD.
3. Paste the CAUTION LABEL on ④
the right bottom side.
To Next Page
