6-3 Replacing Roller
• Be sure to turn the printer off.
1) Open the media cover and remove the media.
2) Pull the roller holders and separate the roller assembly.
3) Assemble new roller assembly in reverse order.
- Make sure to turn the printer power off prior to cleaning.
- The print head gets extremly hot while printing or after the printing,
this can cause serious burns. Do not touch the print head.

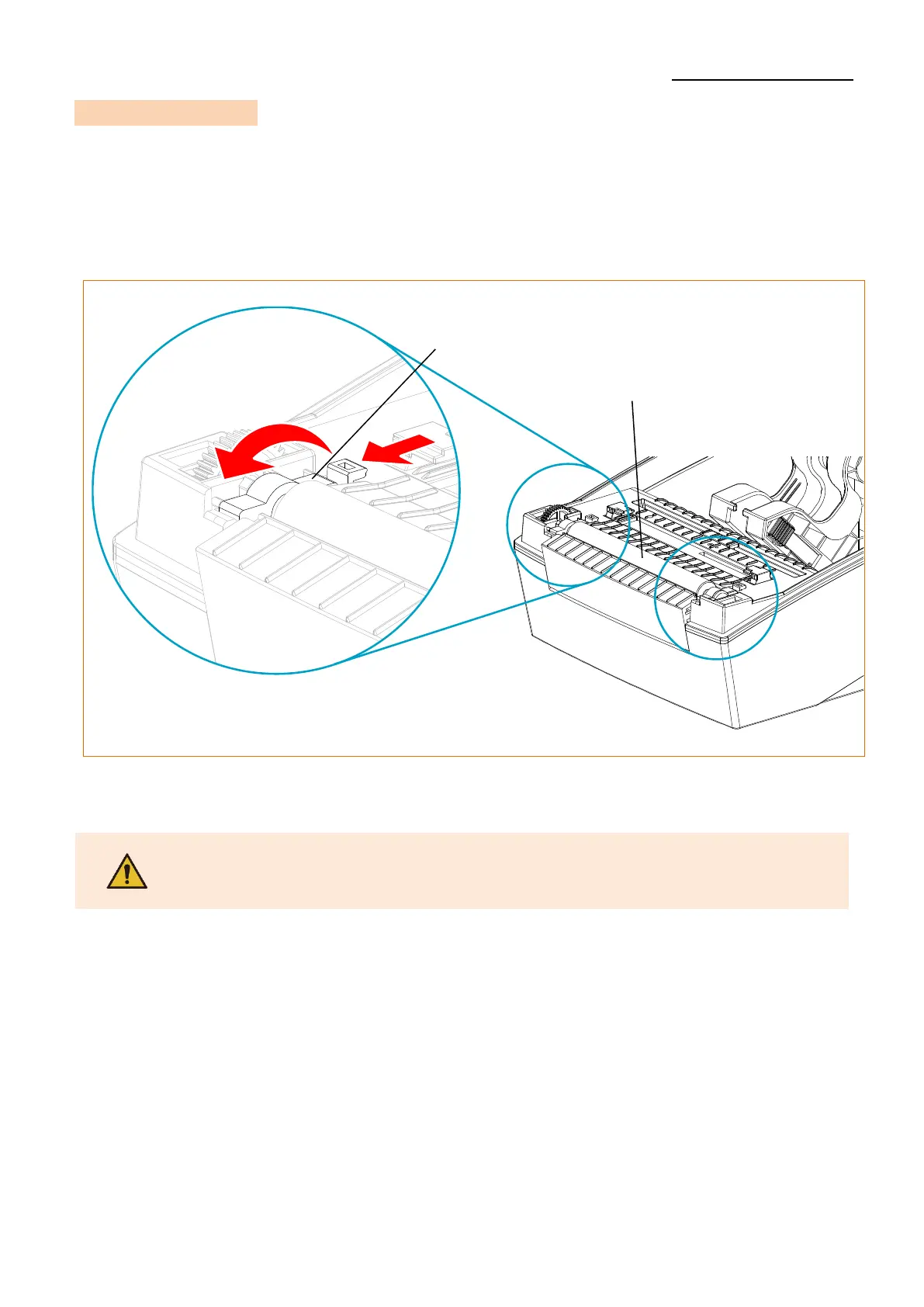

Roller Holder
Roller Assembly
