Operating instructions FK 23 Machine and operating elements
6.066.98.5.10.05 en 5 - 1
5
5 Machine and operating elements
5.1 Membrane keyboard
<I> (green) ON switch
Lamp (white)
<O> (red) OFF switch (reduced actuat-
ing force)

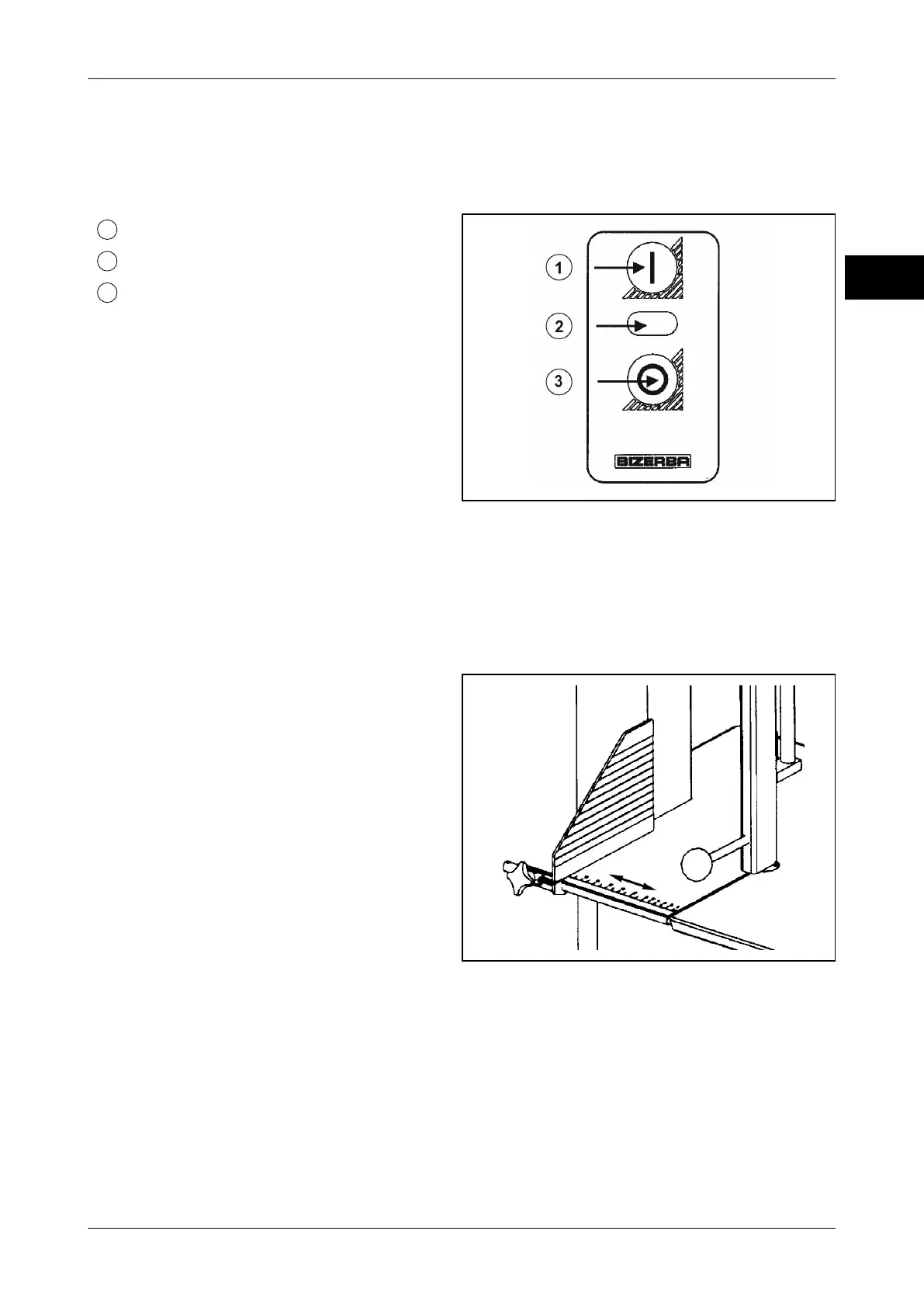

Fig. 6: Membrane keyboard
Pressing the green key starts the drive.
The signal lamp lights up.
When slightly tapping the red foil key, the drive turns off. (follow-up time approx. 3-4 sec.)
5.2 Gauge plate
The adjustable gauge plate allows cutting of
identical portions
It can be moved by loosening the star knob.
Setting range is from 10 mm to 190 mm.
The gauge plate is removable and can be
tilted in its end position.
Fig. 7: Gauge plate
5.3 Product pusher
When the machine is at rest, the pusher covers the exposed saw blade between protective
bar and saw table.
