Machine and operating elements Operating instructions FK 23
5 - 2 6.066.98.5.10.05 en
5
For sawing, the pusher is swiveled away in
order to accommodate the product.
During cutting, the left hand rests on the
lever knob and pushes the product against
the saw blade.
1
The pusher can be blocked in lifted posi-
tion using the star knob.
2
When the saw door is open, the pusher
can be removed towards the left in a de-
fined position.

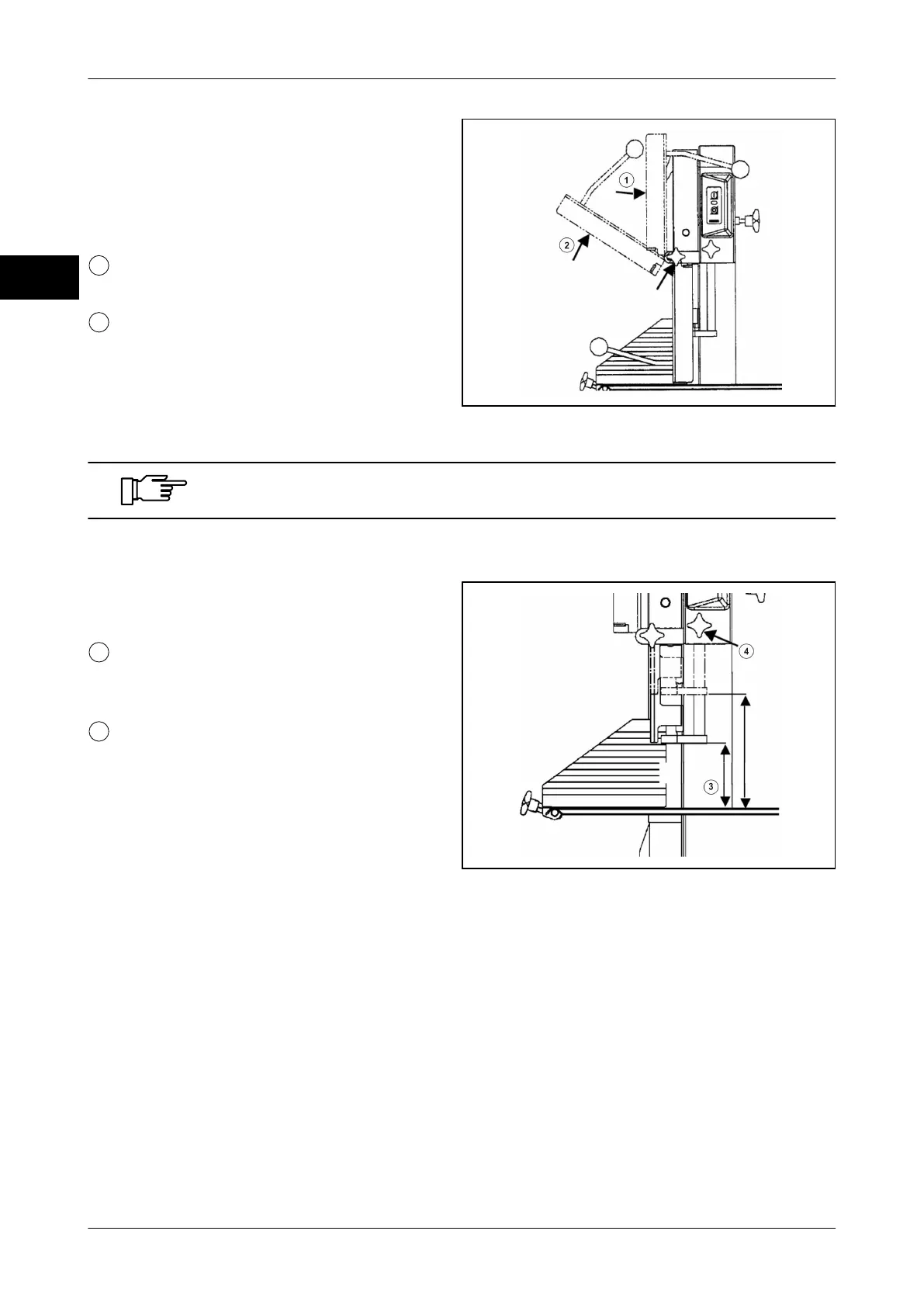

Fig. 8: Product pusher
Sawing without using the product pusher is not permissible.
5.4 Protective bar with saw blade guide
The protective bar can be adjusted in height
(max. 250 mm).
3
For safety reasons and for better saw
blade guiding, it should always be adjusted
to the respective product height.
4
The protective bar is adjusted by loosen-
ing and clamping of the star knob.
The bar is non-removable.
Fig. 9: Protection bar
5.5 Saw blade clamping unit
The lever is located under the saw table.
The swivel range is approx. 180°.
and can be put into 3 different positions with relevant functions:
