8.2 Removing components
Do not place parts on top of each other to avoid mechanical damage.

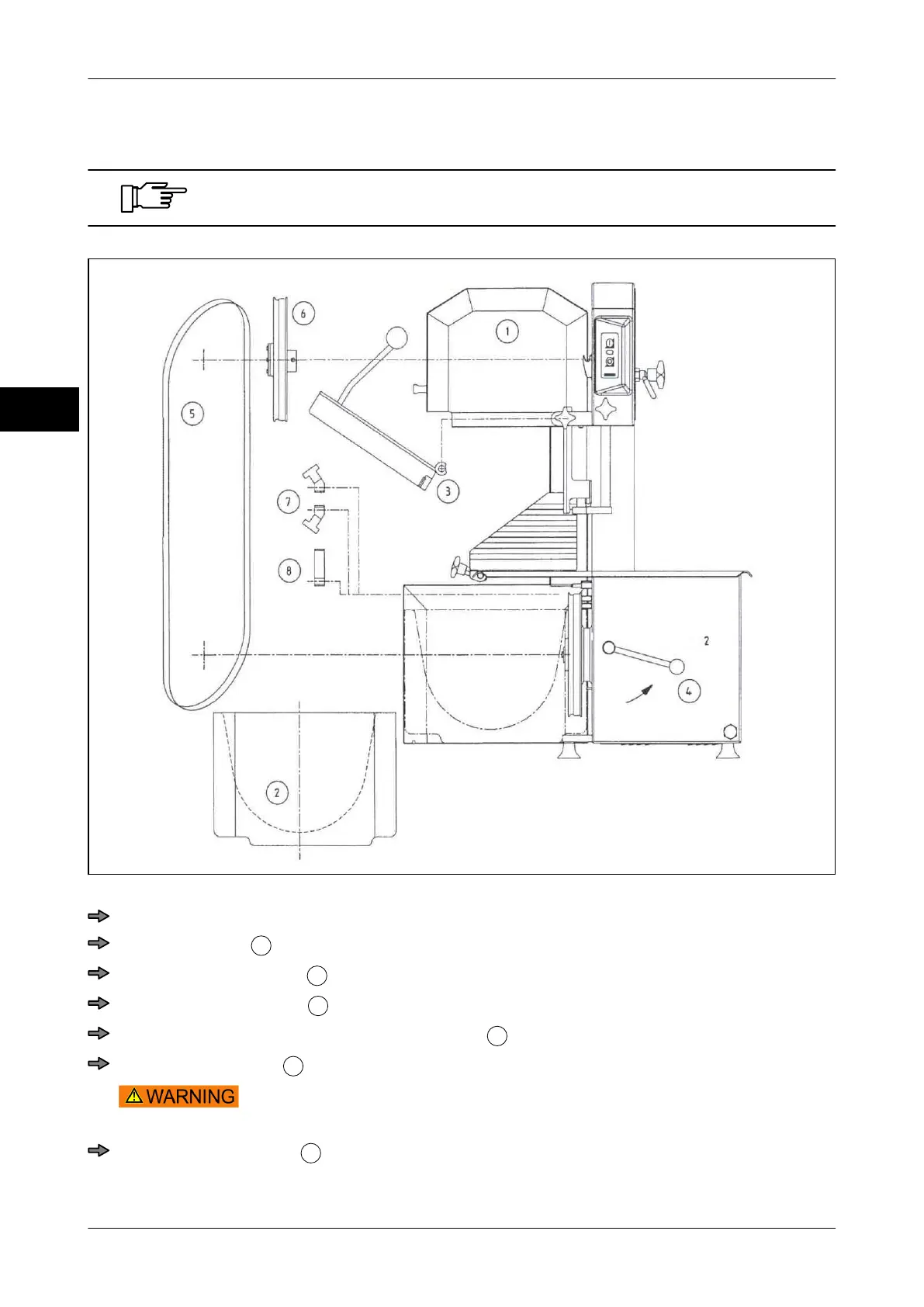

Fig. 17: Removing components
Put on cut-resistant gloves.
Open saw door
1
at handle (magnetic lock).
Remove collecting bin
2
via the door.
Swivel product pusher
3
to the top and remove it from the bolt towards the left side.
Loosen saw blade, bring clamping unit lever
4
in position 2.
Remove saw blade
5
with both hands towards the front.
Danger of cutting injury also if saw blade is at standstill. Store saw
blade securely so that nobody can harm oneself.
Remove upper wheel
6
from bearing lifting it upwards.
