Bizerba FK 23 - Specifications; FK 23 Dimensions and Requirements

Operating instructions FK 23 Technical data
6.066.98.5.10.05 en 9 - 1
9
9
Technical data
9.1 Dimensions FK 23

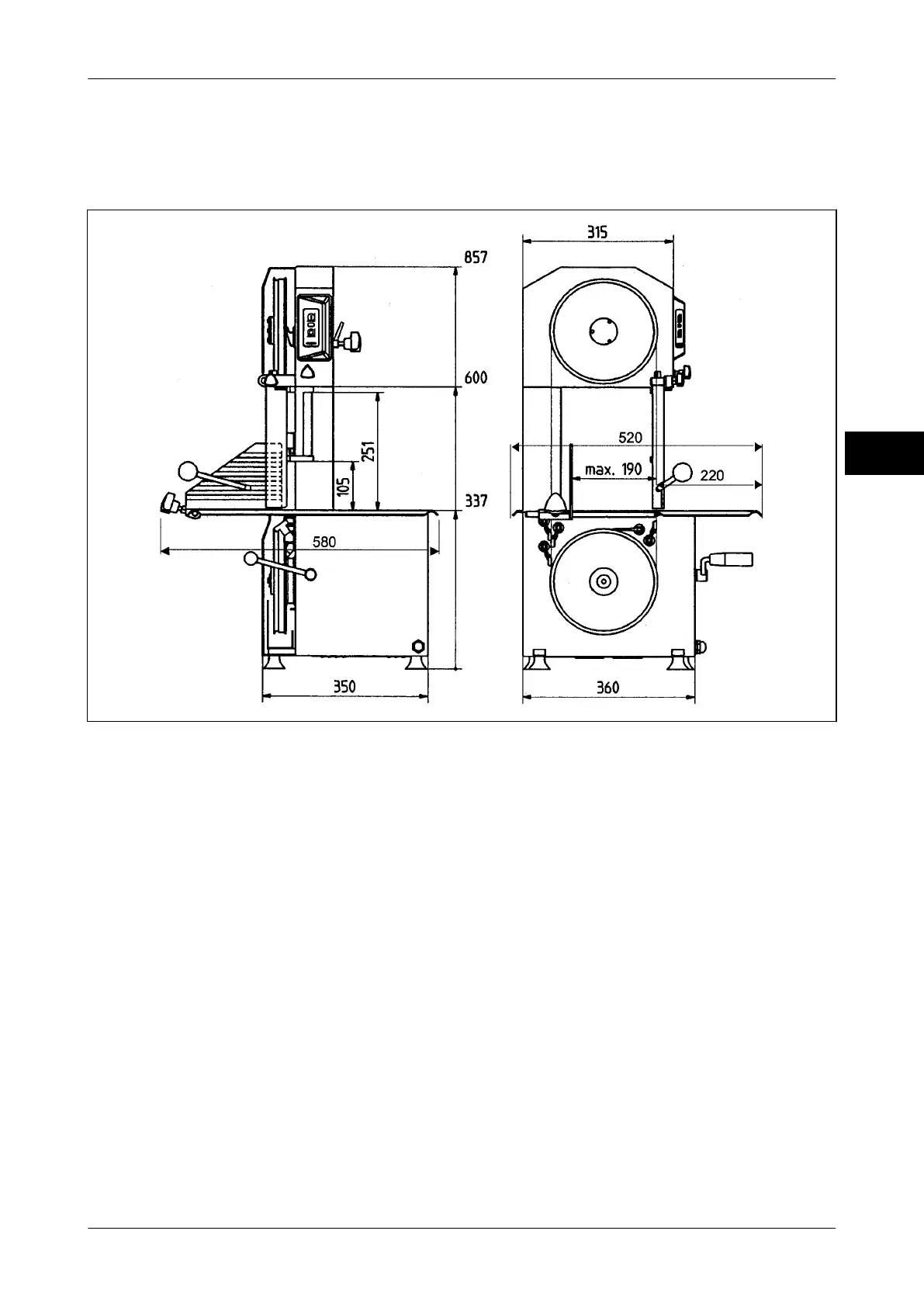

Fig. 19: FK 23
Outer dimensions (max. space requirement):
Length = 580 mm = 22.8"
Width = 520 mm = 20.5"
Height = 857 mm = 33.7"
Installation surface:
Length = 350 mm = 13.8"
Width = 360 mm = 14.2"
Cutting height max. = 250 mm = 9.8"
Slicing width = 10 - 190 mm = 0.4" - 7.5"
Blade speed = approx. 17 m/s = 55.8 ft/s
Machine weight = approx. 54 kg = 119 lbs
Types of current, voltag-
es, power consumptions
= see rating plate
