Operating instructions VS12D /C /-R /-V /-
V/R
Machine and operating elements
6.083.98.5.10.10 en 5 - 9
5
5.6 Product fixation device
VS12D
The correctly positioned product support
holds the product in place and prevents de-
flecting and turning of product during the
slicing process.
The product fixation is irreversibly self-lock-
ing on its shaft and is movable across the
full width of the carriage. This way, it can be
positioned on any product dimension.

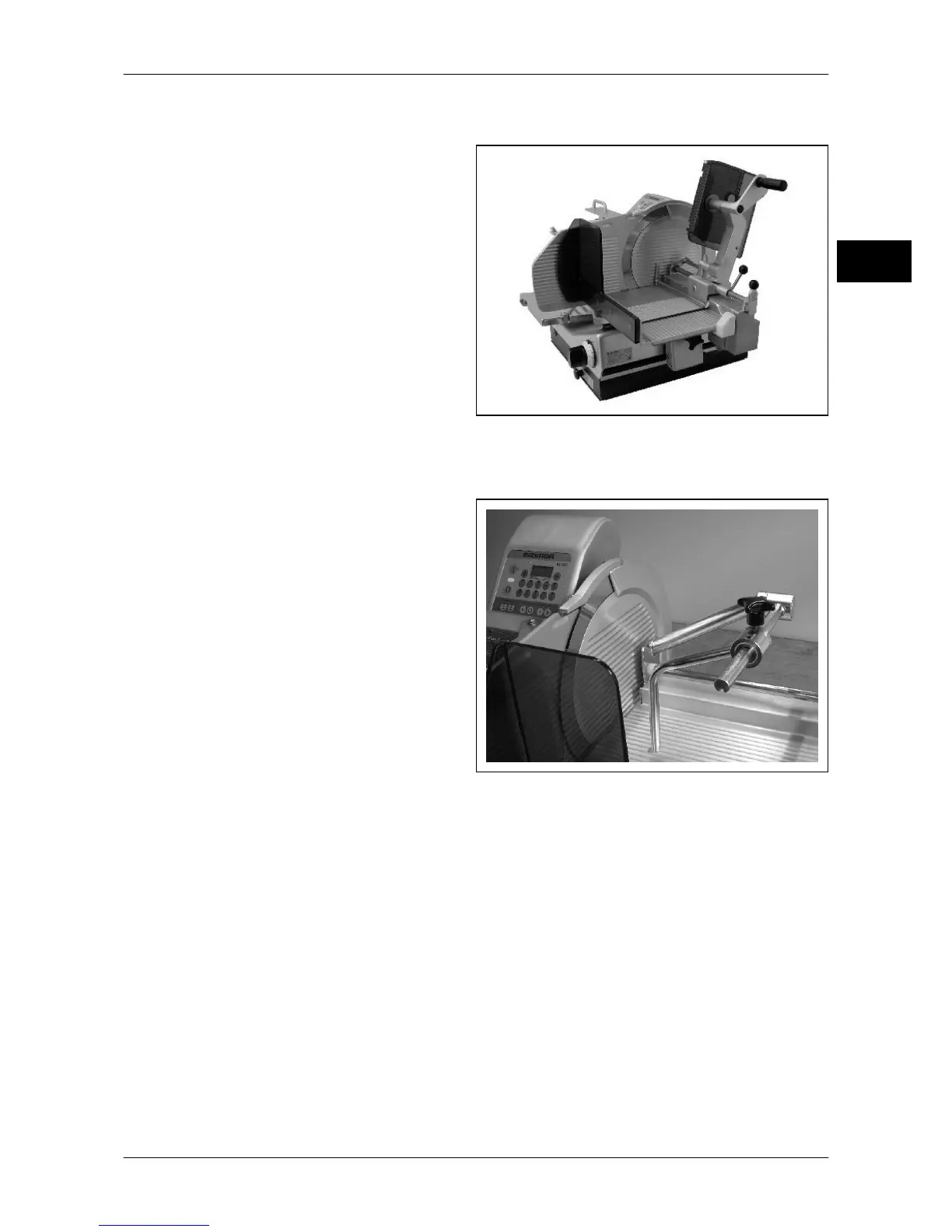

Fig. 12: Product fixation device VS12D
5.7 Product support
VS12D-V
The applied product support holds the prod-
uct in position during slicing preventing the
product from tipping over.
The product support is guided on its shaft
and can be moved across the entire car-
riage width. This way, it can be positioned
on any product size.
Fig. 13: Product support VS12D-V
