Operating instructions VS12D /C /-R /-V /-
V/R
Machine and operating elements
6.083.98.5.10.10 en 5 - 5
5
Applied for
– delicate products
– with low number of slices
– thick slices

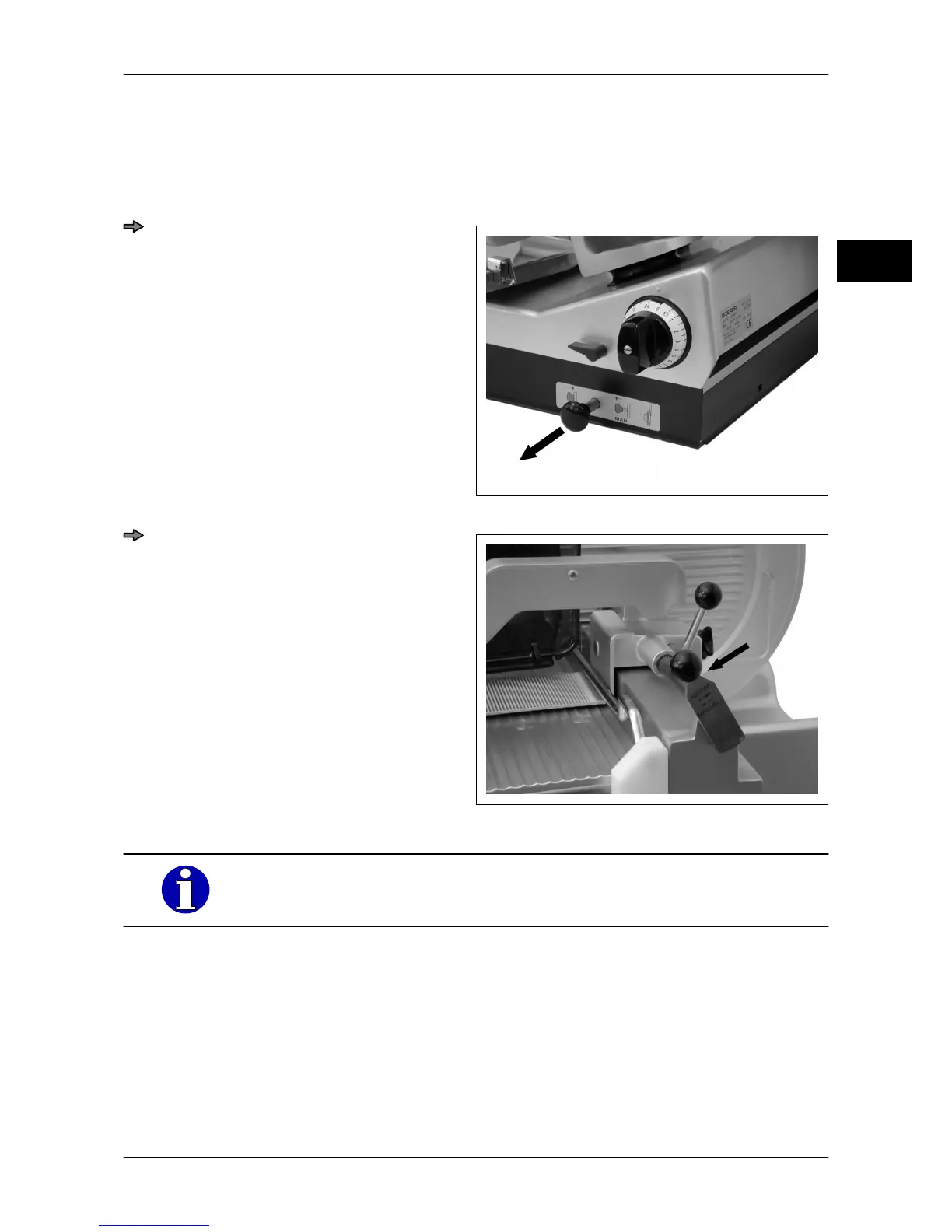

Fig. 4: Push button MAN
Pull push button until its stop.
Fig. 5: Locking lever MANUELL
Set locking lever to MANUELL.
In this position, carriage and product fixa-
tion device can be moved by hand.
In an area less than 60 mm from the blade, the product fixation device
cannot be swiveled in upwards direction.
5.2.2 Automatic operation
In automatic operation, carriage drive and product feeding are operated by a motor.
