5.3 Slice thickness setting
The slice thickness is adjusted by means of
the rotary knob.
Large fine adjustment range between 0 to
3 mm.
With slice thickness setting below "0" the
tilting device is unlocked (black marking).
The carriage can only be tilted to the out-
side in this setting. (e.g. for cleaning purpo-
ses).
Slice thickness adjustment up to 8 mm:
Adjustment range for automatic slice depos-
iting. The infinitely adjustable range is up to
8 mm.
Slice thickness adjustment above 8 mm:
For blade sharpening set slice thickness to
"24" or open until stop. Only possible after
removal of depositing device. Only possible
if slice thickness is unlocked.

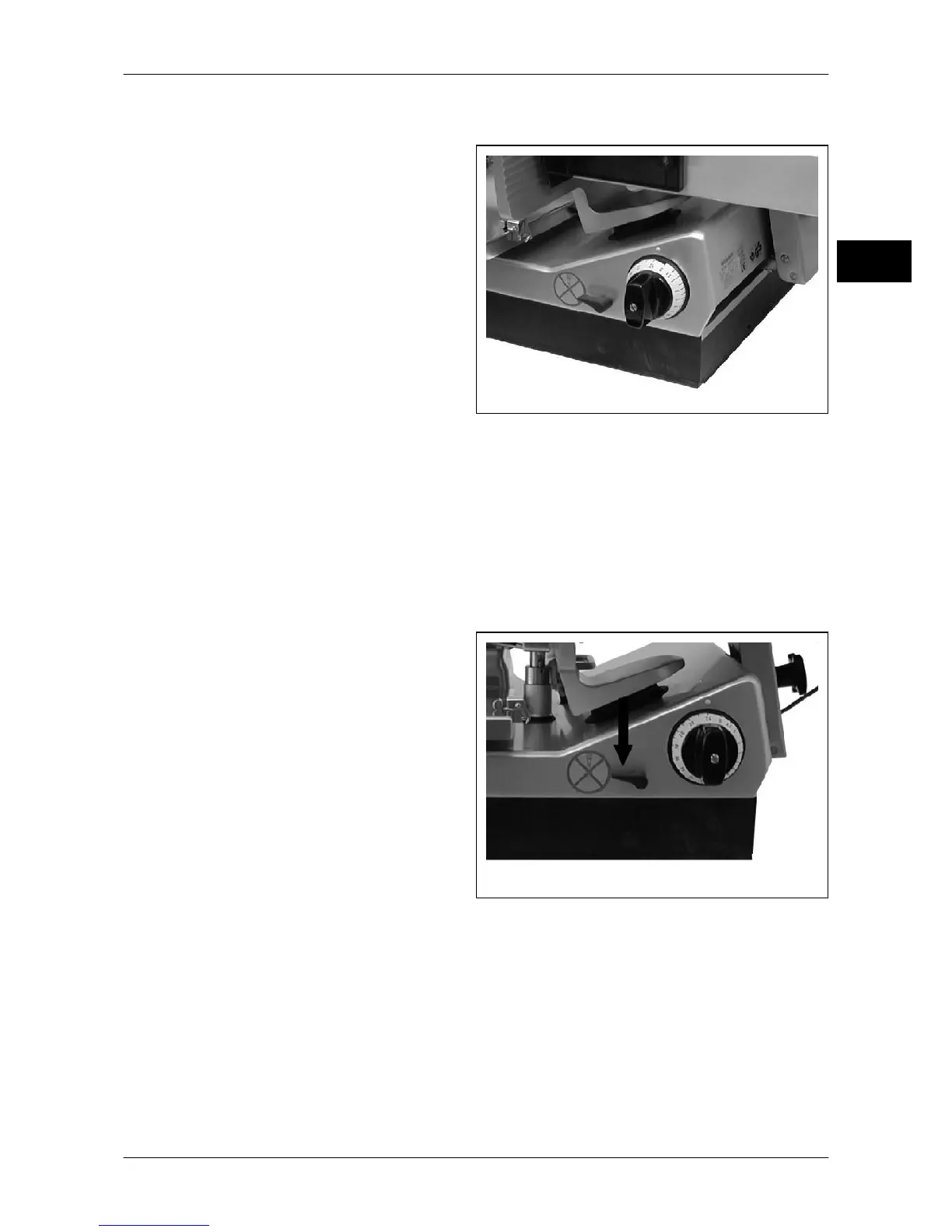

Fig. 8: Slice thickness setting
5.4 Unlocking of slice thickness control
Remove depositing arm and chain frame,
see chapter 8.2.
Turn the switch lever downwards. This re-
leases the mechanical locking.
Set slice thickness to "24". Release switch
lever.
The slice thickness is automatically re-
locked when the slice thickness control
knob is turned back to less than 8 mm.
Fig. 9: Unlocking of slice thickness control
