Operating instructions VS12D /C /-R /-V /-
V/R
Operation
6.083.98.5.10.10 en 6 - 1
6
6 Operation
Only products approved in compliance with the specifications of this
documentation may be sliced. See chapter on Intended Use.
6.1 Inserting and slicing product with the VS12D
WARNING Rotating blade!
Cut injuries
– Do not allow yourself to become distracted. Concentrate on the
task in hand and avoid time pressure.
– Do not put your hand underneath the remnant holder plate.
– During operation, do not reach into the path of the carriage.
– Never push product ends towards blade by hand.
CAUTION
There are spikes on the product holder!
Risk of injury.
– Use handle when working with product holder.
– Before you begin slicing, always position the product holder on or
behind the product.
Select operating mode, see chapter 5.2.
Move carriage towards operator.
Decouple product holder device with locking lever in automatic operation.
Using the handle, move product holder away from blade and tilt it up.

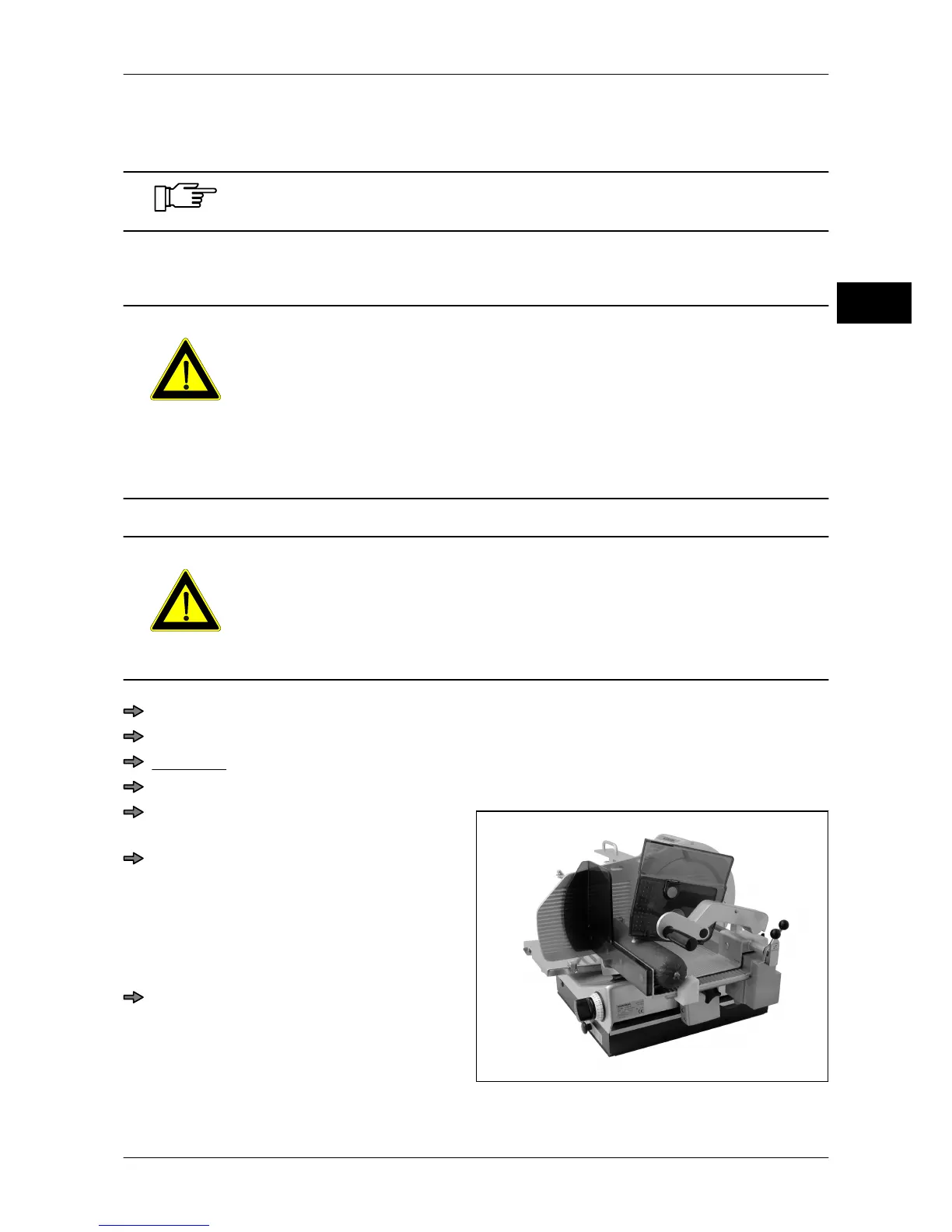

Fig. 16: Inserting the product
Place the product against carriage rear
wall and push on to gauge plate.
Position the product fixation against the
product.
In order to slice product ends approx. 15
mm and smaller, the product fixation de-
vice needs to be moved behind the rem-
nant holder.
Move the product holder to position it on
or behind the product.
