Technical data Operating instructions VS12D /C /-R /-V /-
V/R
9 - 2 6.083.98.5.10.10 en
9
Product size, diameter = min./max. 50/183 mm = 2"/7.2" with product depositing
= 224 mm = 8.9" w/o product depositing
Max. product height = min./max. 50 x 50/183 x 240 mm
= 2" x 2"/7.2" x 9.5" with product depositing
= 224 x 260 mm = 8.9" x 10.3" w/o product depositing
Slice thickness setting = 0.5 to 8 mm = 0.02" to 0.32" infinitely variable, with product
depositing
= 0.5 to 24 mm = 0.02" to 0.95" infinitely variable, w/o product
depositing
Types of current, voltag-
es, power consumptions
= see rating plate
Depositing table = 254 x 346 mm = 10" x 13.7"
Paper size 1/8 sheet = 250 x 375 mm = 9.9" x 14.8"
Foil size = 240 x 360 mm = 9.5" x 14.2"
Table travel = 160 mm = 6.3"
Round platter (optional) = 280 mm = 11.1"
9.2 Dimensions VS12D-V

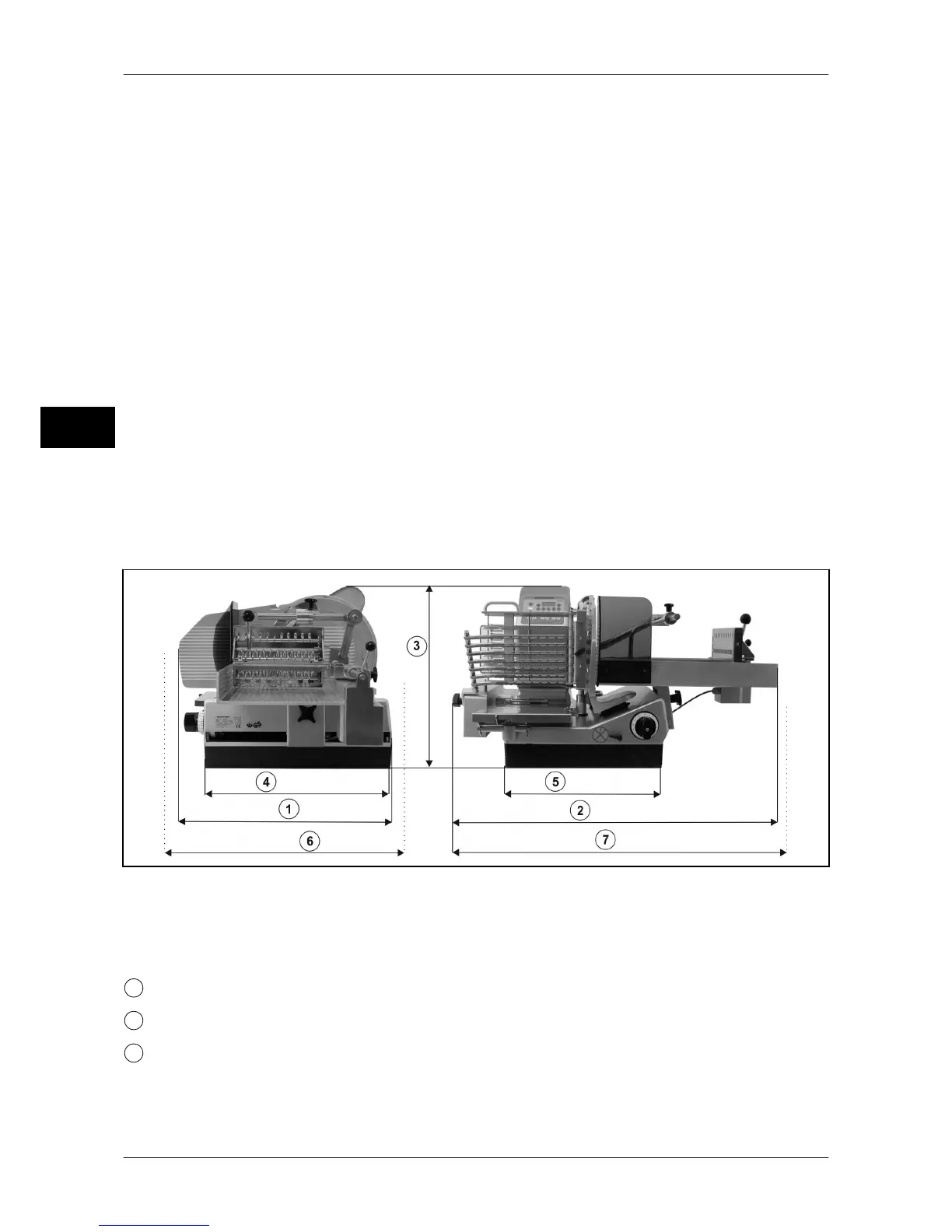

Fig. 70: VS12D-V, example
The machine is available in different versions. The figure shows an example:
Outer dimensions:
