Maintenance Operating instructions VS12D /C /-R /-V /-
V/R
8 - 2 6.083.98.5.10.10 en
8
8.2 Removing components
WARNING The round platter is equipped with magnets to ensure a fast and
easy mounting.
For fast and easy installation, the remnant holder is fixed to the
guiding shaft by means of a magnet lock.
If the distance to the magnet is lower than 50 mm, pacemakers can
be affected.
– People with pacemakers should consult a doctor before operating
the machine.
Do not place parts on top of each other to avoid mechanical damage.
Remove components as follows:
Depositing table

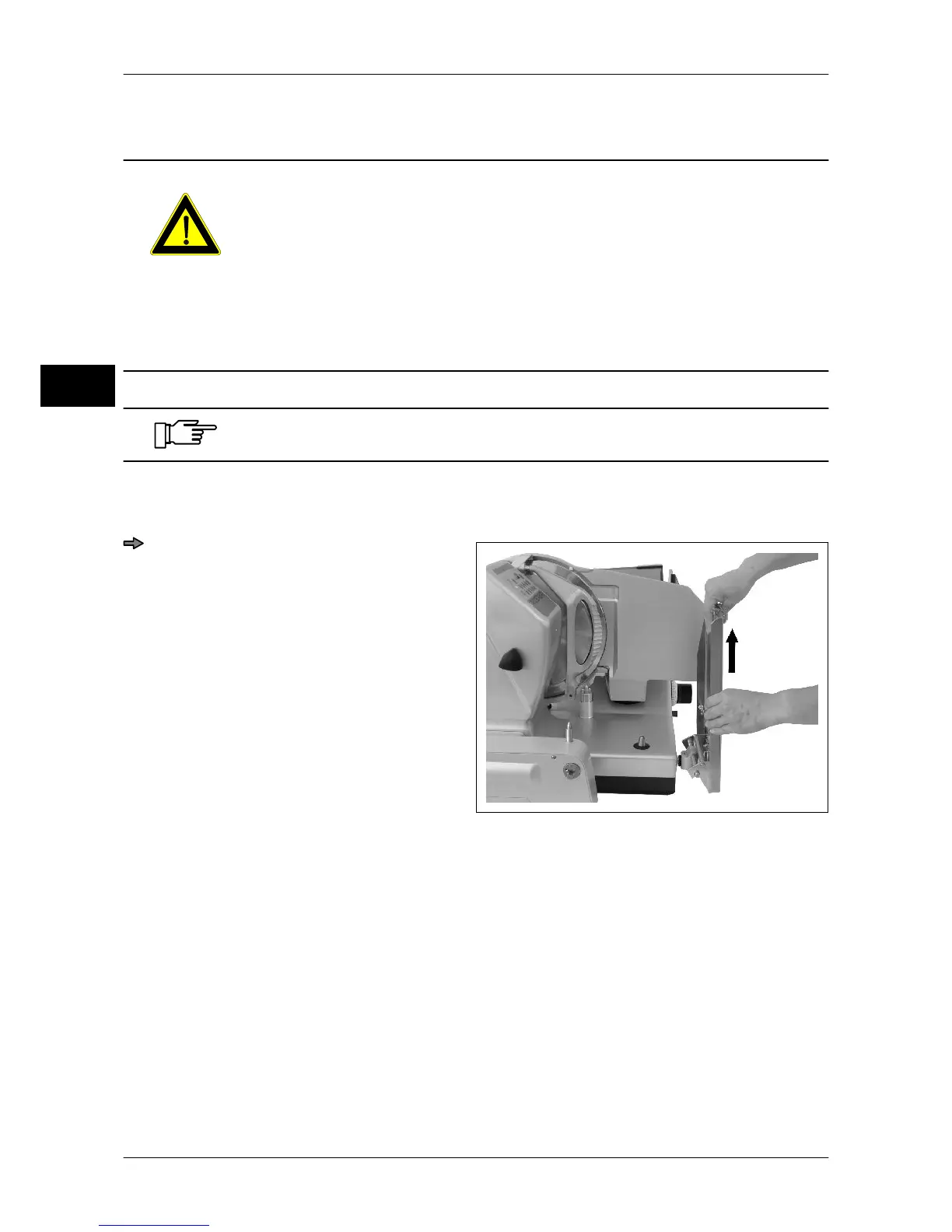

Fig. 27: Remove depositing table
Move depositing table towards you until
it stops, raise the depositing table to a
vertical position towards you and re-
move vertically.
