Operating instructions VS12D /C /-R /-V /-
V/R
Maintenance
6.083.98.5.10.10 en 8 - 3
8

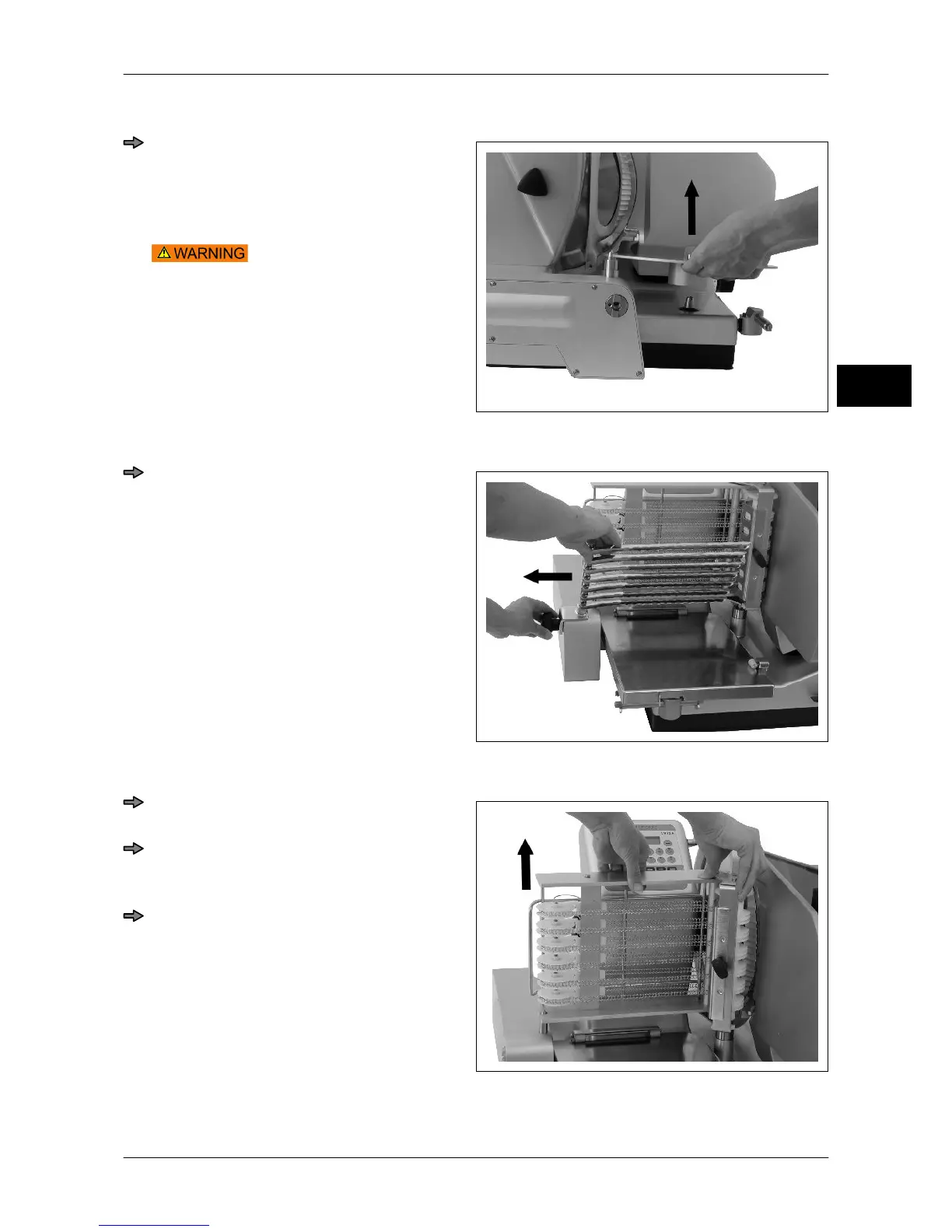

Round platter (optional)
Fig. 28: Round platter
Lift round platter out of guide shaft and
remove in upward direction
For quick and easy handling, the remnant
holder is attached to the pusher guard by
a magnet lock.
If the distance is less than
50 mm, pacemakers can be affected.
Depositing arm
Fig. 29: Depositing arm
Loosen three-square knob and pull the
hub of the depositing arm out of the
bearing to the left.
Chain frame
Fig. 30: Chain frame
Using the right hand turn the feed roller
to the left and hold it firmly.
Using the left hand lift the complete
chain frame out of the bearing in the up-
ward direction.
Put chain frame aside with rear side
downward.
