Maintenance Operating instructions VS12D /C /-R /-V /-
V/R
8 - 4 6.083.98.5.10.10 en
8

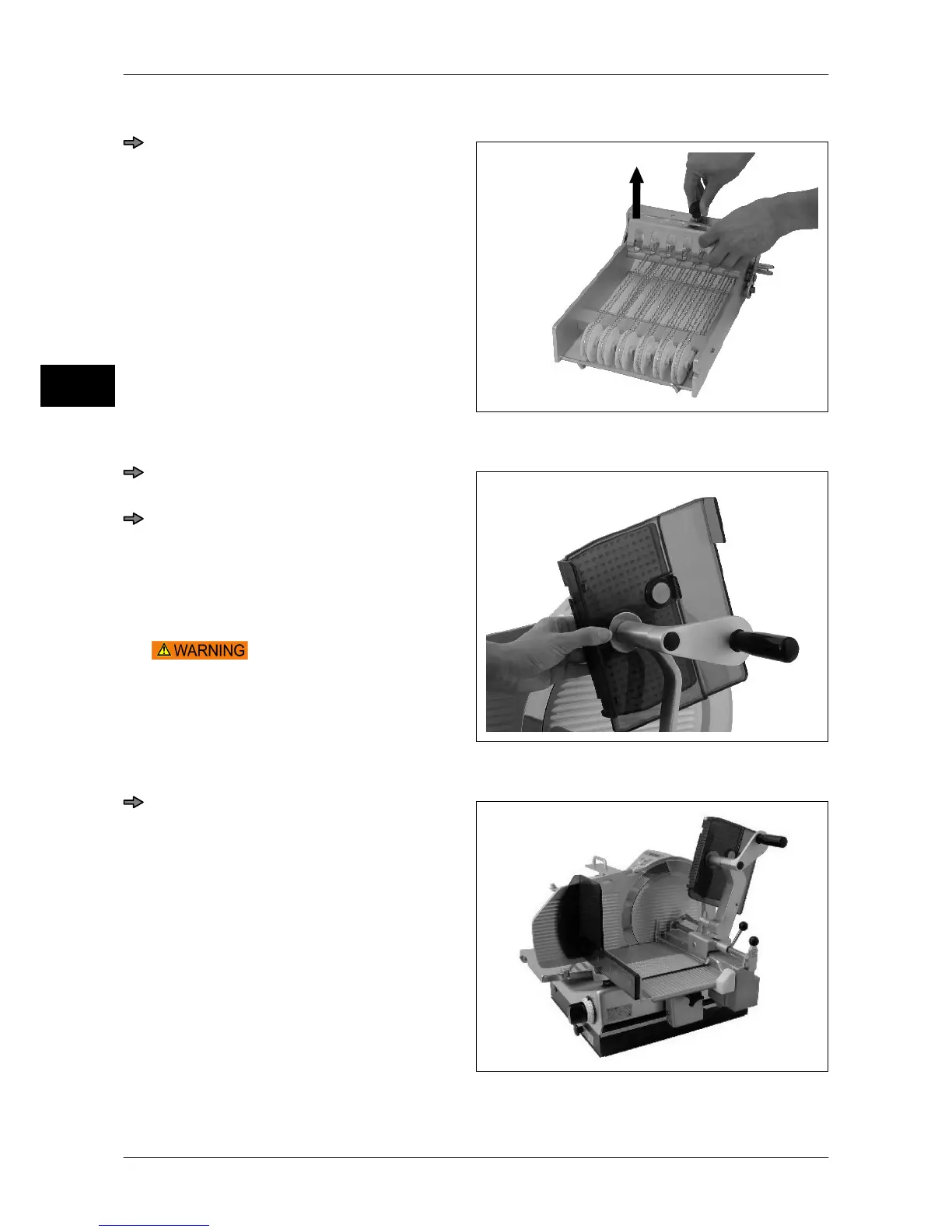

Guide cam
Fig. 31: Guide cam
Loosen the clamp handle on the frame
and remove guide cam from between
the transport chains.
Remnant holder plate VS12D
Fig. 32: Remnant holder plate VS12D
Using the handle, move product holder
away from blade and tilt it up.
Push remnant holder plate out of mag-
netic lock and remove from pusher
guard.
For quick and easy handling, the remnant
holder is attached to the pusher guard by
a magnet lock.
If the distance is less than
50 mm, pacemakers can be affected.
Product fixation device VS12D
Fig. 33: Product fixation device VS12D
Pull the product holder fixation as far as
it will go towards the operator and pull
off the guide shaft, moving it to the right.
