1.3 Product Dimensions
The 9115, 9115-AT, and 9116 power supply’s dimensions (WxHxD) are approximately 414.5 mm
x 44.5 mm x 483.2 mm (16.29” x 1.75” x 19.02”). It is designed to fit in a standard 19-inch
rackmount and is of 1U size.
Note: All dimensions in the figures below are measured in millimeters (mm).

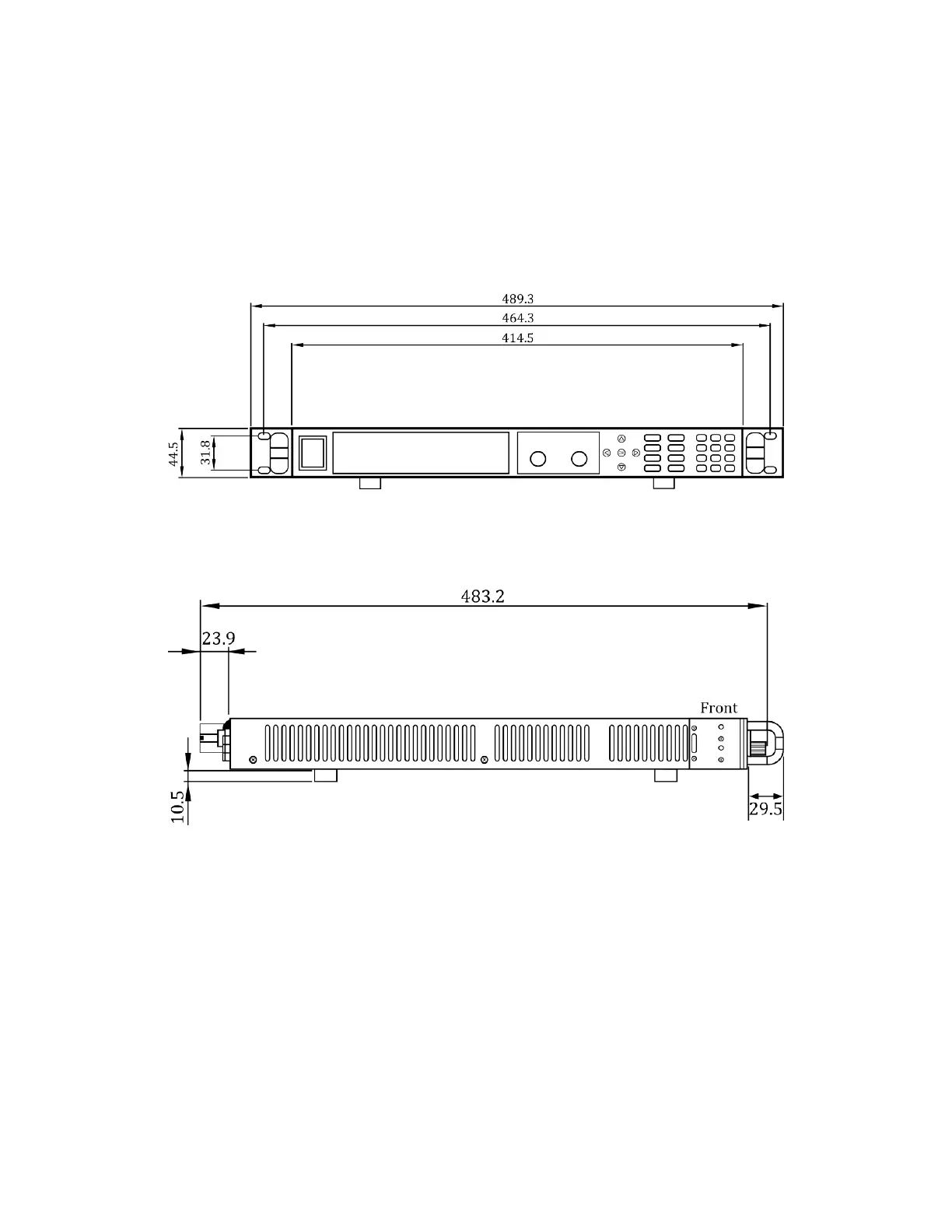

Figure 1.1 - Front Panel View for 9115/9115-AT/9116
Figure 1.2 – Side View for 9115/9115-AT/9116
