13

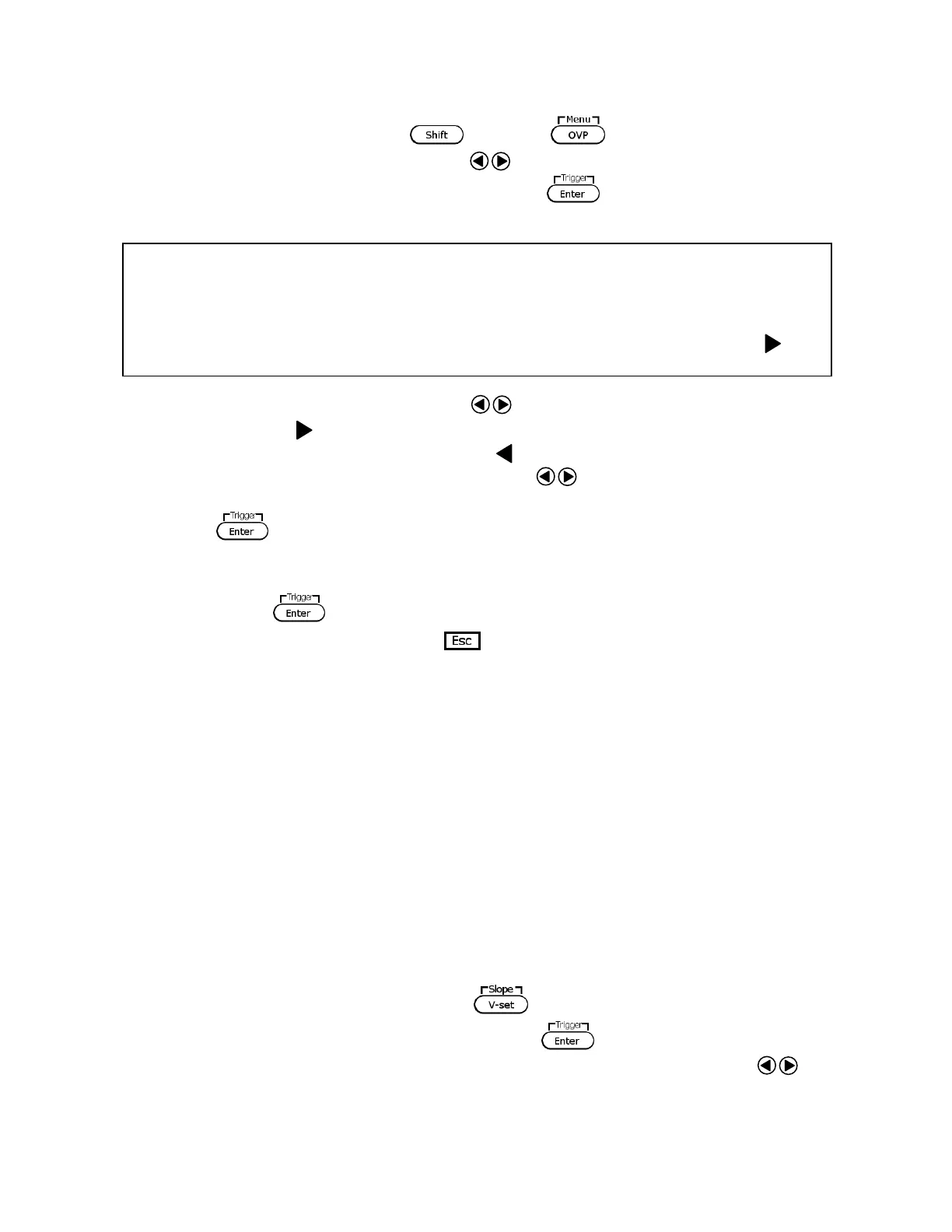

1. From the normal display, press and press to enter the menu.
2. The selected item will be blinking. Use keys to move through the menu selections.
3. When the desired menu section is blinking, press to access its menu settings.
4. Below is the display when SYSTEM is selected.
5. The selected item will be blinking. Use keys to move through the menu items.
When there is a on the right side of the display, that means there are more menu
items available to select from. Similarly, a will appear on the left side of the display
when there are menu items to the left. Use the keys accordingly to select the
desired menu item.
6. Press to access the selected menu item.
7. There may be parameters or options to select within each menu item. Follow the same
instructions as described in the previous steps to select them. To save changes to a
setting, press .
8. To exit the menu at any time, press twice.
3.2 Configure Voltage and Current Output
Voltage and current can be set from the front panel. Remote sense is also available on the rear
panel for voltage compensation at the output.
Setting Voltage
Follow the steps below to set the output voltage:
1. From the normal front panel display, users can use either the voltage adjust knob or the
numeric keypad to enter the setting voltage.
2. If entering using numeric keypad, press first so that the cursor selects the
voltage display. Then, enter the value and press to set the voltage.
3. To change the cursor position to adjust with the voltage adjust knob, use the keys
to move left or right.
