3. Press the key to select Slave or Master. Use the keys to select between the
two options. Select Master to set the power supply as a master, or select Slave to set
the power supply as a slave. Always set the Slave supplies first and Master supply last.
4. Press the key to select Addr…. Press and the display will prompt to enter an
address. Use the numeric keypad to enter an Address, which must be different than all
other power supplies that you want to connect together in parallel. Enter any number
between 0 – 31.
5. Press to save the changes.
6. Exit the menu by pressing several times.
3.5 Program Sequence Mode (List mode)
The power supply has a list mode feature that allows storing programmed sequences into
internal non-volatile memory and recalling and running them per configured parameters. A
total of 10 steps can be configured for each sequence, and a total of 10 sequences are available
for storage. Additionally, multiple sequences or all 10 sequences can be saved into a program
configuration, where each program configuration allows running one sequence after another.
This allows for a total maximum of 100 steps in one program configuration. Up to 10 program
configurations can be saved and recalled to and from the non-volatile memory. Below is an
illustration of how programmed sequences are structured, stored, and recalled.
Step 1..
Step 2..
..
Step 1..
Step 2..
..
Sequence #1
Sequence #2
..
Sequence #10
Sequence #2
Sequence #5
Sequence #7
Sequence #8
Program #

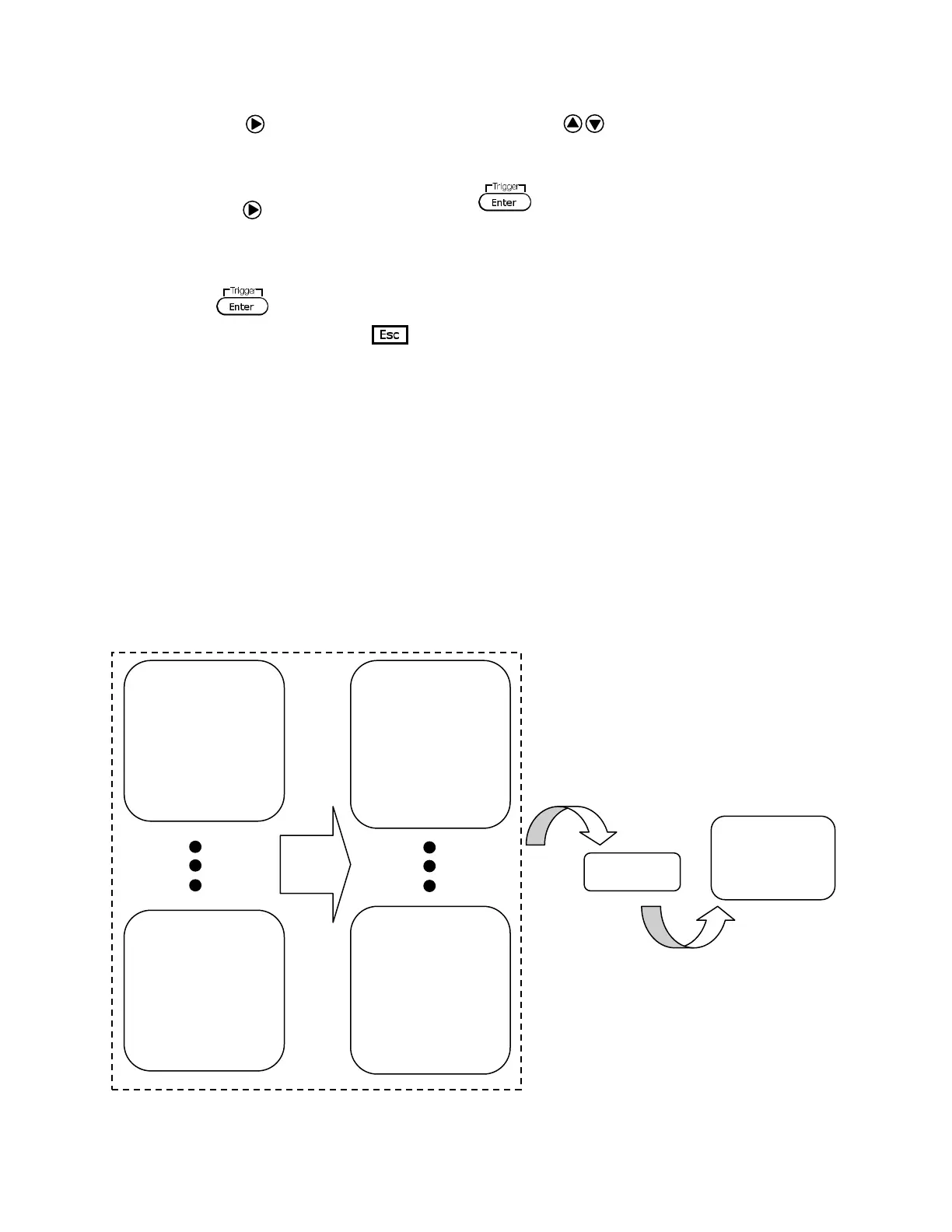

Figure 3.6 – List Mode Illustration
