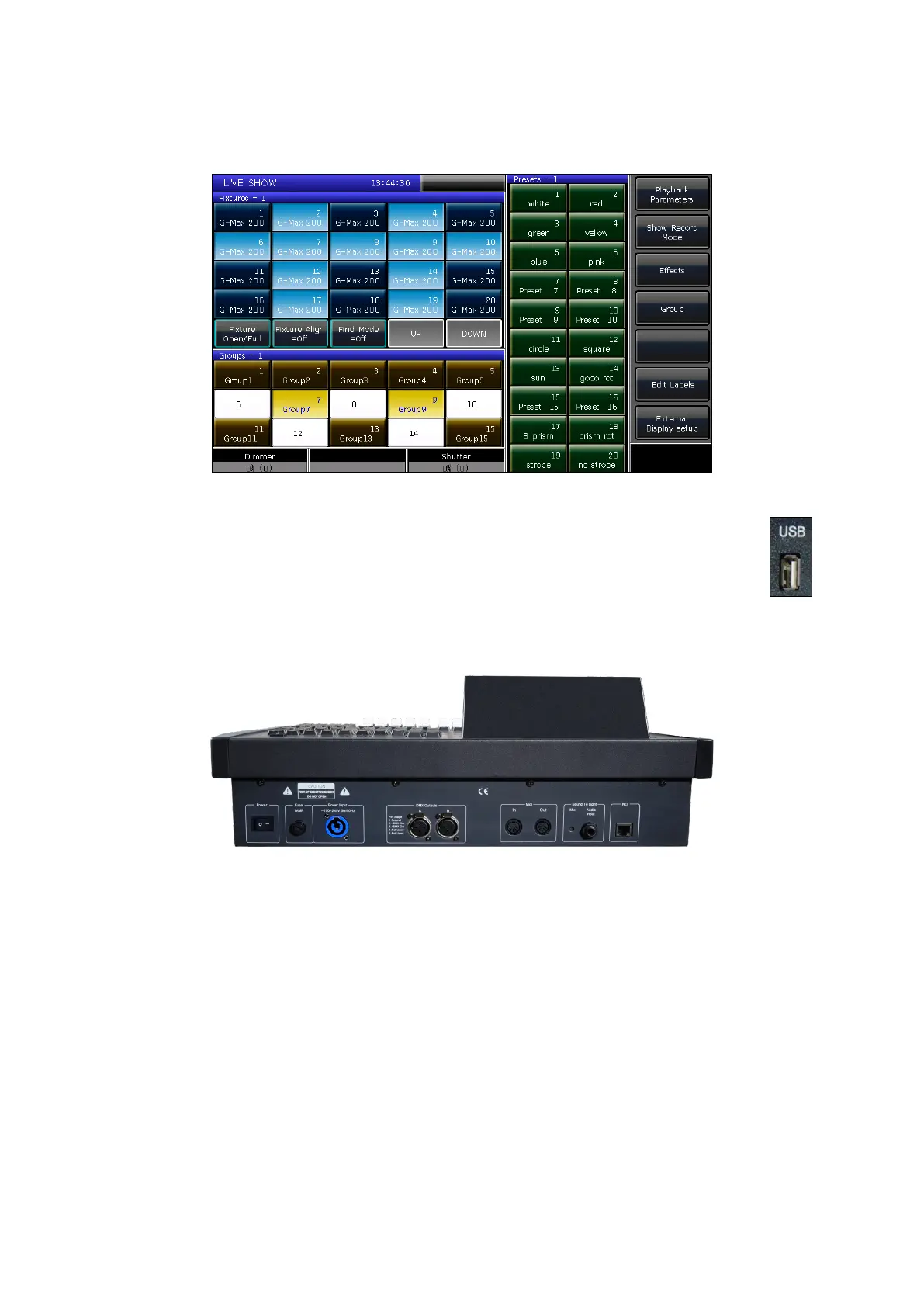

2.1.9 Touch Screen
There is a 7-inch TFT-LCD touch screen that oers soft keys for operating, such as selecting xtures, groups, presets and
menu options.
2.1.10 USB Interface
This controller oers a USB interface on the top left side of the console that can be used for backing
up shows, xture libraries, and system version upgrades.
2.2 The Rear Panel
2.2.1 DMX Universes
This controller can output 2 universes (1,024 channels) of DMX signal using its DMX outputs (A/B), sending out 512
control channels per output. DMX Output A will output A001 - A512, and DMX Output B will output B001-B512.
2.2.2 Art-Net Interface
The network interface allows up to 4 universes (2,048 channels) of DMX signal output via network cable.
2.2.3 MIDI Interface
This unit can be controlled by MIDI signals, or it can send out MIDI signal to control another one. More information about
this functionality will be introduced in a later chapter.
