2.0 Setting up the Bluelab Pro Controller

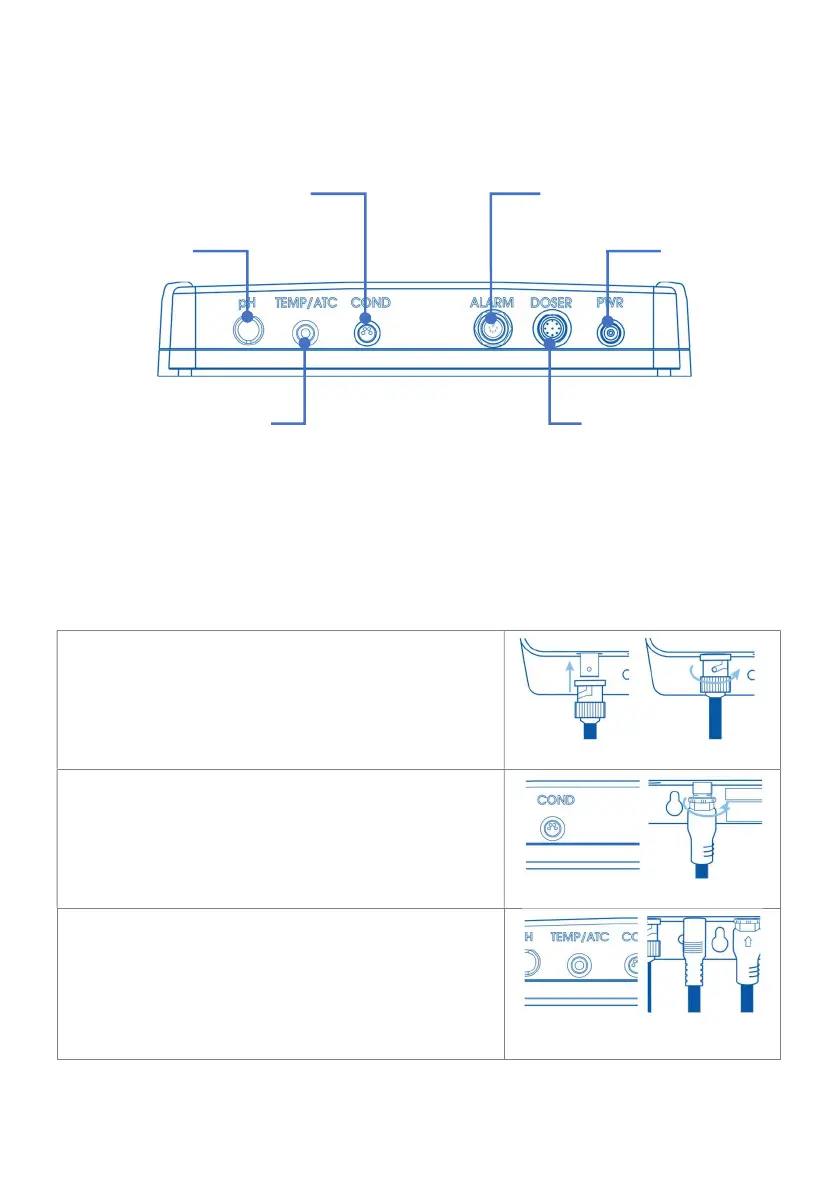

2.1 Bluelab Pro Controller connection panel
2.2 Connect the probes
It is recommended to test the Bluelab Pro Controller prior to mounting. Attach all three
probes to the controller, plug in the power adaptor, place probes into solution and wait
a few minutes for the readings to stabilise.
pH Probe
Line up the lugs of the BNC probe connector with
the receptacle on the Bluelab Pro Controller
labelled ‘pH’.
Fasten securely by pushing the pH probe
connector on and twisting one quarter turn.
Conductivity Probe
Line up the four-pin connector on the conductivity
probe with the receptacle on the Bluelab Pro
Controller labelled ‘COND’. Push and screw the
collar fully into the receptacle.
Temperature Probe
Fully insert the temperature probe connector into
the Bluelab Pro Controller receptacle marked
‘TEMP/ATC’.
Push connector
Twist & attach
Line up four pins
Push & twist
Temp/ATC
connector
Twist & attach
Alarm connector
Main power
connector
Doser connector
Temperature
probe connector
pH probe
connector
Conductivity
probe connector
