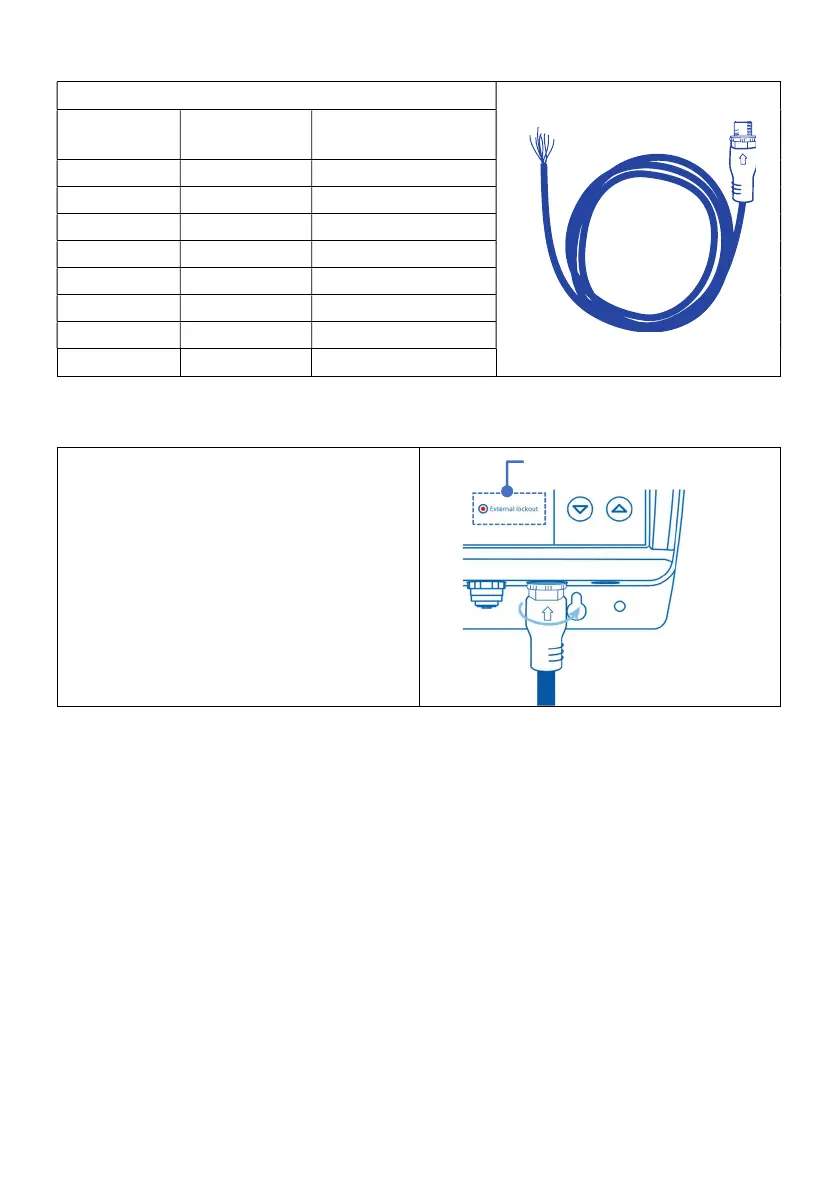

Alarm Cable wire key
Connector
Pin #
Wire colour
Function
1
White
NO
lockout
switch
2
Brown
NC
lockout
switch
3
Green
Cable
sense
4
Yellow
Ground
5
Grey
Alarm
relay
NO
6
Pink
Alarm
relay
COM
7
Blue
Not
used
8
Red
Not
used
4.3 External lockout indicator
E
xternal lockout
The LED indicator is lit when a lockout
condition is sensed via the alarm and
external lockout cable. When sensed, all
dosing will be stopped.
External lockout indicator
