10 BA-106/1EA M53.10XX

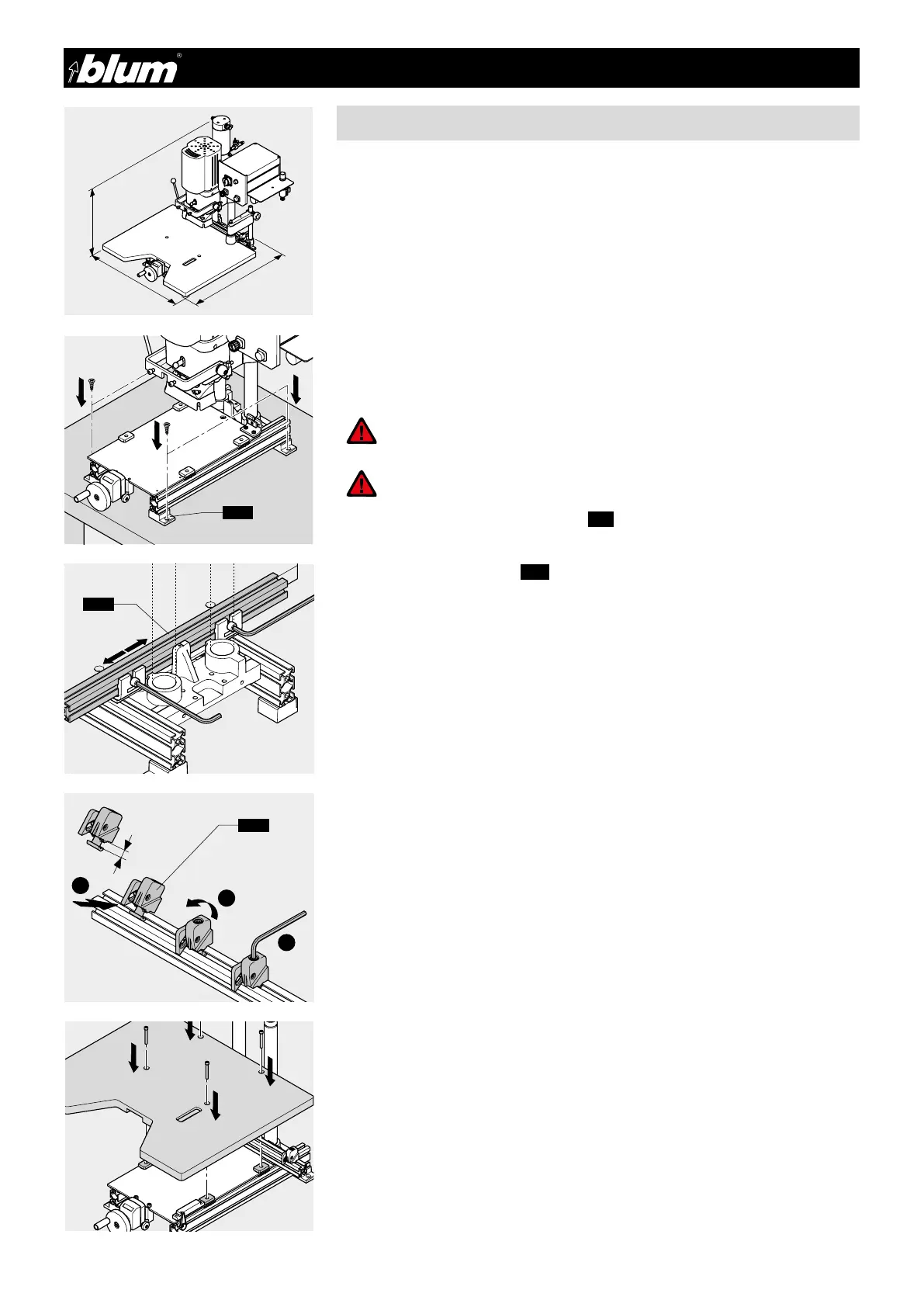

2.1 - Unpacking and assembly
2 - Machine setup
2.1.1) Machine space requirement
Height (H) = 30-3/8" (771 mm)
Width (W) = 27" (684 mm)
Depth (D) = 27-1/4" (690 mm)
2.1.2) Unpacking machine and attaching to a suitable table
• Open box
• Use two people to lift the machine onto the work table
2.1.3) Positioning base ruler (2.2)
• Place ruler on mounting bracket
• Line up the "0" mark on the center ruler with the "0" mark on the machine base
• Clamp ruler
2.1.4) Attaching ruler stops
• Loosen clamping screw until the location plate protrudes 10 mm
• Attach ruler stop to ruler at an angle and stand upright
• Tighten clamping screw
2.1.5) Attaching work table
a) Work table (Blum reference number MZA.5300)
• Set work table on runner plate
• Attach work table to runner plate
b) For details of
how to construct a work table, see Chapter 9
• Pre-drill holes and then attach machine (2.1) using the proper screws/bolts.
ATTENTION:
The machine weighs approx. 101 lbs.
The table or stand must be of sufcient stability to accommodate this
The machine should not be set up in a wet environment. The area must
be dry.
IMPORTANT:
This procedure can also be used to set a stop between two already
installed stops.
IMPORTANT:
With plastic spacers installed, the distance between the top of the
ruler and the top of the worktable is 6.6 mm. Without the spacers the
difference is 13.6 mm (for work pieces with a prole edge)
!
!
