12 BA-106/1EA M53.10XX
2 - Machine setup
2.4 - Dust extraction
2.3.3) Correcting motor rotation
ATTENTION:
To minimize the risk of re this machine must be connected to a dust
extraction system!

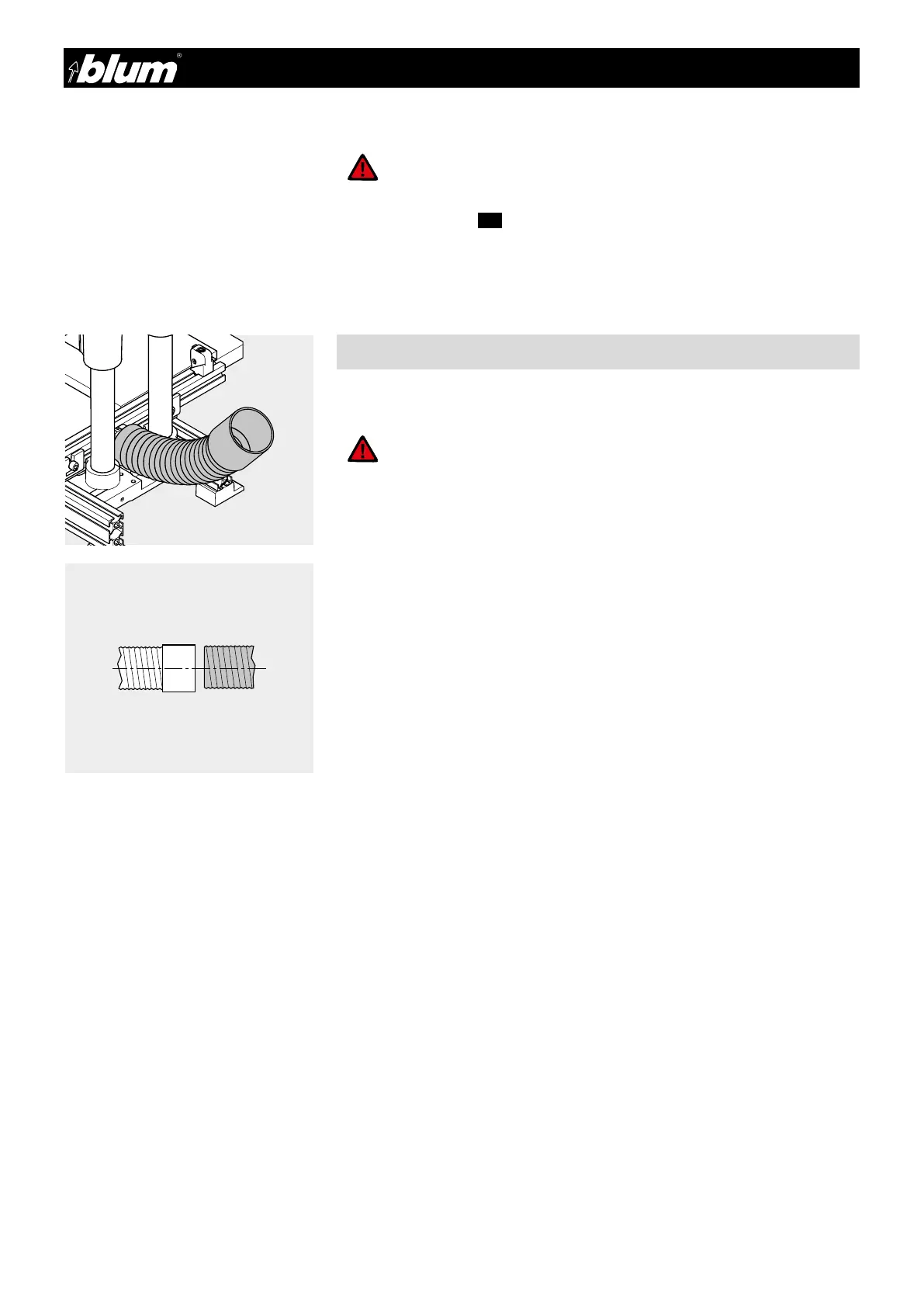

2.4.1) Connecting extraction system to the machine
• Make sure that the average air velocity for the extraction system is at least 66 ft/sec.
• Insert the spiral hose with an inside diameter of approx. 3.75 inches into the receiving
tube and secure it.
If the motor rotation is wrong:
• Set drill motor power (3.1) to OFF
• Disconnect machine from power supply
• Switch L1 and L2 at plug connections
• Re-check the motor rotation.
ATTENTION:
The electrical connection must be performed by a qualied electrician!
