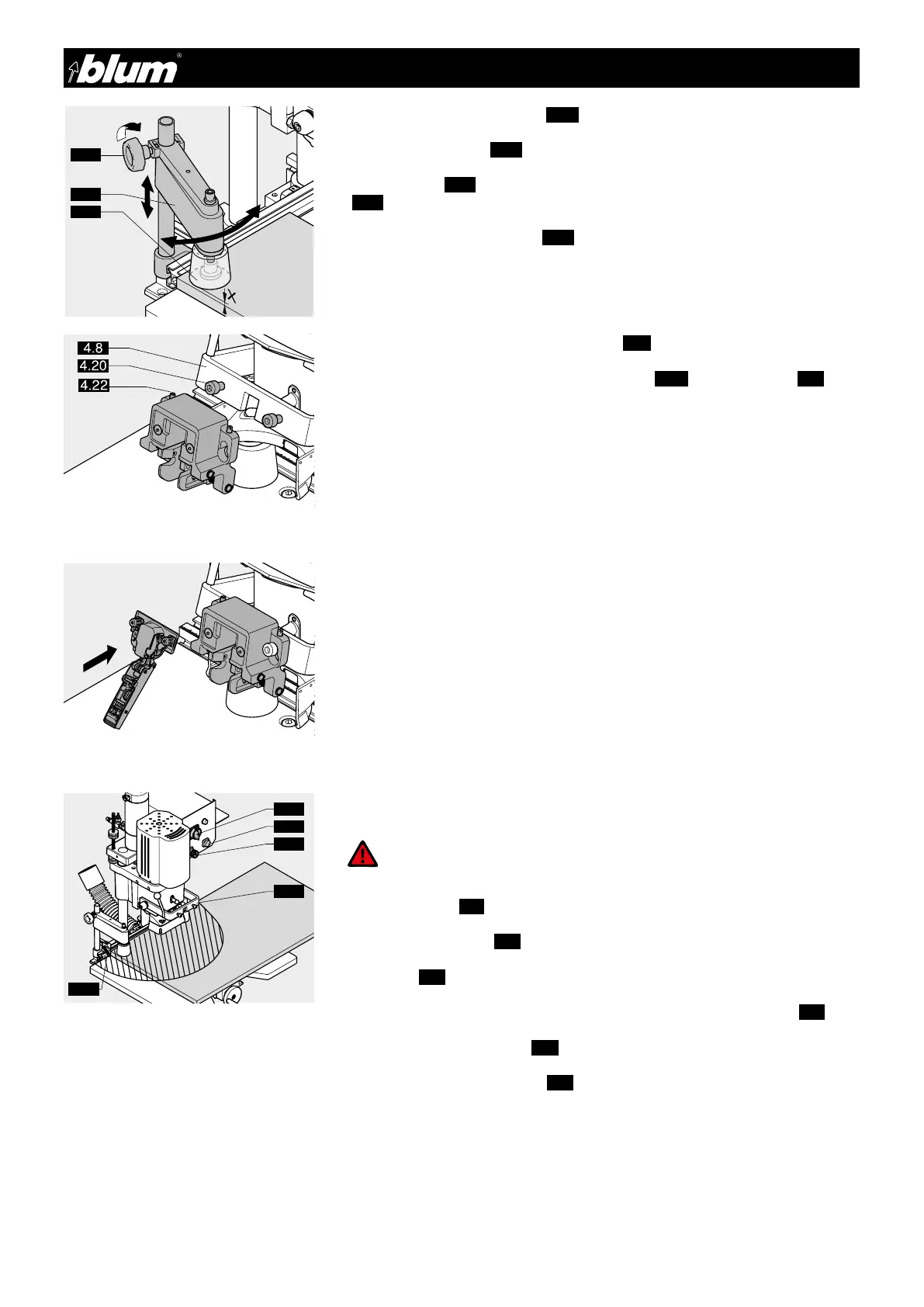

17 BA-106/1EA M53.10XX
4 - Concealed hinge installation
4.1.15) Setting clamps (optional) (4.17) to the material thickness
• Loosen clamping knob (4.18) .
• Set the clamps (4.17) so that the distance between the door and the clamp guard
(4.19) is a max. x = 1/8” / 3 mm.
• Tighten clamping knob by hand (4.18)
4.1.16) Attaching insertion ram to swing arm (4.8)
• Place insertion ram on to the two mounting screws (4.20) on the swing arm (4.8) .
• Tighten the screws so that the insertion ram is secure.
4.1.17) Clipping concealed hinge on to the insertion ram
4.1.18) Boring
• Drill power switch (3.1) to ON
• Clamp button (optional) (3.3) to pos. “Auto”
• Swing arm (4.8) must be swivelled up.
• Hold down door outside of danger area (A) and press against the ruler stop (2.7) .
• Press drill/press stroke button (3.2) until boring depth is reached.
• Release drill/press stroke button (3.2).
ATTENTION:
All items except for the work piece should be removed from the work
area of the machine. Keep your hands out of work area (A).
