18 BA-106/1EA M53.10XX
4 - Concealed hinge installation

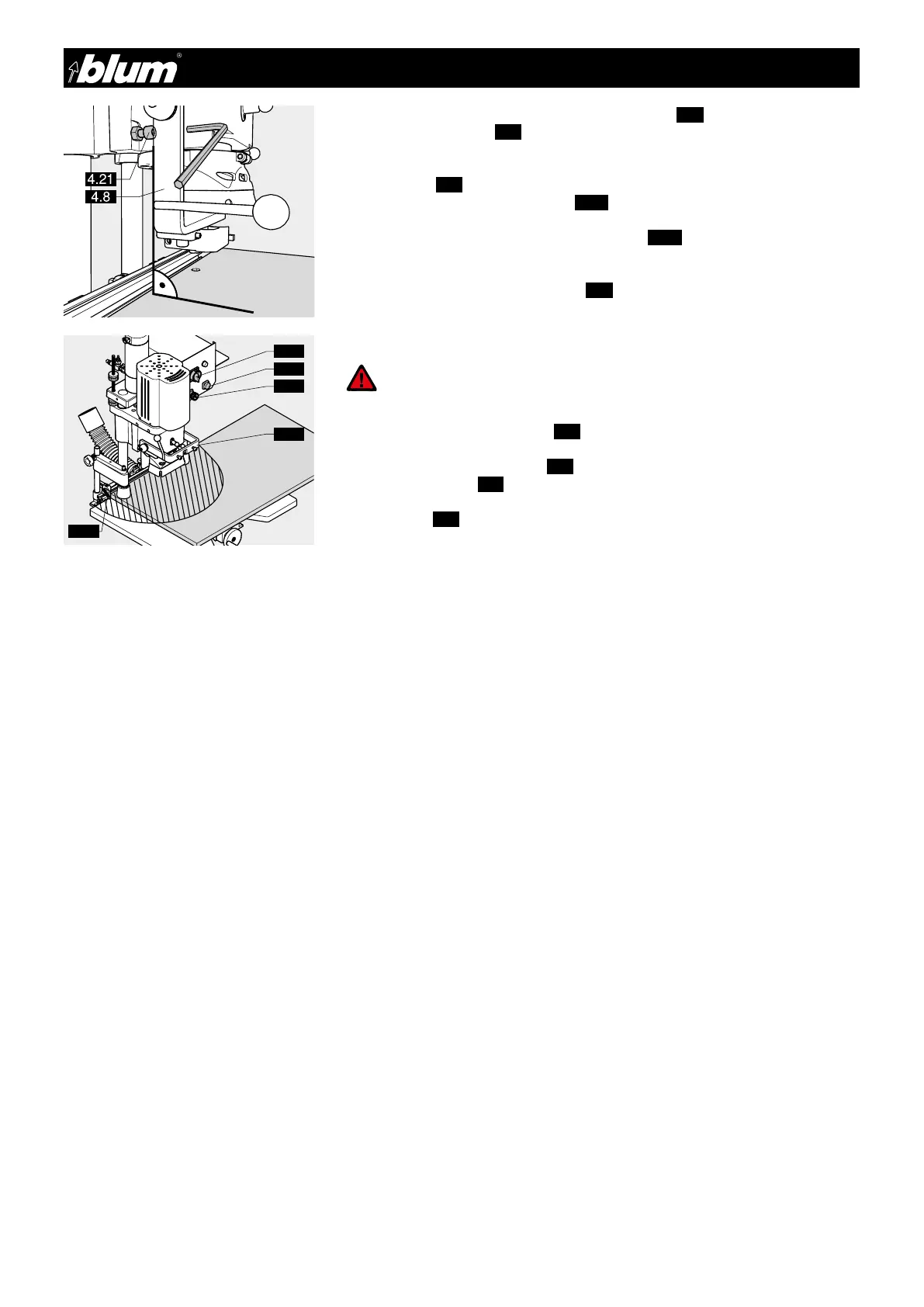

4.1.19) Checking the tilt adjustment of the swing arm (4.8)
• Swivel down swing arm (4.8) to the stop.
• Check whether or not the concealed hinge is aligned with the bored holes.
• If it is misaligned, this can be caused by two things:
a) Swivel arm (4.8) is not set vertical.
- Use the screw to correct this setting (4.21)
b) Insertion ram is off-center:
- Correct this setting using the adjustment screws (4.22) on the insertion ram.
4.1.20) Inserting the concealed hinge
IMPORTANT:
If the drill/press stroke button (3.2) is only lightly pressed a few
millimeters, the boring unit moves downwards at creep speed.
• Press the drill/press stroke button (3.2) until the concealed hinge is inserted
completely.
• Release drill/press stroke button (3.2).
• Swivel up swing arm (4.8) .
• Loosen the clamps by pressing the
clamp button (3.3)
• Remove door from the work table or push to the next stop.
ATTENTION:
All items except for the work piece should be removed from the work
area of the machine. Keep your hands out of work area (A).
!
