16 BA-106/1EA M53.10XX
4 - Concealed hinge installation

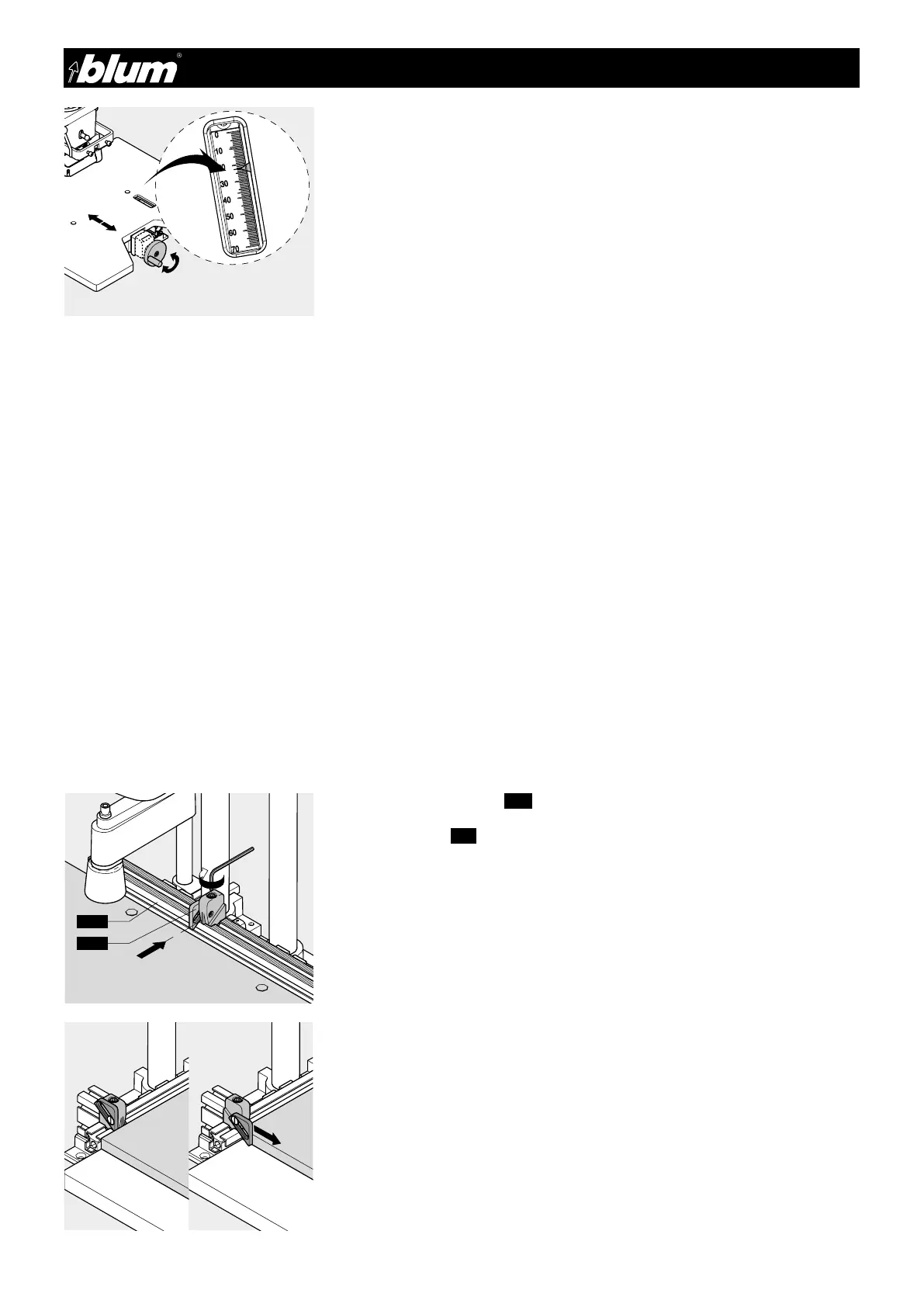

4.1.11) Setting the boring distance
• Set the desired dimension using the hand wheel
• Example: CLP - 23.5 mm
Symbols:
5,0 SP7 Line - boring with MZK.1000, 7 spindle boring head
9,0 BOX METABOX / TANDEMBOX
20,5 COM COMPACT - hinge
23,5 CLP CLIP - hinge
37 SYS Line - boring
4.1.14) Placing door on the work table and pushing up against the stop
4.1.12) Calibration of boring distance
• Scale and digital counter (optional)
• Set the machine in setup mode
• Install drill bits for hinges
• Set boring distance to 20 mm
• Cycle machine down to test workpiece
• Measure the distance from the edge of the work piece to the center of the mark left
by the center point of the 35 mm bit. If the dimensions are not the same then loosen
the bolt that holds down the orange plactic pointer to the machine. Adjust so that it
points to the correct mark.
• If the machine has a digital counter (optional) and the displayed number is not the
same as the dimension then loosen the set screw on the stop collar while keeping
the orange plactic handle from turning. Rotate the stop collar until the correct number
is displayed and retighten the set screw.
4.1.13) Setting ruler stops (2.7)
Set the ruler stops (2.7) to the desired dimension and clamp.
IMPORTANT:
Indicator edge is on the inside of the sliding part.
!
