Disassembling the battery pack, replacing cells, attempting to recharge non-rechargeable
batteries or using unsuitable chargers can cause serious damage to the battery, things and
people.
B.M. Tecnologie Industriali is not liable for any damage caused by incorrect installation and/or
use.
6.1 Internal connectors and power selector
Inside the Bjong there are two power connectors (3.6Vdc e 8…24Vdc) and a power selector.
The connection of any internal battery and the proper setting of the selector are made according to the
customer request, so no need to be changed. If necessary, it is possible to proceed to select different
power source.

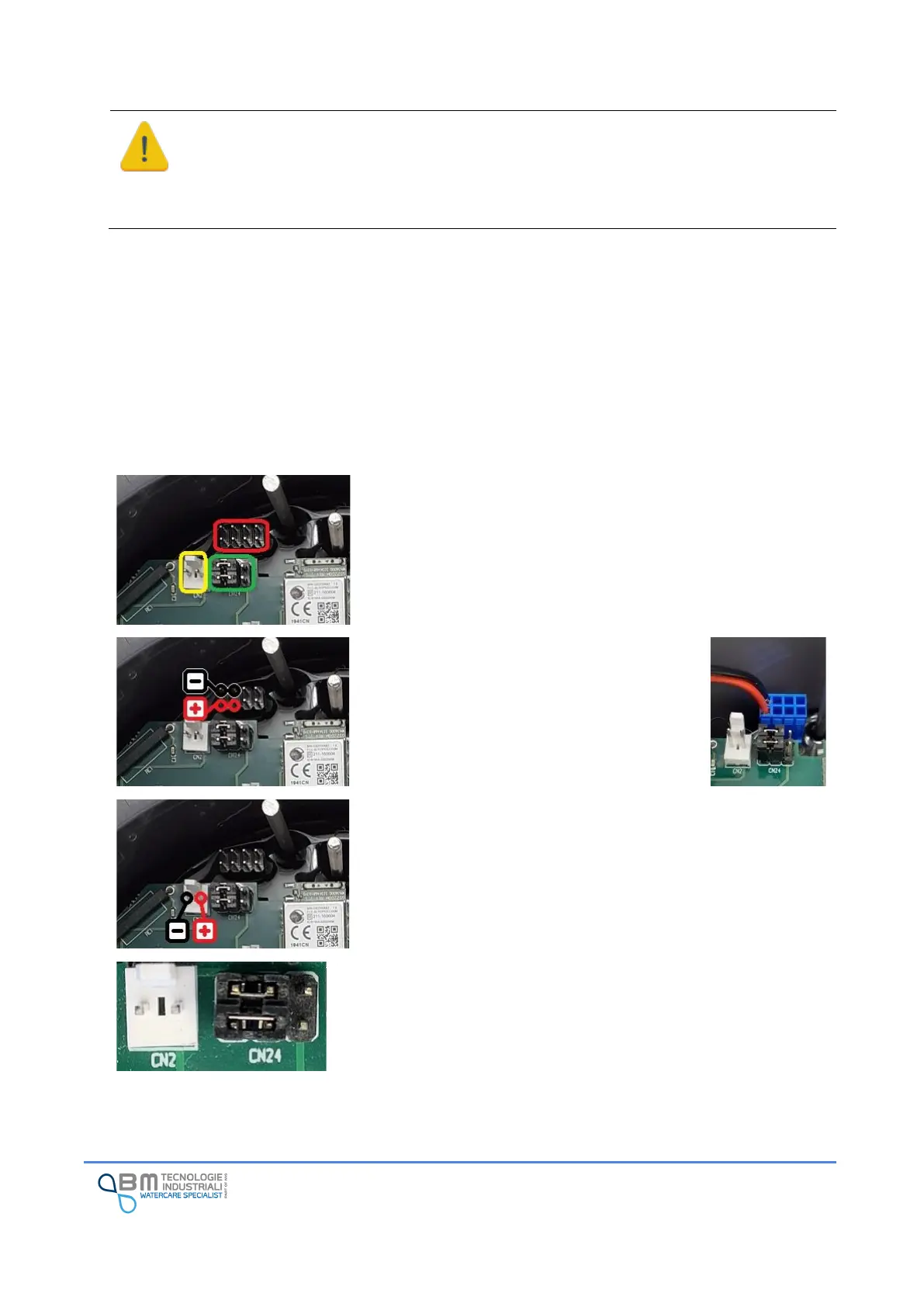

The elements necessary for powering the instrument are highlighted below:
✓ RED: 8..24Vdc power connector (internal or external)
✓ YELLOW: internal 3.6Vdc power connector
✓ GREEN: power selector
Through the connector highlighted on the left, it
is possible to power the Bjong with a voltage in
the 8..24Vdc range.
Pay attention to respect the polarity.
On the right, example of installation of the
connector of the batteries supplied.
Through the connector highlighted in the figure, it is possible to
power the Bjong with a voltage of 3.6Vdc.
Pay attention to respect the indicated polarity.
Set the jumpers as shown in the figure to use the internal battery or
the external power source connected to the POWER SUPPLY
connector with reference voltage 8..24Vdc.
