Rear footrest holder to
rear frame
28 Nm

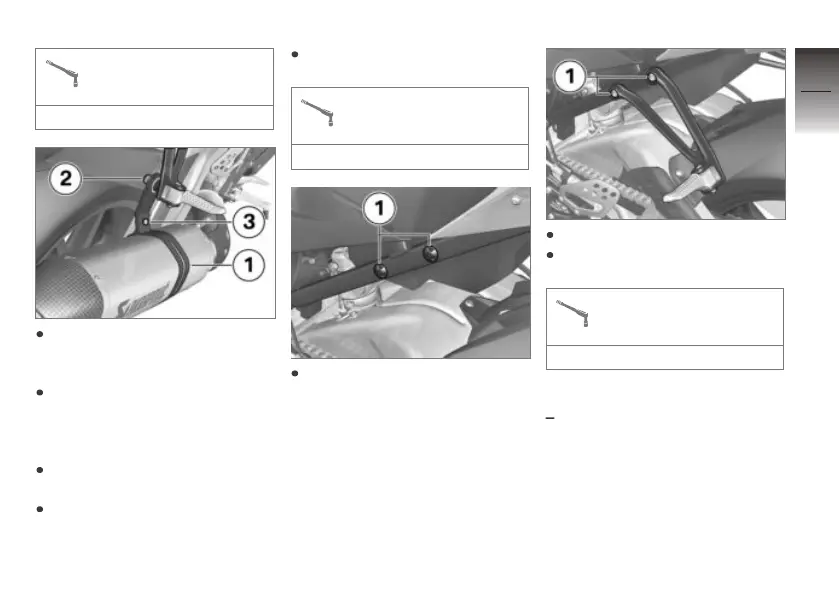

Stretch out retaining strap 1
and pull backwards over the
silencer.
Align the retaining strap and
silencer; slip the washer, retain-
ing strap and second washer
on to the footrest screw.
Install nut 2, but do not tighten
it at this point.
Install screw 3.
Tighten nut 2 to the specified
tightening torque.
Silencer clamp on
bracket
20 Nm
Remove screw hole covers 1.
Hold footrest.
Install screws 1 and tighten to
the specified tightening torque.
Rear footrest holder to
rear frame
28 Nm
BMW Motorrad ABS Pro
with ABS Pro
OA
Ever since it introduced Race
ABS, BMW Motorrad has been
able to offer ABS tailored to the
specific needs and preferences
of supersport riders. ABS Pro
is an evolved functionality
8
127
z
