with Competition Kit
OE

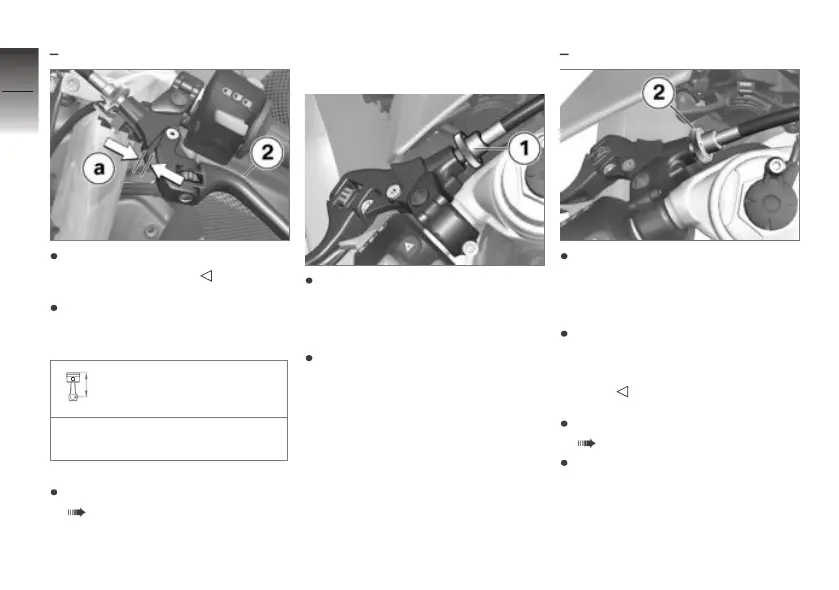

Pull clutch lever 2 until resist-
ance is perceptible.
In this position, measure clutch
play a between the handlebar
fitting and the clutch lever.
Clutch-lever play
0.5...1.0 mm (at the handlebar
fitting, with engine cold)
Clutch play is out of tolerance:
Adjust the clutch-lever play
( 140).
Adjust the clutch-lever
play
To increase clutch play: turn
screw 1 in the tightening dir-
ection, i.e. into the handlebar
fitting.
To reduce clutch play: turn
screw 1 in the loosening direc-
tion, i.e. out of the handlebar
fitting.
with Competition Kit
OE
To increase clutch play: turn
screw 2 in the tightening dir-
ection, i.e. into the handlebar
fitting.
To reduce clutch play: turn
screw 2 in the loosening direc-
tion, i.e. out of the handlebar
fitting.
Checking clutch-lever play
( 139).
Repeat the steps in this pro-
cedure until clutch play is set
correctly.
9
140
z
Maintenance
