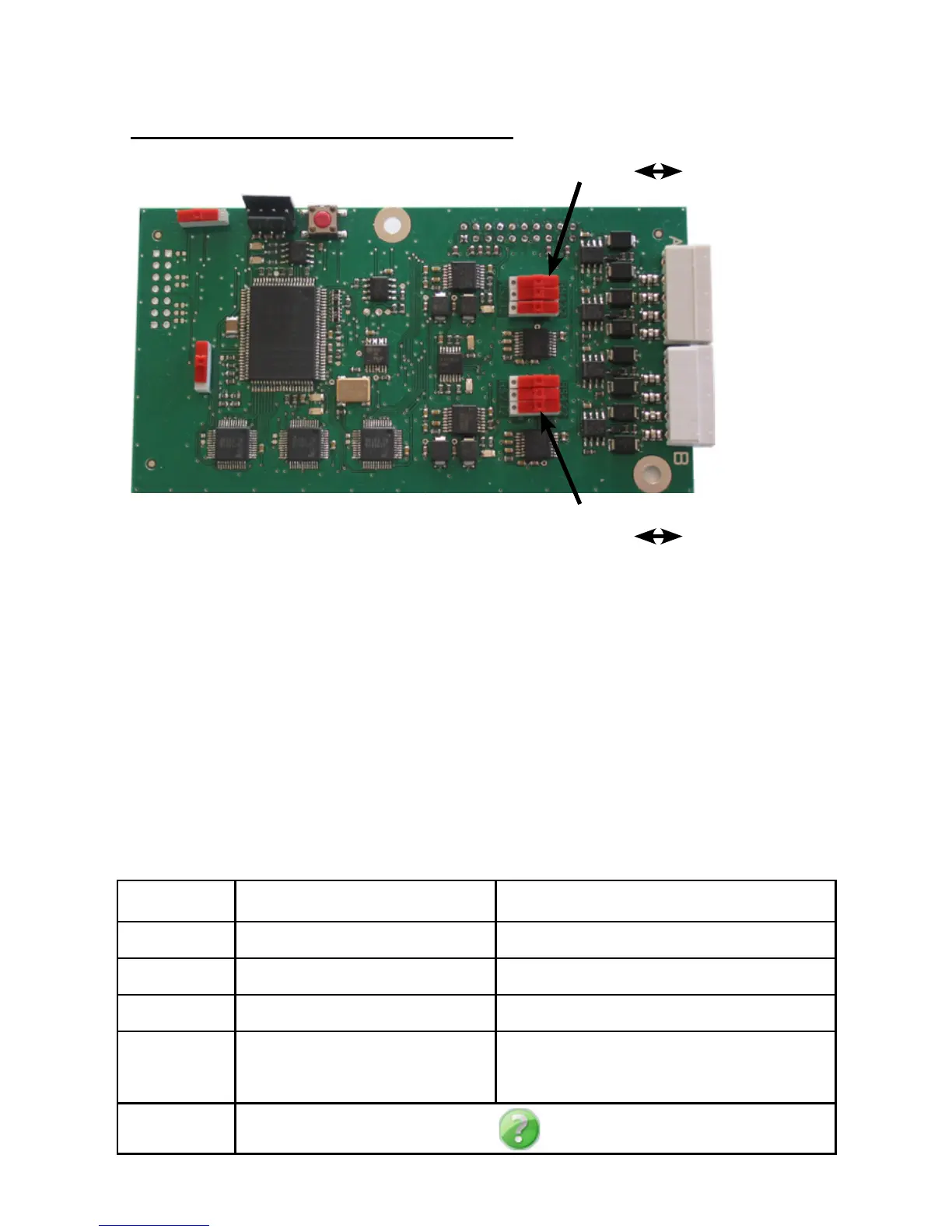

14.3 Option board with 2 ASCII outputs
This option board has 2 ASCII outputs which can be congured in RS232 or
RS422 (RS485) mode. To change the conguration, push the 3 DIP switches
to the desired position.
Connect the lines on outputs A and B.
The ASCII frame, the speed and the number of bauds are programmed on PC
using the software.
The default programming is periodic sending of a message to Bodet
switchboard 1 every second, at 9600 bauds, on 8 bits with no parity and 1 stop
bit, and the time is the local time dened in the Sigma.
Different transmission frames available :
Message content Example
Thursday October 9, 2008 at 15h 12m 30s
Standard 1 T:AA:MM:JJ:NJ:HH:MM:SS «x0D»
«x0A»
Start of message:
08:10:09:04:15:12:30 “end of frame”
Standard 2 «x02» 00 JdS JJ/MM/AA
HH:MM:SS «0D»
“Start of message” 00 Thu 09/10/08
15:12:30 “end of frame”
ZDA GPS
simulation
§GPZDA,HHMMSS,00,JJ,M-
M,AA,00,checksum,»x0D» «x0A»
“Start of ZDA GPS message”
151230,00,09,10,08,00,00*:6, “end of frame”
GGA GPS
simulation
§GPGGA,HHMMSS,00,code GGA,
,checksum,»x0D» «x0A»
“Start of GGA GPS message”
151230,00,
llll.ll,a,yyyyy.yy.a,1,xx,x.x,x.x,M,x.x,M,x.x,xxxx
70»end of frame»
Prog.
Your programming: see help button
.
T+ Tx
R+ Rx
T-
R- Output A
Output A programming DIP switches
RS232 RS422
T+ Tx
R+ Rx
T-
R- Output B
Output B programming DIP switches
RS232 RS422
