56

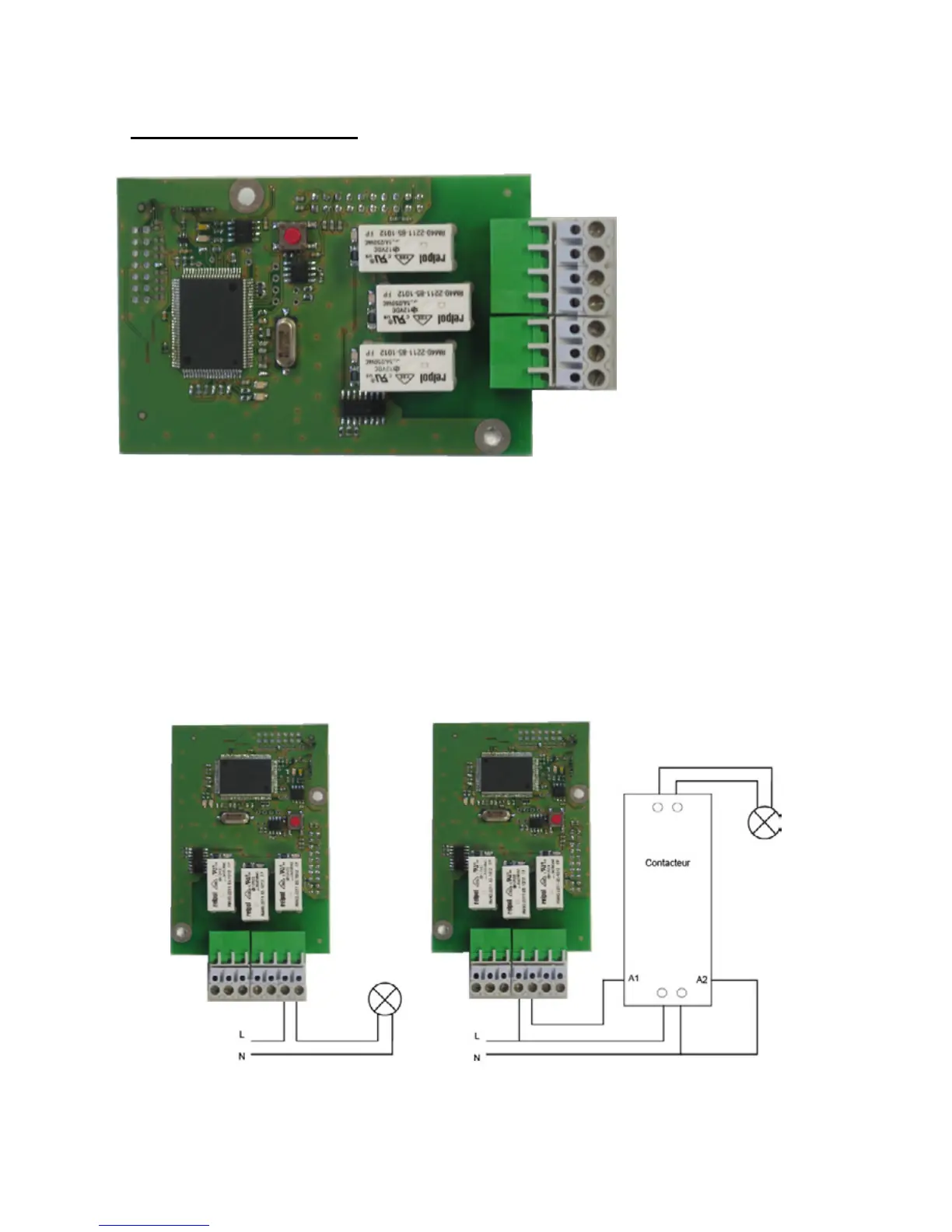

14.7 relay option board
This option board does not require any software programming.
It allows 3 relays to be added.
See the technician menu (circuit setting programming) on page 39.
Remark: in the time output management menu of the technician menu, “DEL”
mode is used only to uninstall the option board from the master clock.
Examples of wiring
C
T Circuit C1
C
T Circuit C2
C
R Circuit C3
T
