1 - Operating principle and technical features of the device
Setting force (min - max) (kN)
3.00 –> 22.00*
( * > 18kN with appropriate accessory)
Setting capacity
RIVKLE
®
M3 to M10*
RIVKLE
®
Stud M4 to M8
(*M10 with appropriate accessory set)
Maximum stroke
7.0 mm
Weight of the tool
2.1 kg
Weight of the battery (2,6Ah)
0.3 kg
Battery
Li-Ion / 14.4 V / 2.6 Ah
Environmental limitations of use
5°C - 40°C
Vibration
Vibration amplitude: 0.672 m/s²
IP degree of protection
20
Noise emission
Sound pressure level, LpA : 71.1 dB(A)
Sound power level, LwA : 82.1 dB(A)
Technical features
Setting force value
The recommended setting force is dependent on the combination of information coming from RIVKLE
®
parameters.
RIVKLE
®
parameters

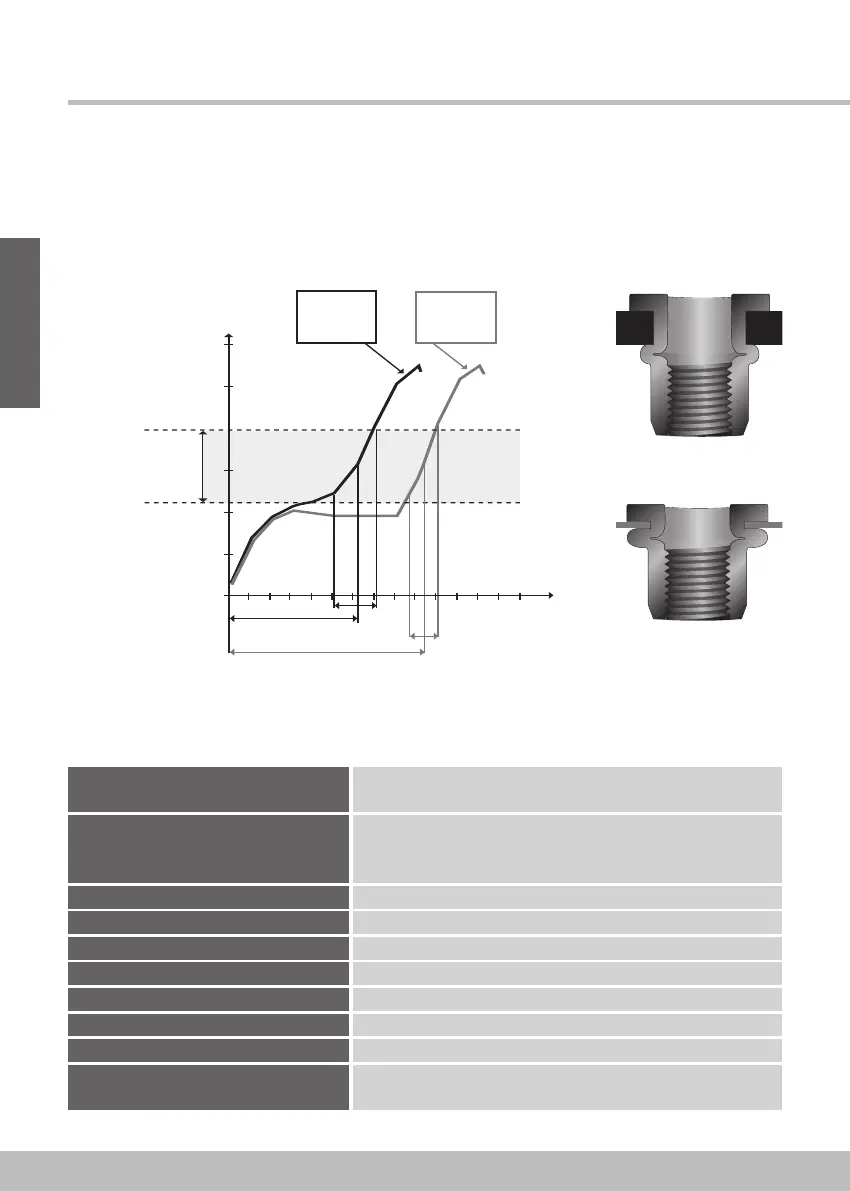

Maximum thickness (C1)
Minimum thickness (C2)
Setting effort range
= Force to obtain
a good setting
Force
Stroke
Tolerance
Stroke in
maximum thickness
Stroke in
minimum thickness
Tolerance
C1: setting
in maximum
thickness
C2: setting
in minimum
thickness
Minimum
Maximum
C1
C2
