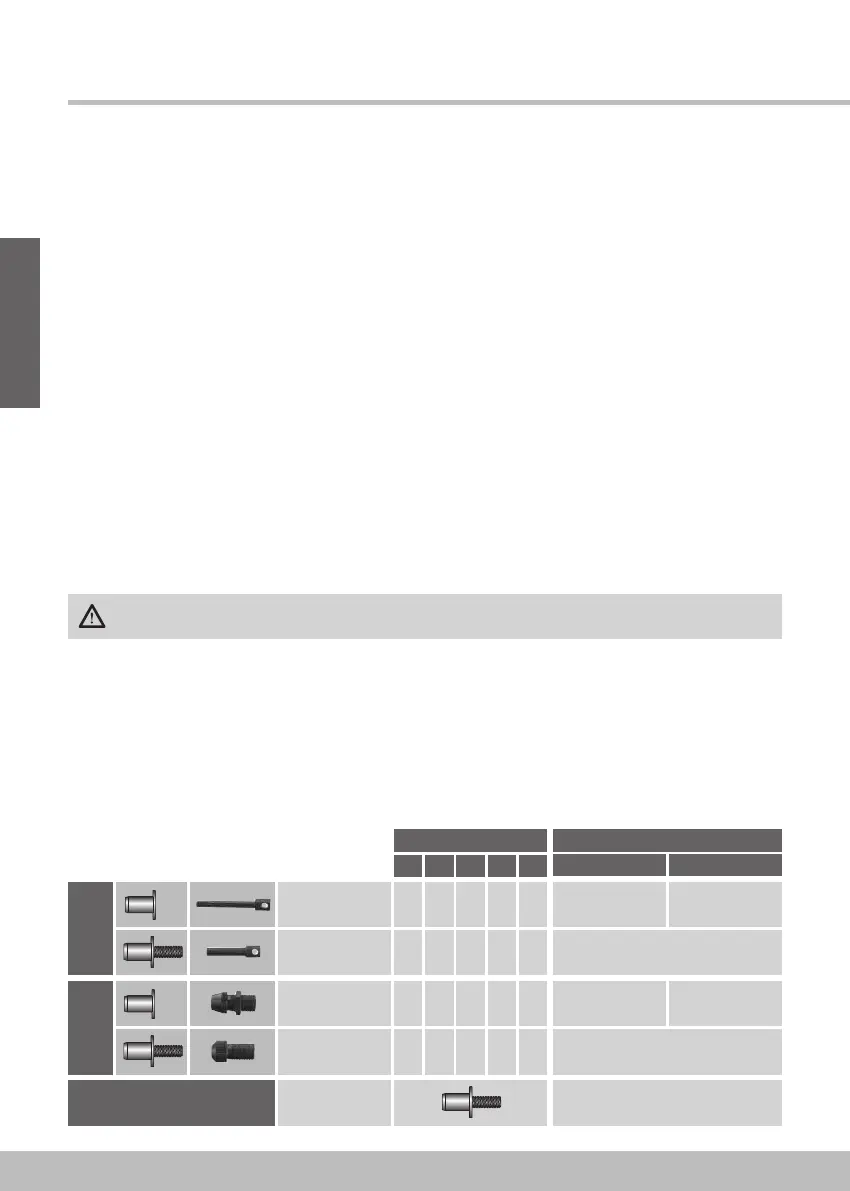

Assembling the device
34
English
2 - Preparation for use
SAFETY: BEFORE CARRYING OUT ANY INTERVENTION ON THE DEVICE, DISCONNECT
THE BATTERY
03 04 05 06 08
–
04 05 06 08
03 04 05 06 08
–
04 05 06 08
236 113 XX 020 236 913 08 110
376 113 XX 020
M3 M4
236 913 10 019
–
08 10
–
X
MandrelAnvil
236 113 XX 030
376 113 XX 030
236 166 00 303
236 166 00 304
Fork and nose for studs & force
>18 kN (M8 & M10) - Fig. 3
Fitting with special RIVKLE
®
mandrels
You have two assembly options:
• Fitting with special RIVKLE
®
mandrels (recommended by BÖLLHOFF for extended tool life)
• Fitting with standard capscrews
3
!
18 kN
M5 M6 M8
M8 M10
18
!
22 kN
Connection to the battery
The device is delivered with a 14.4 V / 2.6 Ah battery power supply.
To connect the battery to the tool:
• Take the tool
• With your other hand, take the battery so that the quick-release lever is facing downwards
• Insert the battery into place by sliding it upwards until the quick-release lever on the battery clicks.
It is required to use only the original battery to ensure proper operation of the device.
Charging the battery
• Store the battery charger in a cool and ventilated area.
• Plug the battery into the power outlet. SAFETY WARNING: make sure the power supply source is
compatible with the requirements indicated on the product plate.
• Insert the battery it in the battery charger keeping it parallel. Do not force the battery since it should slide
easily in place. Any possible difficulty may indicate an incorrect alignment.
